Class II Biological Safety Cabinet

ProductsBiological Safety CabinetClass II BSC › Airstream® Reliant Class II Type A2 Biosafety Cabinets

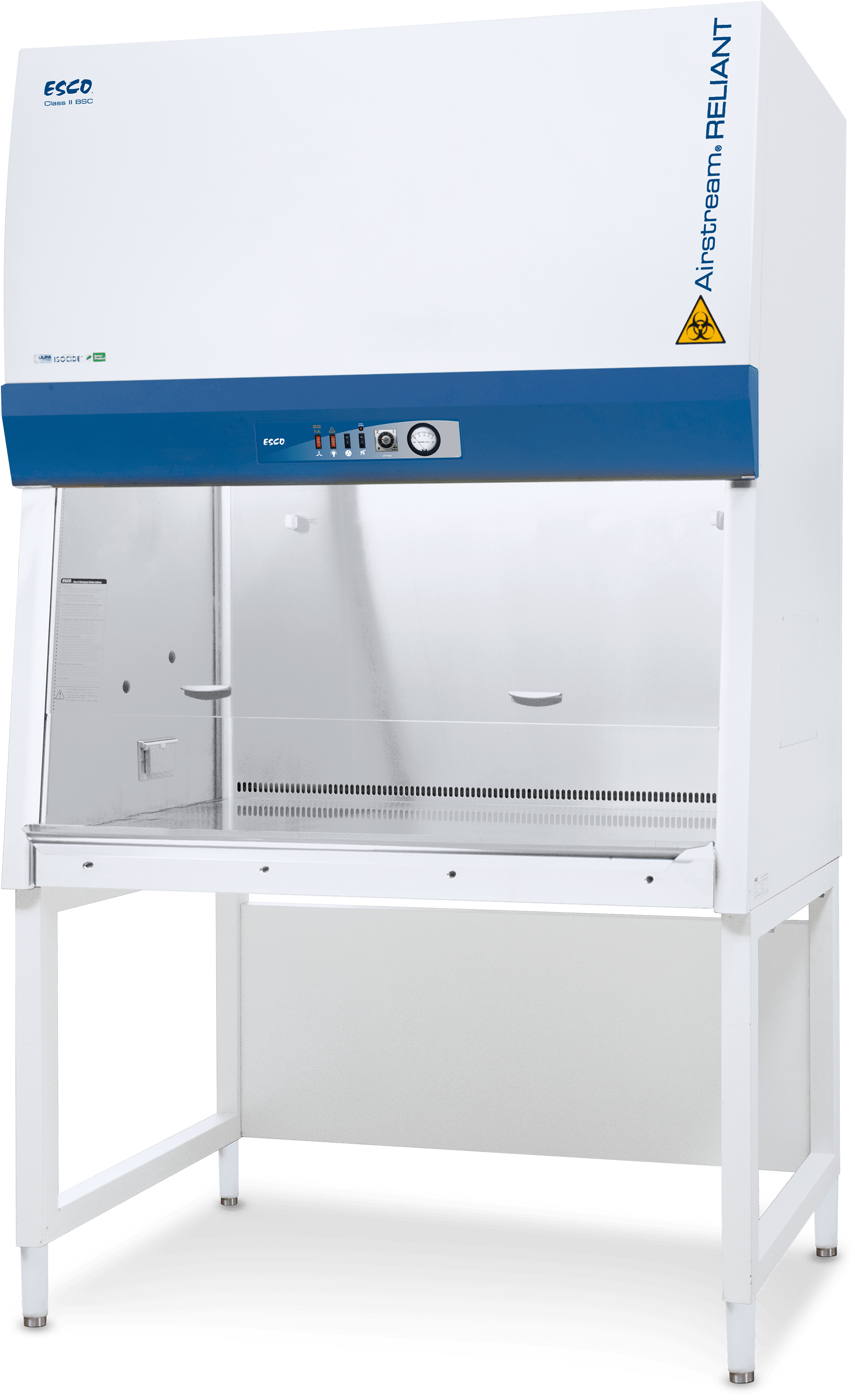

Airstream® Reliant Class II Type A2 Biosafety Cabinets

AR2-_S_

Airstream® Reliant Class II Type A2 Biosafety Cabinets

Airstream® Reliant Class II Type A2 Biosafety Cabinets (AR2) is designed with energy efficiency, robustness, comfort and ergonomics. This cabinet uses ULPA (Ultra Low Penetration Air) filters which operate at a typical efficiency of 99.999% which is ten times the contamination protection over conventional HEPA filters. It also provides operator comfort through its raised arm rest which helps prevents grille blocking while providing operators with comfortable working position.

*Only available for USA.

Features

Rocker Switches and Pressure Gauge

  • Easy to use switches
  • Displays filter loading status
  • Manually adjustable UV timer

DC-ECM Blower

  • Energy-efficient with 70% energy savings compared to AC motor

ULPA Filter

  • 10 x filtration efficiency compared to HEPA filter
  • 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA or >99.999%

Adjustable UV Timer

  • Easily adjustable to desired minutes or hours
  • Prolongs UV lamp life, for not turning it ON overnight

Cabinet construction

  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Easy to reach service fixtures
  • Single-piece work tray, spill retaining and easy to clean

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
110-120 VAC, 50/60 Hz
2010982AR2-3S9Airstream® Reliant, Class II, Biological Safety Cabinet (S-Series), 3ft/0.9m
2010753AR2-4S9Airstream® Reliant, Class II, Biological Safety Cabinet (S-Series), 4ft/1.2m
2010984AR2-5S9Airstream® Reliant, Class II, Biological Safety Cabinet (S-Series), 5ft/1.5m
2010986AR2-6S9Airstream® Reliant, Class II,, Biological Safety Cabinet (S-Series), 6ft/1.8m

Accessories

Item CodeModel CodeDescription
5170251UV-15AUV Lamp for 2ft, 3ft Cabinets and AC3-4B
5170255UV-30AUV Lamp for 4ft, 5ft, 6ft Cabinets except AC3-4B
Service Fixtures
5170410SF-1G20European Style Service Fixture with 20mm Thread Length - Gas
5170457SF-1V20European Style Service Fixture with 20mm Thread Length - Vacuum
5170503SF-1N20European Style Service Fixture with 20mm Thread Length - Nitrogen
5170502SF-1A20European Style Service Fixture with 20mm Thread Length - Air
5170458SF-1W20European Style Service Fixture with 20mm Thread Length - Water
5170504SF-2U22American Style Service Fixture with 22mm Thread Length - Universal
5170026CU-PipeCopper Piping for Service Fixture - Must be Factory Installed
Support Stands
SPC-_A0 Gen2Support Stand with Caster Wheels (Height 28”)
SPC-_B0 Gen 2Support Stand with Caster Wheels (Height 34”)
SAL-_A0 Gen 2Support Stand with Leveling Feet - I (Height 28”)
SAL-_B0 Gen 2Support Stand with Leveling Feet - I (Height 34”)
IV Bars
5170499IV-910IV Bar 910mm
5170231IV-1215IV Bar 1215mm
5170500IV-1520IV Bar 1520mm
5170501IV-1825IV Bar 1825mm
Pre-Filters
5090061PF-41Prefilter, 895x125x6mm, AC2-3ft
5090062PF-42Prefilter, 1200x125x6mm, AC2-4ft
5090063PF-43Prefilter, 1505x125x6mm, AC2-5ft
5090064PF-44Prefilter, 1810x125x6mm, AC2-6ft
VHP Ports
5170552VHP-IN PORTVHP Port (In)
VHP Out Port (for cabinet with exhaust collar installed)
5170684VHP-ECO/OUT 3ftVHP Port (Out) 3ft
5170615VHP-ECO/OUT 4ftVHP Port (Out) 4ft
5170616VHP-ECO/OUT 5ftVHP Port (Out) 5ft
5170617VHP-ECO/OUT 6ftVHP Port (Out) 6ft
VHP Out Top Box (for cabinet without exhaust collar installed)
5170685VHP-OUT TOP BOX 3ftVHP Top Box (Out) 3ft
5170612VHP-OUT TOP BOX 4ftVHP Top Box (Out) 4ft
5170613VHP-OUT TOP BOX 5ftVHP Top Box (Out) 5ft
5170614VHP-OUT TOP BOX 6ftVHP Top Box (Out) 6ft
