Class II Biological Safety Cabinet

ProductsClass II Biological Safety Cabinet › Labculture® Reliant Class II Type A2 Biosafety Cabinets

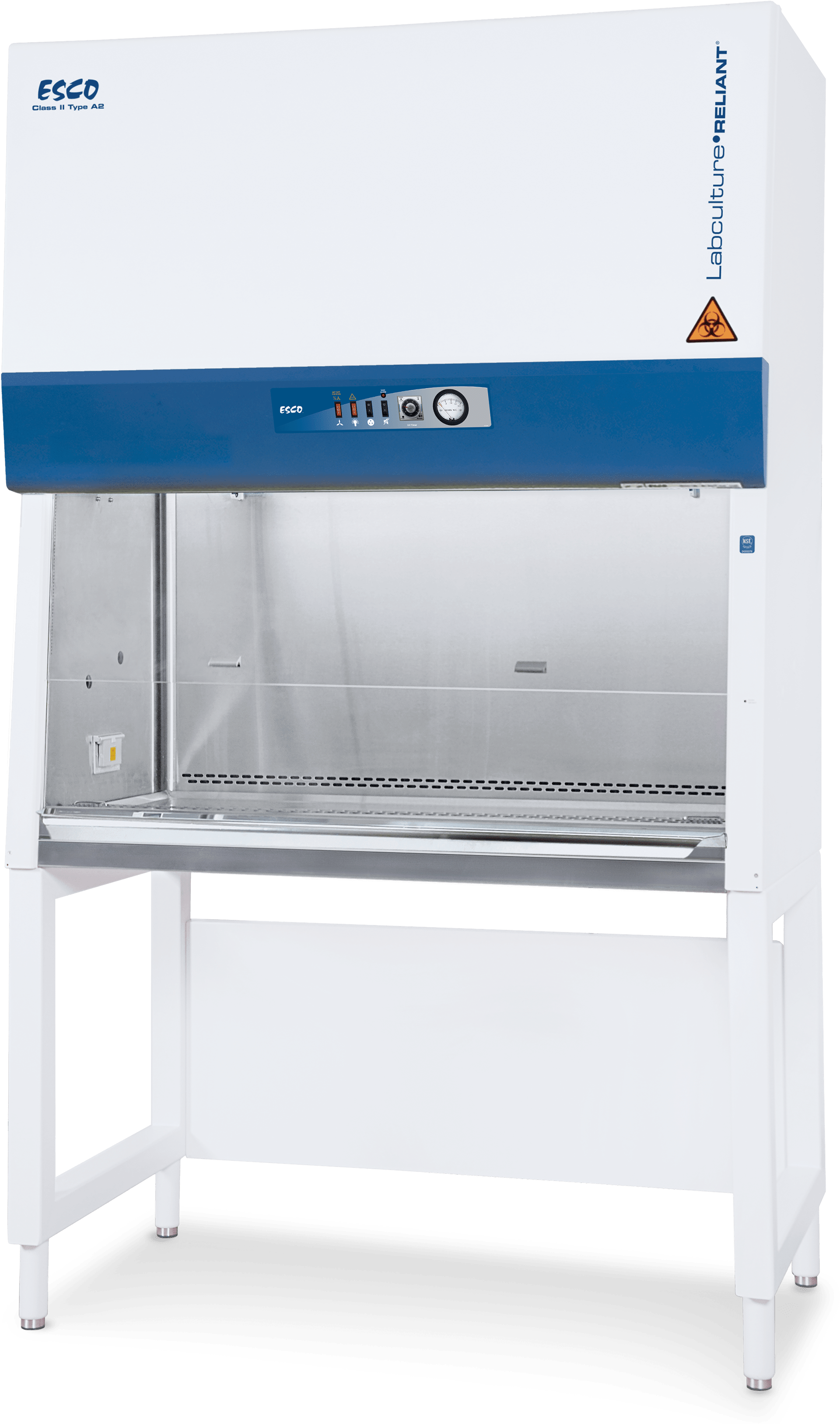

Labculture® Reliant Class II Type A2 Biosafety Cabinets

LR2-S

Labculture® Reliant Class II Type A2 Biosafety Cabinets

Labculture® Reliant Class II Type A2 Biosafety Cabinets (LR2) offers operator protection and provides a sterile environment for important specimens. The LR2 E-Series blend the best in performance and simplicity, with market-leading feature sets, quality, ergonomics and value.

*Only available for USA.

Features

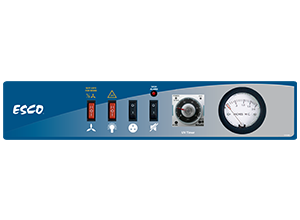

Rocker Switches and Pressure Gauge

  • Easy to use switches
  • Displays filter loading status
  • Manually adjustable UV timer

DC-ECM Blower

  • Energy-efficient with 70% energy savings compared to AC motor

ULPA Filter

  • 10 x filtration efficiency compared to HEPA filter
  • 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA or >99.999%

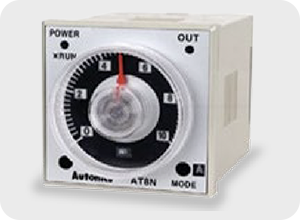

Adjustable UV Timer

  • Easily adjustable to desired minutes or hours
  • Prolongs UV lamp life, for not turning it ON overnight

Cabinet construction

  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Easy to reach service fixtures
  • Single-piece work tray, spill retaining and easy to clean

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
110-120 VAC, 50/60 Hz
2010701LR2-3S9Labculture® Reliant, Class II, Biological Safety Cabinet (S-Series), 3ft/0.9m
2010702LR2-4S9Labculture® Reliant, Class II, Biological Safety Cabinet (S-Series), 4ft/1.2m
2010703LR2-5S9Labculture® Reliant, Class II, Biological Safety Cabinet (S-Series), 5ft/1.5m
2010704LR2-6S9Labculture® Reliant, Class II,, Biological Safety Cabinet (S-Series), 6ft/1.8m

Accessories

Item CodeModel CodeDescription
5170251UV-15AUV Lamp for 2ft, 3ft Cabinets and AC3-4B
5170255UV-30AUV Lamp for 4ft, 5ft, 6ft Cabinets except AC3-4B
Service Fixtures
5170410SF-1G20European Style Service Fixture with 20mm Thread Length - Gas
5170457SF-1V20European Style Service Fixture with 20mm Thread Length - Vacuum
5170503SF-1N20European Style Service Fixture with 20mm Thread Length - Nitrogen
5170502SF-1A20European Style Service Fixture with 20mm Thread Length - Air
5170458SF-1W20European Style Service Fixture with 20mm Thread Length - Water
5170504SF-2U22American Style Service Fixture with 22mm Thread Length - Universal
5170026CU-PipeCopper Piping for Service Fixture - Must be Factory Installed
Support Stands
SPC-_A0 Gen2Support Stand with Caster Wheels (Height 28”)
SPC-_B0 Gen 2Support Stand with Caster Wheels (Height 34”)
SAL-_A0 Gen 2Support Stand with Leveling Feet - I (Height 28”)
SAL-_B0 Gen 2Support Stand with Leveling Feet - I (Height 34”)
IV Bars
5170499IV-910IV Bar 910mm
5170231IV-1215IV Bar 1215mm
5170500IV-1520IV Bar 1520mm
5170501IV-1825IV Bar 1825mm
Pre-Filters
5090061PF-41Prefilter, 895x125x6mm, AC2-3ft
5090062PF-42Prefilter, 1200x125x6mm, AC2-4ft
5090063PF-43Prefilter, 1505x125x6mm, AC2-5ft
5090064PF-44Prefilter, 1810x125x6mm, AC2-6ft
VHP Ports
5170552VHP-IN PORTVHP Port (In)
VHP Out Port (for cabinet with exhaust collar installed)
5170684VHP-ECO/OUT 3ftVHP Port (Out) 3ft
5170615VHP-ECO/OUT 4ftVHP Port (Out) 4ft
5170616VHP-ECO/OUT 5ftVHP Port (Out) 5ft
5170617VHP-ECO/OUT 6ftVHP Port (Out) 6ft
VHP Out Top Box (for cabinet without exhaust collar installed)
5170685VHP-OUT TOP BOX 3ftVHP Top Box (Out) 3ft
5170612VHP-OUT TOP BOX 4ftVHP Top Box (Out) 4ft
5170613VHP-OUT TOP BOX 5ftVHP Top Box (Out) 5ft
5170614VHP-OUT TOP BOX 6ftVHP Top Box (Out) 6ft

Certificates
