VA2-S G4

VIVA^® Animal Research Workstation

The new VA2 G4 with Centurion Touchscreen controller is NSF-certified and available in 12-inch opening model for mouse and rat cages, with standby height that easily activates standby mode.

VIVA® G4 (VA2 G4) is comprised of bright illumination using industry-leading dimmable LED combined with an ergonomically sloped front design. VIVA® G4 Universal Workstation is specifically devised for optimum work comfort making it a complete solution to your need for ergonomics, reinforced safety and operations efficiency in animal handling operations.

Request for Quote Online Product Form

Features

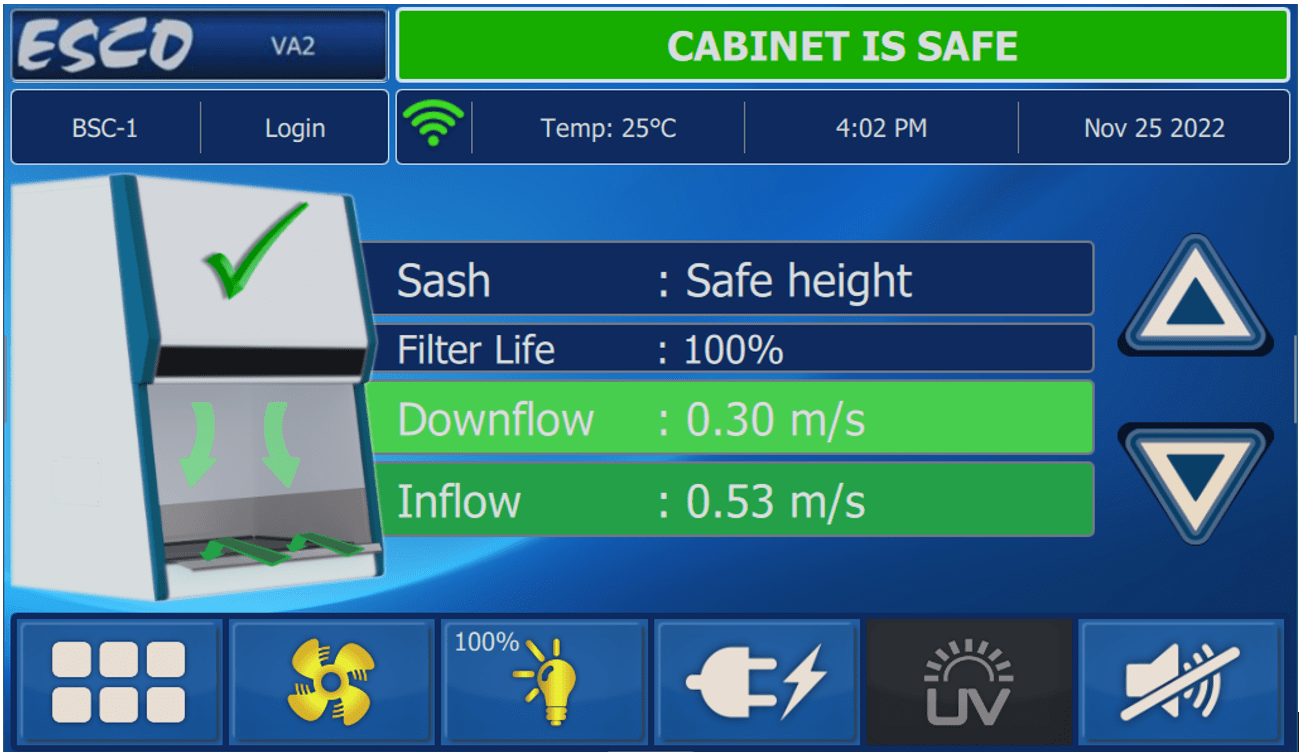

	Centurion Touchscreen Controller Intuitive, comprehensive, and easy-to-understand Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram Defined details of alarm types with clear instructions for proper intervention Centered and angled down for easy reach & viewing Selectable Quickstart mode for fast operation
	Dimmable LED Adjustable work zone brightness Ideal light intensity of 1000 lux Saves energy and optimizes work comfort

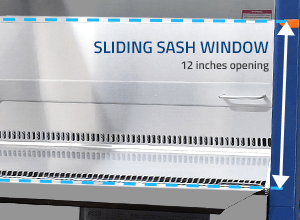

	Ergonomic Sash 12” sash opening for mouse and rat cages Frameless, shatterproof, and UV-absorbing tempered glass
	Tray support beams and holder Support beams for less vibration and holder for easy drain pan cleaning
	USB Port and Remote Modbus USB port to access cabinet data log and BMS connectivity Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.
	Cabinet Construction Stainless steel side walls with side capture zones and negative pressure to optimize containment Single-piece work tray, spill retaining and easy to clean
	Green Product Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor Extremely low energy consumption Standby mode allows reduced power consumption by 80%
	ULPA Filter 10x filtration efficiency compared to the HEPA filter Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5 Same 10 years filter life and replacement cost as HEPA filters 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA >99.999% at MPPS, H14 as per EN 1822 EU
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

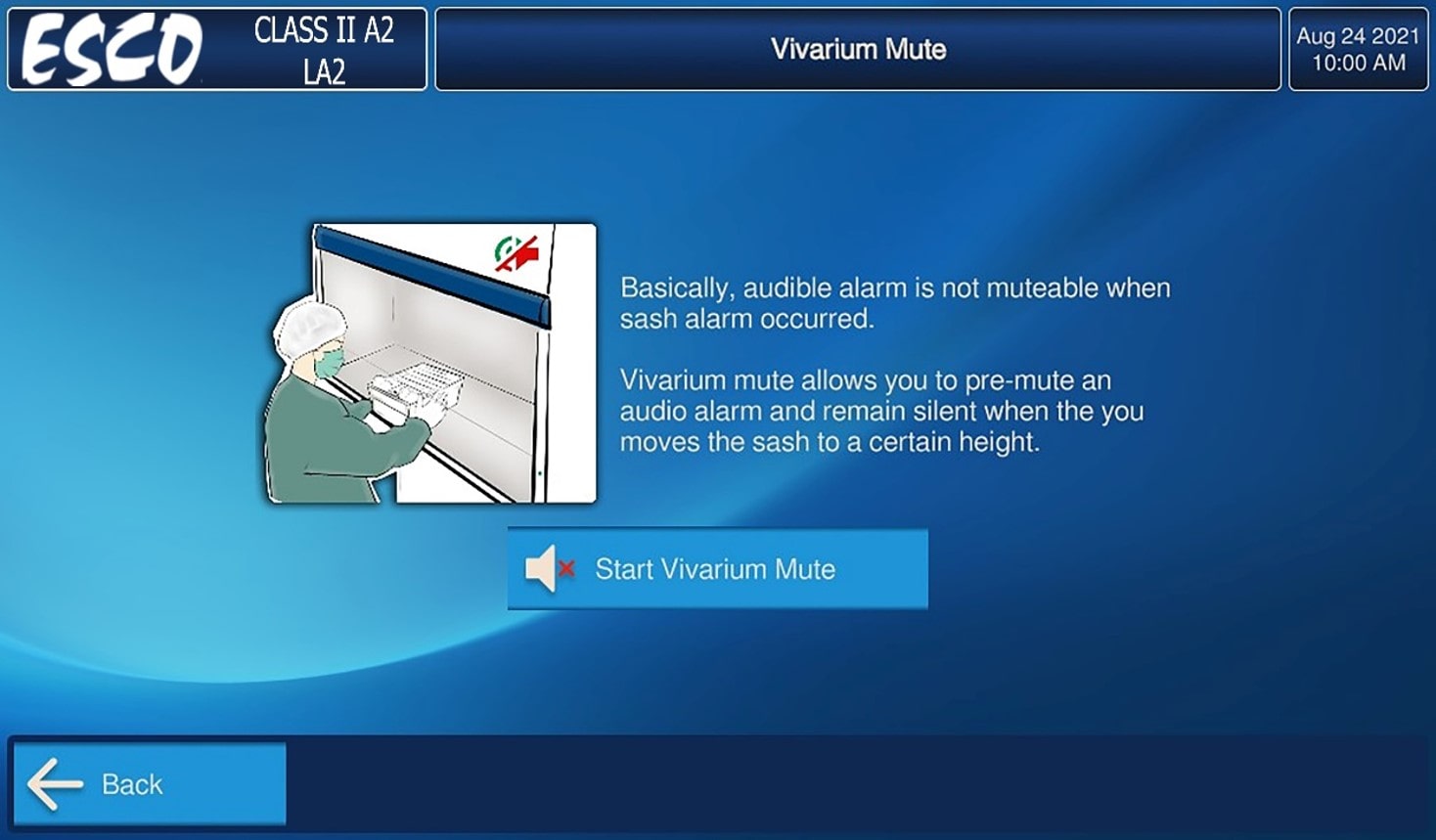

	Vivarium mute Allows users to mute the sash unsafe alarm during large equipment loading such as a rat cage.

Models

Item Code	Model Code	Description
220-240 VAC, 50/60 Hz
2011861	VA2-4S8 G4 12"	VIVA® G4 Class II Type A2 Animal BSC, 4 ft/ 1.2m
2011863	VA2-5S8 G4 12"	VIVA® G4 Class II Type A2 Animal BSC, 5 ft/ 1.5m
2011865	VA2-6S8 G4 12"	VIVA® G4 Class II Type A2 Animal BSC, 6 ft/ 1.8m
110-130 VAC, 50/60 Hz
2011862	VA2-4S9 G4 12"	VIVA® G4 Class II Type A2 Animal BSC, 4 ft/ 1.2m
2011864	VA2-5S9 G4 12"	VIVA® G4 Class II Type A2 Animal BSC, 5 ft/ 1.5m
2011866	VA2-6S9 G4 12"	VIVA® G4 Class II Type A2 Animal BSC, 6 ft/ 1.8m

Accessories

Item Code	Model Code	Description
5170255	UV-30A-L	UV Lamp for 4ft, 5ft, 6ft Cabinets
5170071	EO-GFCI	GFCI Outlet x 2
	EO _	Electrical Outlet (Direct Mounted) x 2
IV Bars
5170231	IV-1215	IV Bar 1215 mm
5170500	IV-1520	IV Bar 1520 mm
5170501	IV-1825	IV Bar 1825 mm
Support Stands
5131341	STA-4A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets
5131427	STA-5A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 5ft cabinets
5131389	STA-6A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets
220-240 VAC 12” Piston
5131446	SLC-4A1-12 G4	Support Stand w/ Castors Cradle with 12” Piston for 4ft cabinets
5131583	SLC-5A1-12 G4	Support Stand w/ Castors Cradle with 12” Piston for 5ft cabinets
5131495	SLC-6A1-12 G4	Support Stand w/ Castors Cradle with 12” Piston for 6ft cabinets
220-240 VAC 20” Piston
5131494	SLC-4A1-20 G4	Support Stand w/ Castors Cradle with 20” Piston for 4ft cabinets
5131584	SLC-5A1-20 G4	Support Stand w/ Castors Cradle with 20” Piston for 5ft cabinets
5131496	SLC-6A1-20 G4	Support Stand w/ Castors Cradle with 20” Piston for 6ft cabinets
110-130 VAC 12” Piston
5131437	SLC-4A2-12 G4	Support Stand w/ Castors Cradle with 12” Piston for 4ft cabinets
5131445	SLC-5A2-12 G4	Support Stand w/ Castors Cradle with 12” Piston for 5ft cabinets
5131438	SLC-6A2-12 G4	Support Stand w/ Castors Cradle with 12” Piston for 6ft cabinets
110-130 VAC 20” Piston
5131441	SLC-4A2-20 G4	Support Stand w/ Castors Cradle with 20” Piston for 4ft cabinets
5131447	SLC-5A2-20 G4	Support Stand w/ Castors Cradle with 20” Piston for 5ft cabinets
5131440	SLC-6A2-20 G4	Support Stand w/ Castors Cradle with 20” Piston for 6ft cabinets
Service Fixtures
5170410	SF-1G20	European Style Service Fixture with 20mm Thread Length - Gas
5170457	SF-1V20	European Style Service Fixture with 20mm Thread Length - Vacuum
5170502	SF-1A20	European Style Service Fixture with 20mm Thread Length - Air
5170503	SF-1N20	European Style Service Fixture with 20mm Thread Length - Nitrogen
5170458	SF-1W20	European Style Service Fixture with 20mm Thread Length - Water
5170504	SF-2U22	American Style Service Fixture with 22mm Thread Length - Universal
Exhaust Collars
5171098	ECO-FLAP-LA2/AC2-4 G4	Thimble Exhaust Collar for LA2-4-G4
5171099	ECO-FLAP-LA2/AC2-5 G4	Thimble Exhaust Collar for LA2-5-G4
5171100	ECO-FLAP-LA2/AC2-6 G4	Thimble Exhaust Collar for LA2-6-G4
Exhaust Accessories
5170129	ABBV-10P	Anti Blowback Valve 10 inches
5170354	ABBV-10S	Anti-blowback Valve 10 inches (304 Stainless Steel)
5170104	B2-DAMPER	Manual Volumetric Exhaust Damper
Others
5170127	MEWREST	Arm Rest Padding
5170073	FT-REST	Foot Rest
5142493	DRAINVALVE KIT G4	For LA2/AC2-NS/LB2/LR2/VA2/AR2 G4
9010179		IQ/OQ Protocol
