VIVA® Universal Animal Workstations

VA2-_A_-E

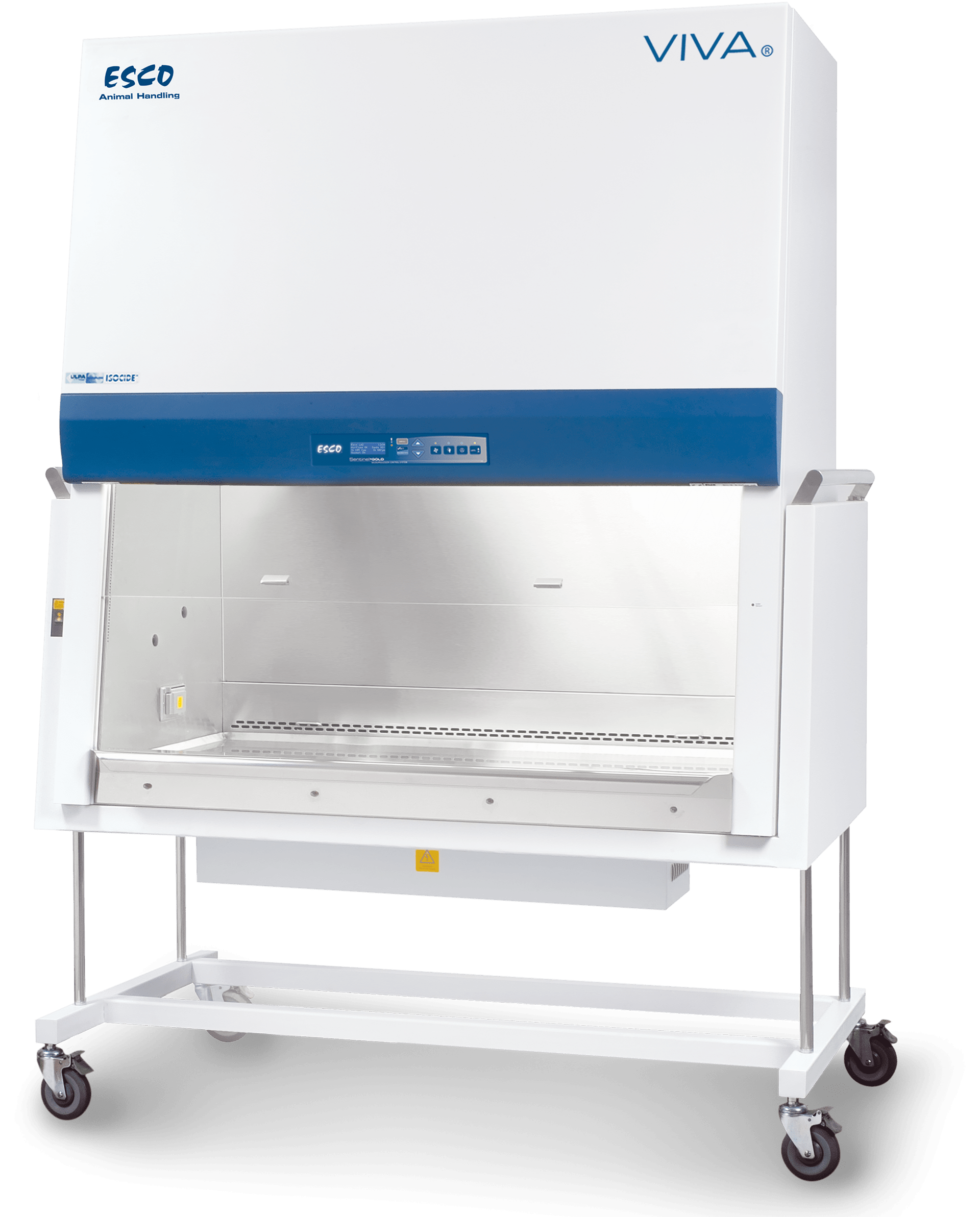

VIVA® Universal Animal Workstation

Esco VIVA® Universal Workstation (VA2) employs two independently balanced ULPA filtration modules to protect animals inside the workzone from exposure to airborne particulates/ambient contamination. As well as, the operator from exposure to allergens and other potentially hazardous materials. It employs an airflow recirculating design comparable to a Class II Type A2 Biosafety Cabinet.

Featuring an ergonomically sloped front design and integrated carbon filters to remove odors emitted, the VIVA® Universal Workstation ensures the comfort of the operator. This workstation is a complete solution to your need for ergonomics, reinforced safety and operations efficiency in animal handling operations.

Features

Sentinel™ Gold Microprocessor Controller

  • Displays basic parameters and safety information on one screen
  • Centered and angled down for easy reach and viewing

ULPA Filter

  • 10x filtration efficiency compared to HEPA filter

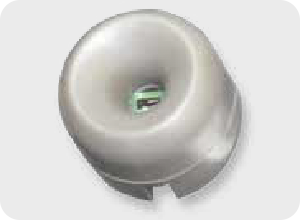

Airflow Sensor

  • Monitors real-time airflow for safety
  • Alerts the user if airflow is insufficient

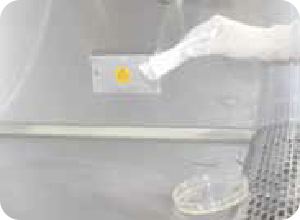

Single-Piece Wall and Worktray

  • Large radius for easy cleaning
  • Recessed to contain spillage
  • Curved grill to prevent blockage

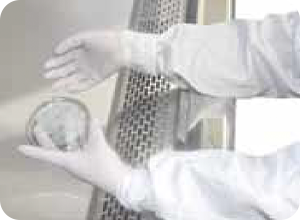

Raised Arm Rest

  • Helps prevent grille blocking
  • Comfortable working posture

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
2080029VA2-4A1-E VIVA® Universal Animal Containment Workstation, 4ft/1.2m, 220-240 VAC, 50 Hz
2080030VA2-4A2-E VIVA® Universal Animal Containment Workstation, 4ft/1.2m, 110-120 VAC, 60 Hz
2080031VA2-4A3-E VIVA® Universal Animal Containment Workstation, 4ft/1.2m, 220-240 VAC, 60 Hz
2080032VA2-6A1-E VIVA® Universal Animal Containment Workstation , 6ft/1.8m, 220- 240 VAC, 50 Hz
2080033VA2-6A2-E VIVA® Universal Animal Containment Workstation , 6ft/1.8m, 110-120 VAC, 60 Hz
2080034VA2-6A3-E VIVA® Universal Animal Containment Workstation , 6ft/1.8m, 220-240 VAC, 60 Hz

Accessories

Item CodeModel CodeDescription
5130069SLC-4A1Cradle Type Support Stand for 4ft VA2
5130070SLC-6A1Cradle Type Support Stand for 6ft VA2
5170255UV-30AUV Lamp for 4ft, 5ft, 6ft Cabinets except AC3-4B
EOElectrical Outlet
5170277IV-1260IV Bar 1260mm
5170459IV-1860IV Bar 1860mm
5170002SF-1G40European Style Service Fixture with 40mm Thread Length - Gas
5170003SF-1V40European Style Service Fixture with 40mm Thread Length - Vacuum
5170011SF-1N40European Style Service Fixture with 40mm Thread Length - Nitrogen
5170006SF-1A40European Style Service Fixture with 40mm Thread Length - Air
5170017SF-1W40European Style Service Fixture with 40mm Thread Length - Water
5170018SF-2U40American Style Service Fixture with 40mm Thread Length - Universal
5170026CU-PipeCopper Piping for Service Fixture - Must be Factory Installed
