Laboratory Incubator

ProductsLaboratory Incubator › Isotherm® Natural Convection Lab Incubator

Lab Incubator

INA-_-_

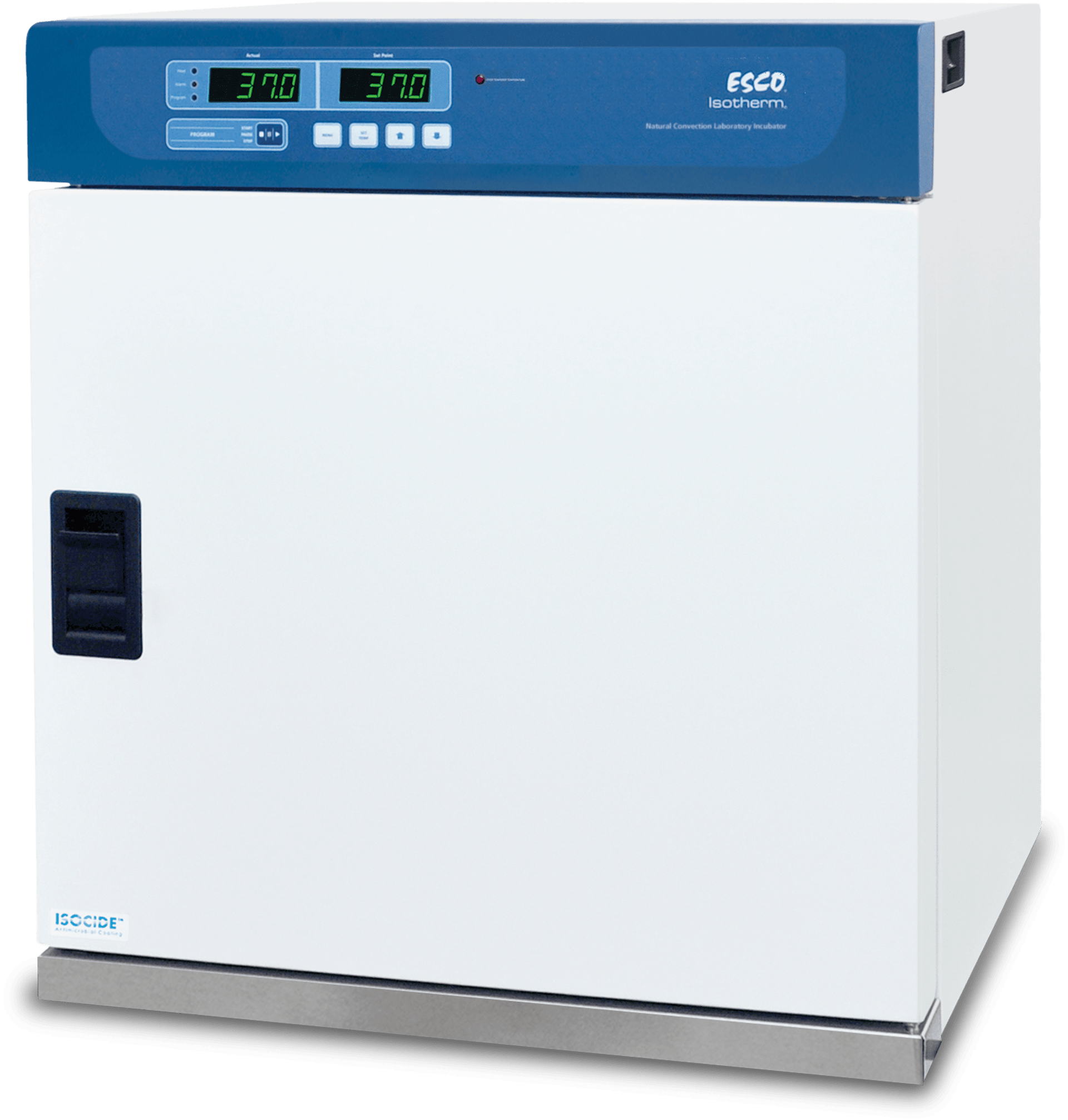

Isotherm® Natural Convection Lab Incubator

Natural convection laboratory incubators are also known as gravitational or free convection incubators. They are used in thermal convection applications. The temperature range is ambient +7.5°C to 100°C. Because it has no mechanical fan, it provides a quiet and steady environment to applications requiring minimal disturbances to the items being cultured such as bacteria, yeast, and molds among many others.

Esco Isotherm® natural convection laboratory incubator is built with reliable performance and standards. Ergonomic, intuitive interfaces, microprocessor PID controls with programming options, 4-zone heated air jacket, precisely tuned and tested ventilation and insulation package, all supported by Esco's solutions-based sales and service representatives worldwide.

Applications:
  • Coliform Determination
  • Egg Incubation
  • Food and Beverage Testing
  • Gene Cloning
  • Heated Storage
  • Pharmaceutical Stability Testing
  • Microbiological culture
  • Paraffin Embedding

Features

Pre-heat Chamber Technology

  • Ensures stable heating and maximum temperature uniformity in the chamber

SmartSense™ Microprocessor PID Control Technology

  • Twin temperature display for easy monitoring
  • Connected to an instrument-grade precision platinum temperature probe

Easy-to-Clean

  • Minimal joints and crevices
  • Single piece stainless steel chamber with rounded corners
  • Directly mounted shelves

Accessible via Software

  • Remote monitoring, data logging, and programming
  • RS-485 communication protocol

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
2100045INA-32-8Isotherm® Natural Convection Incubator, 32 L, 220-240 VAC, 50/60 Hz
2100046INA-54-8Isotherm® Natural Convection Incubator, 54 L, 220-240 VAC, 50/60 Hz
2100044INA-110-8Isotherm® Natural Convection Incubator, 110 L, 220-240 VAC, 50/60 Hz
2100047INA-170-8Isotherm® Natural Convection Incubator, 170 L, 220-240 VAC, 50/60 Hz
2100048INA-240-8Isotherm® Natural Convection Incubator, 240 L, 220-240 VAC, 50/60 Hz

Accessories

Item CodeModel CodeDescription
5070326TOA-1005Wall bracket for 32 L
5070327TOA-1006Wall bracket for 54 L
5130106TOA-1007Support stand, 715mm (28") for 32 L
5130107TOA-1008Support stand, 715mm (28") for 54 L
5130108TOA-1009Support stand, 715mm (28") for 110 L
5130141TOA-1010Support stand, 715mm (28") for 170 L
5130110TOA-1017Support stand, 715mm (28") for 240 L
5070328TOA-1012Additional shelves for 32 L
5070329TOA-1013Additional shelves for 54 L
5070330TOA-1014Additional shelves for 110 L
5070331TOA-1018Additional shelves for 170 L
5070332TOA-1019Additional shelves for 240 L
52500015250001-UVoyager® Software Kit with iRMAP (Intelligent Remote Monitoring Application Protocol)
5070333TOA-1015RS-485 Communication Port
5070612TOA-1023IQ/OQ Document
