Laminar Flow Cabinet

ProductsLaminar Flow Cabinet › OptiMair™ Vertical Laminar Flow Cabinet

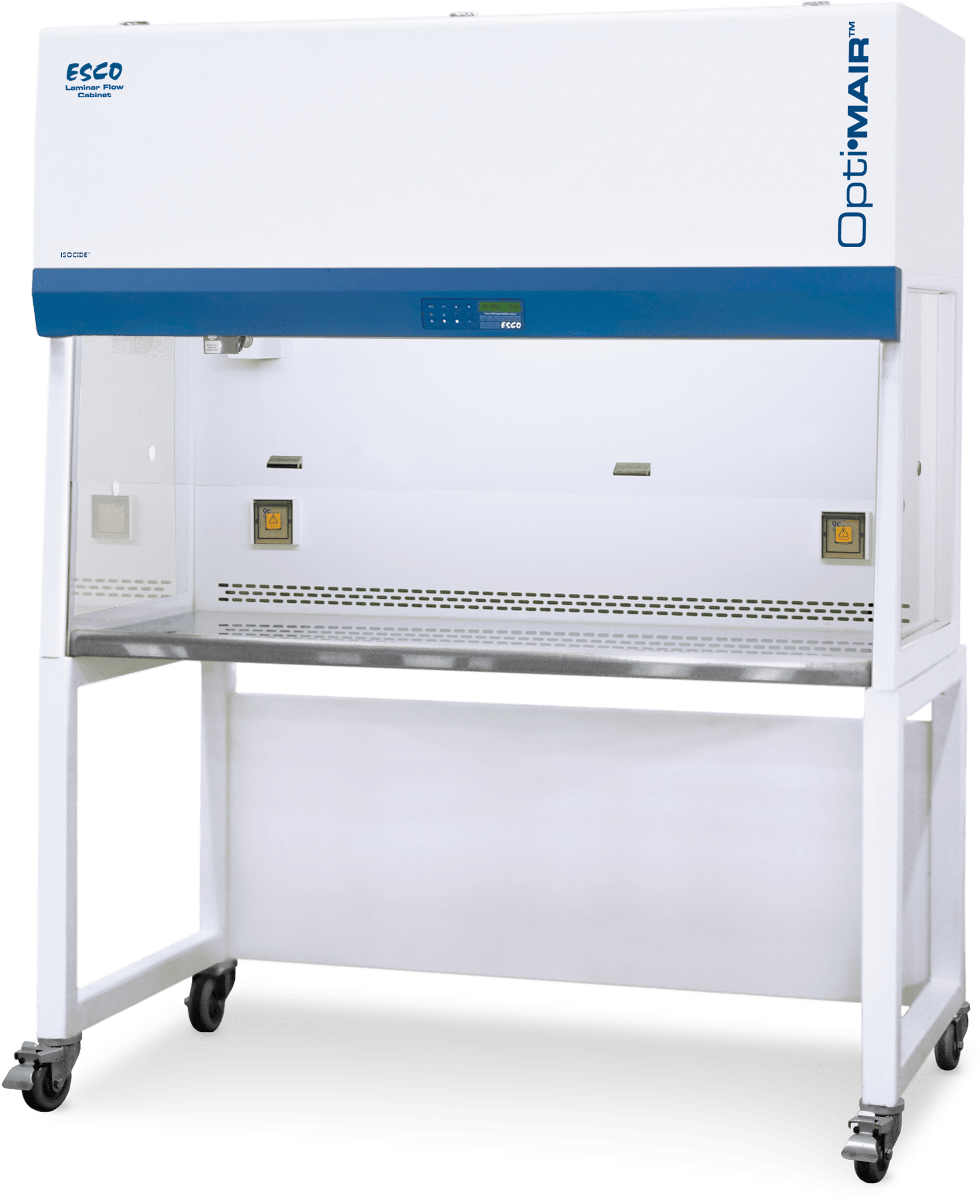

OptiMair™ Vertical Laminar Flow Cabinet

ACB-_E_

OptiMair™ Vertical Laminar Flow Cabinet

A vertical laminar flow cabinet is useful when product protection from contaminants is required. All components are designed for maximum corrosion and enhanced durability for long service life.

OptiMair™ Vertical Laminar Flow Cabinet has a main body made of industrial-grade electro-galvanized steel. It also has a one-piece formed stainless steel work surface with a curved front edge designed for maximum operator comfort.

All Esco products are manufactured for the most demanding laboratory applications that include:

  • Mycology
  • Microbiology
  • Plant and mammalian cell culture
  • Clinical pharmacy and hospital protocols
  • Cleanrooms
  • Semiconductor assembly
  • Pharmaceutical
  • Aerospace
  • Medical devices industries

Features

Sentinel™ Silver Microprocessor Control system

  • Displays basic parameters such as airflow on one screen
  • Has audible and visual alarms

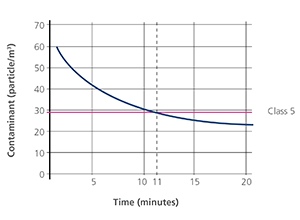

Contamination Control

  • ULPA filtration ISO class 3 air quality
  • Additional disposable pre-filter

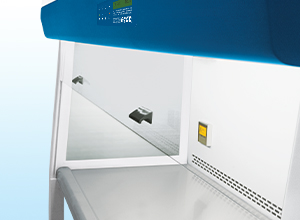

Robust Construction

  • Raised at the front edge to contain any accidental liquid spills
  • One piece formed stainless steel work surface
  • Sliding sash with ergonomic handle

High-Quality Components

  • German made ebm-papst® permanently lubricated motor fan
  • Provides a smooth, quiet, and vibration free operation
  • Stable and self-compensating airflow

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
2120765ACB-4E1OptiMair™ Vertical Laminar Flow Cabinet, 4ft/1.2m, 230 VAC, 50 Hz
2120781ACB-4E2OptiMair™ Vertical Laminar Flow Cabinet, 4ft/1.2m, 115 VAC, 50/60 Hz
2120778ACB-4E3OptiMair™ Vertical Laminar Flow Cabinet, 4ft/1.2m, 230 VAC, 60 Hz
2120769ACB-6E1OptiMair™ Vertical Laminar Flow Cabinet, 6ft/1.8m, 230 VAC, 50 Hz
2120782ACB-6E2OptiMair™ Vertical Laminar Flow Cabinet, 6ft/1.8m, 115 VAC, 50/60 Hz
2120780ACB-6E3OptiMair™ Vertical Laminar Flow Cabinet, 6ft/1.8m, 230 VAC, 60 Hz

Accessories

Item CodeModel CodeDescription
5170255UV-30AUV Lamp for 4ft, 5ft, 6ft Cabinets except AC3-4B
5170015SF-1G59European Style Service Fixture with 50mm Thread Length - Gas
5170004SF-1V50European Style Service Fixture with 50mm Thread Length - Vacuum
5170012SF-1N50European Style Service Fixture with 50mm Thread Length - Nitrogen
5170007SF-1A50European Style Service Fixture with 50mm Thread Length - Air
5170009SF-1W50European Style Service Fixture with 50mm Thread Length - Water
5170019SF-2U50American Style Service Fixture with 50mm Thread Length - Universal
5170026CU-PipeCopper Piping for Service Fixture - Must be Factory Installed
5131346SPC-4E0Support Stand with Caster Wheels (Height 28”) for 4ft cabinets
5131347SPC-6E0Support Stand with Caster Wheels (Height 28”) for 6ft cabinets
5131355SPC-4F0Support Stand with Caster Wheels (Height 34”) for 4ft cabinets
5131356SPC-6F0Support Stand with Caster Wheels (Height 34”) for 6ft cabinets
5131349SAL-4E0Support Stand with Leveling Feet - I (Height 28”) for 4ft cabinets
5131350SAL-6E0Support Stand with Leveling Feet - I (Height 28”) for 6ft cabinets
5131352SAL-4F0Support Stand with Leveling Feet - I (Height 34”) for 4ft cabinets
5131353SAL-6F0Support Stand with Leveling Feet - I (Height 34”) for 6ft cabinets
