Laminar Flow Cabinet

› Products › Laminar Flow Cabinet › Airstream® Gen 3 Vertical Laminar Flow Cabinet

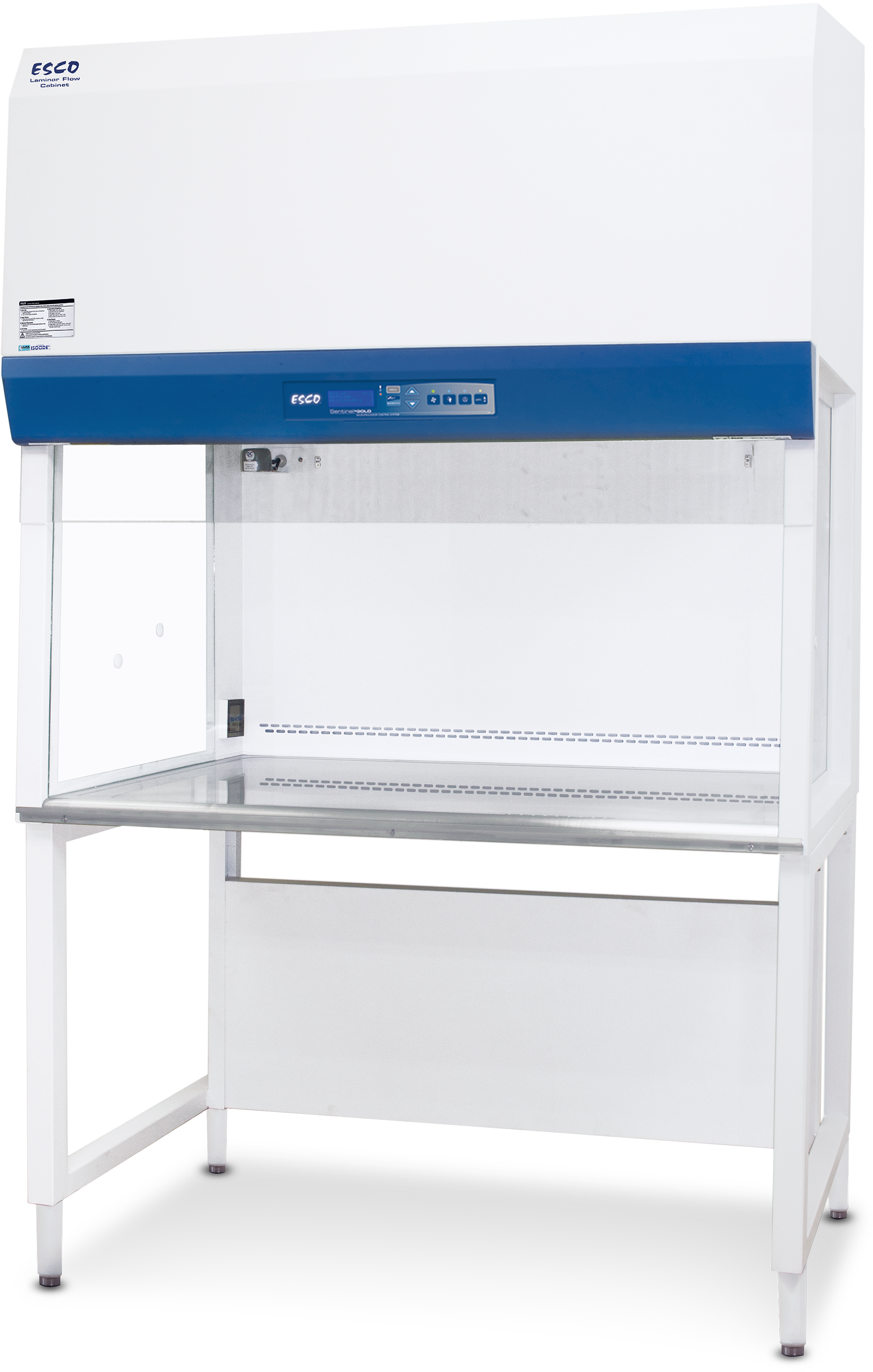

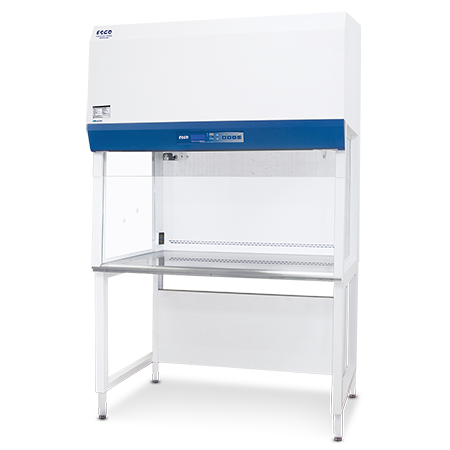

Airstream® Gen 3 Vertical Laminar Flow Cabinet

LVG-F

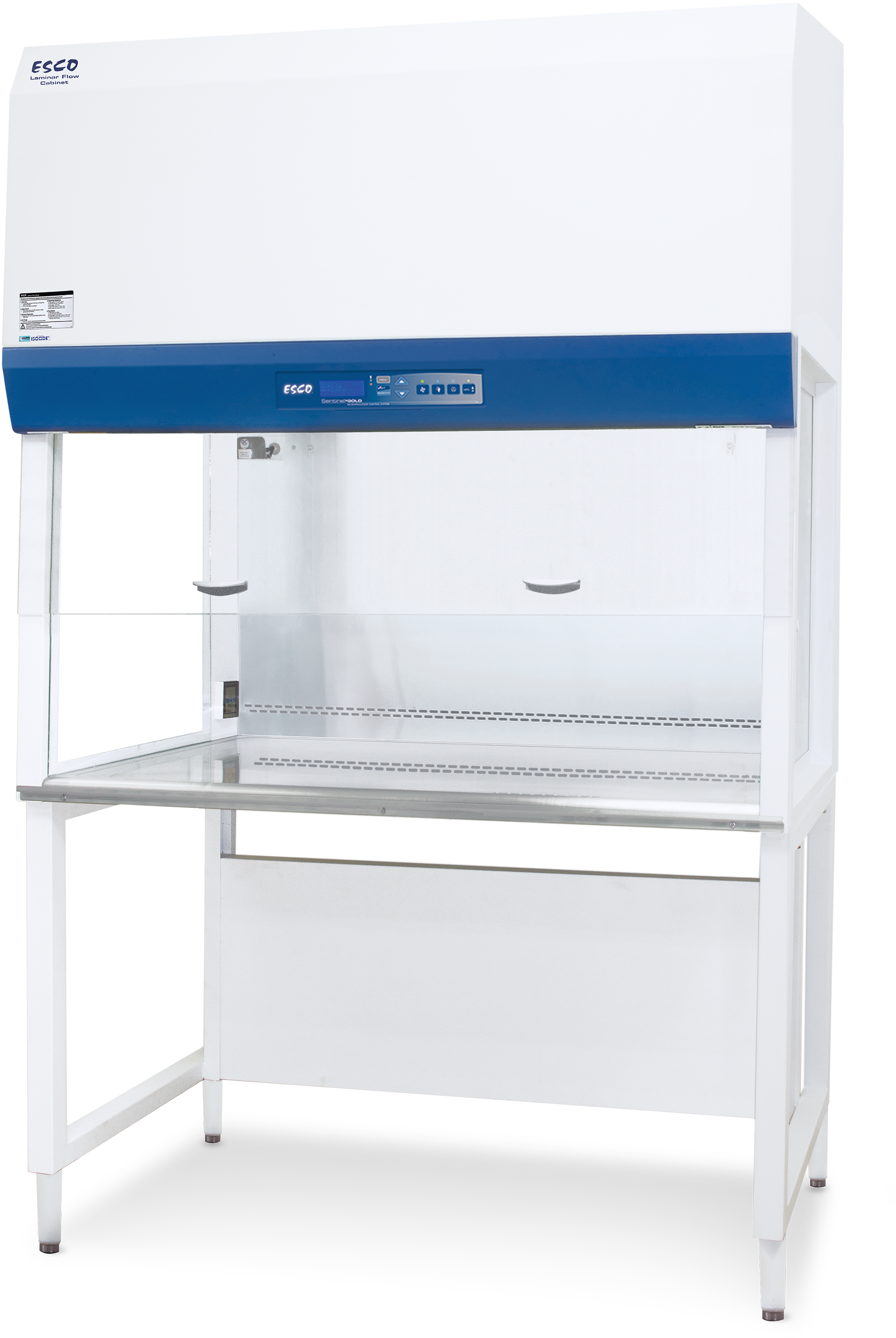

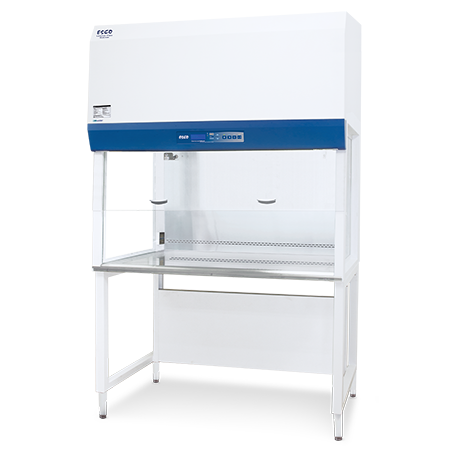

Airstream® Gen 3 Vertical Laminar Flow Cabinet - Glass Side Wall, Sliding Sash

LVG-S

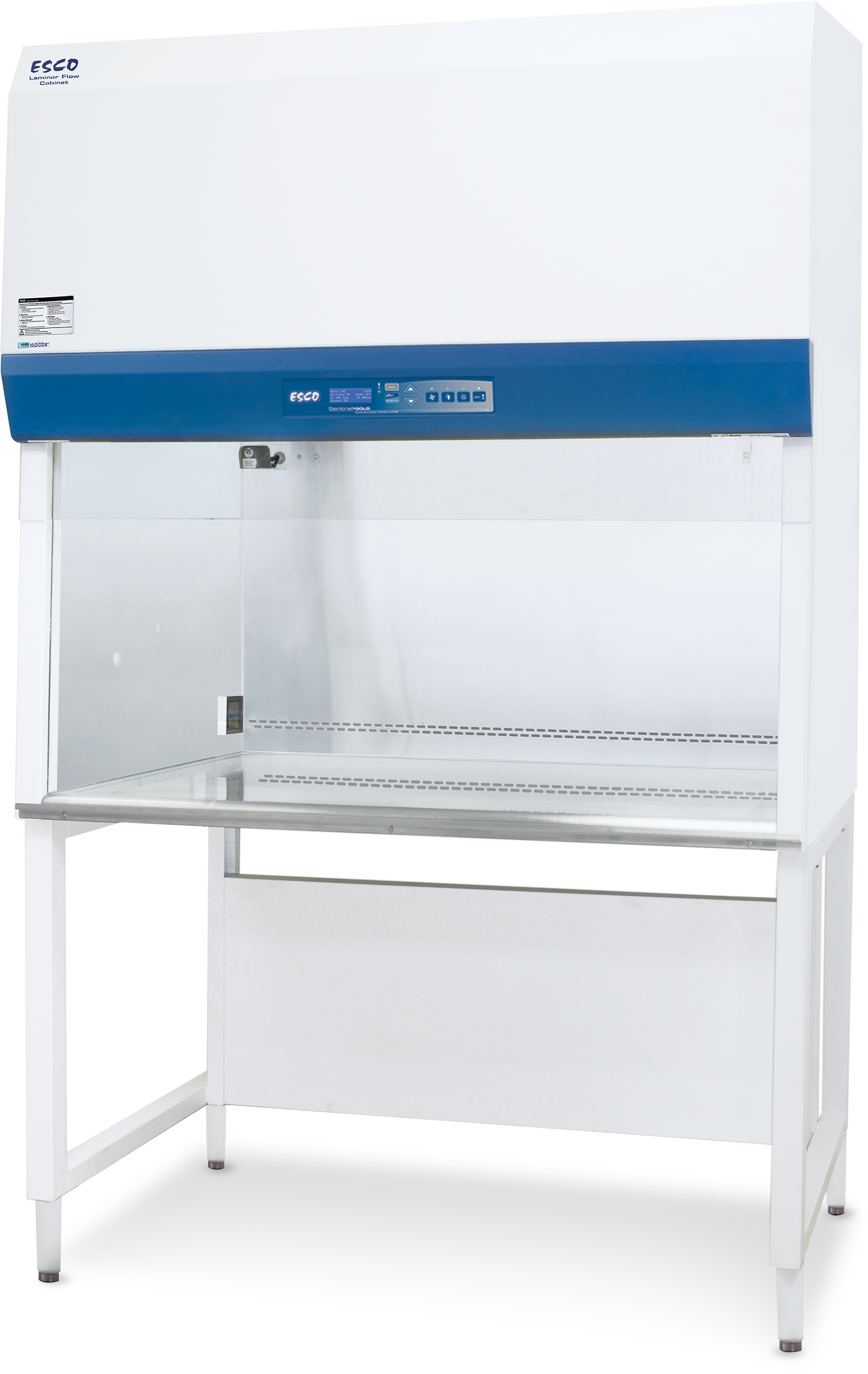

Airstream® Gen 3 Vertical Laminar Flow Cabinet - Stainless Steel Side Wall, Fixed Sash

LVS-F

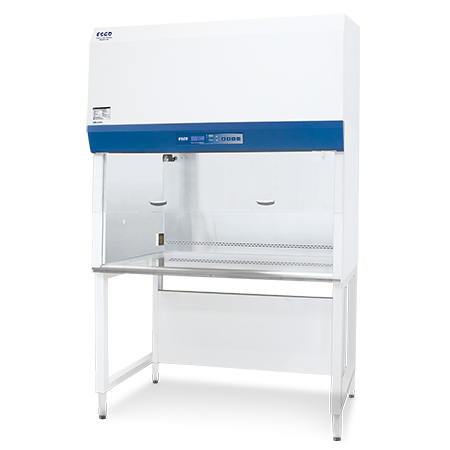

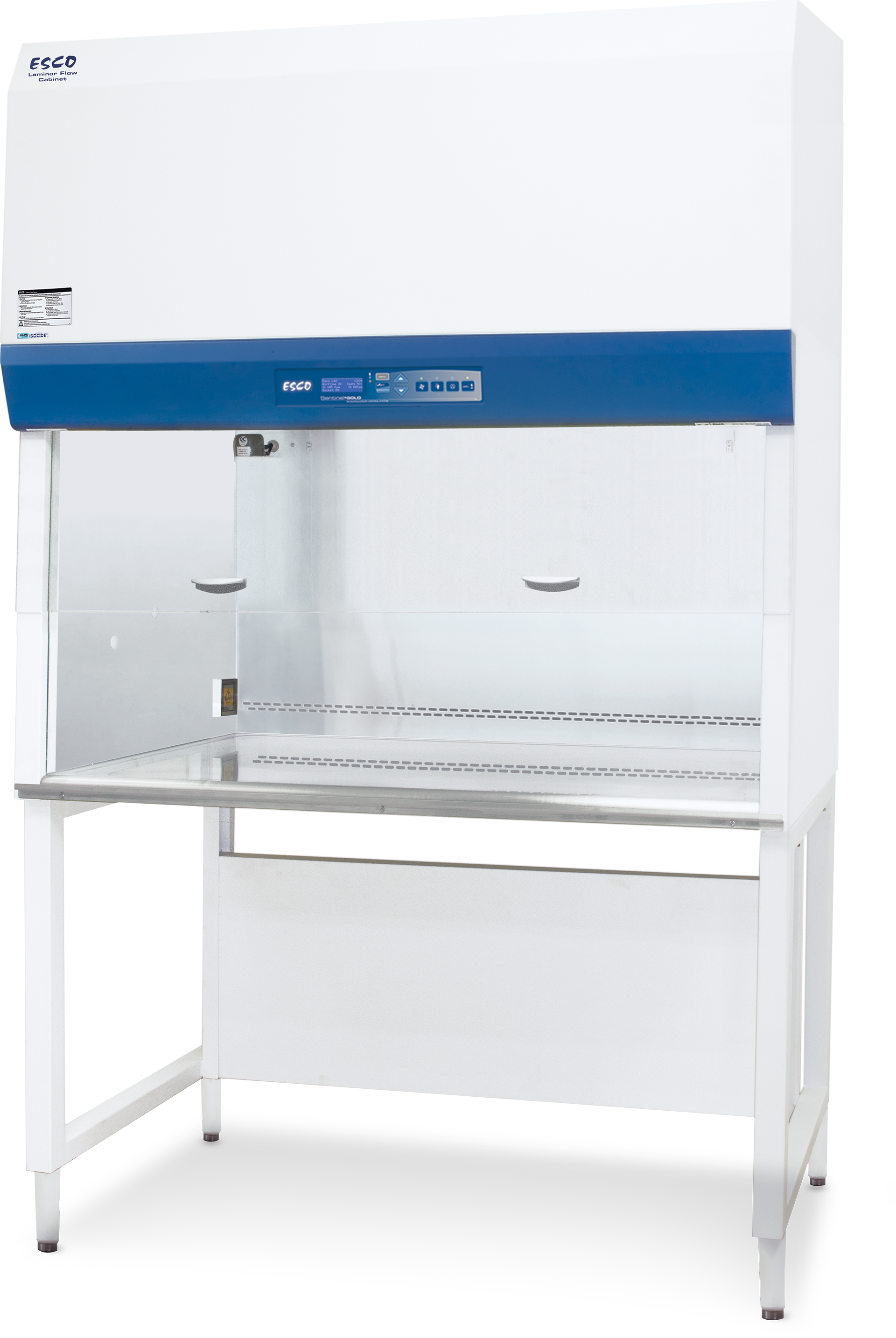

Airstream® Gen 3 Vertical Laminar Flow Cabinet - Stainless Steel Side Wall, Sliding Sash

LVS-S

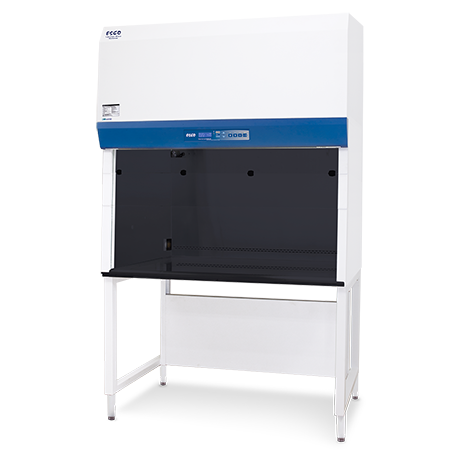

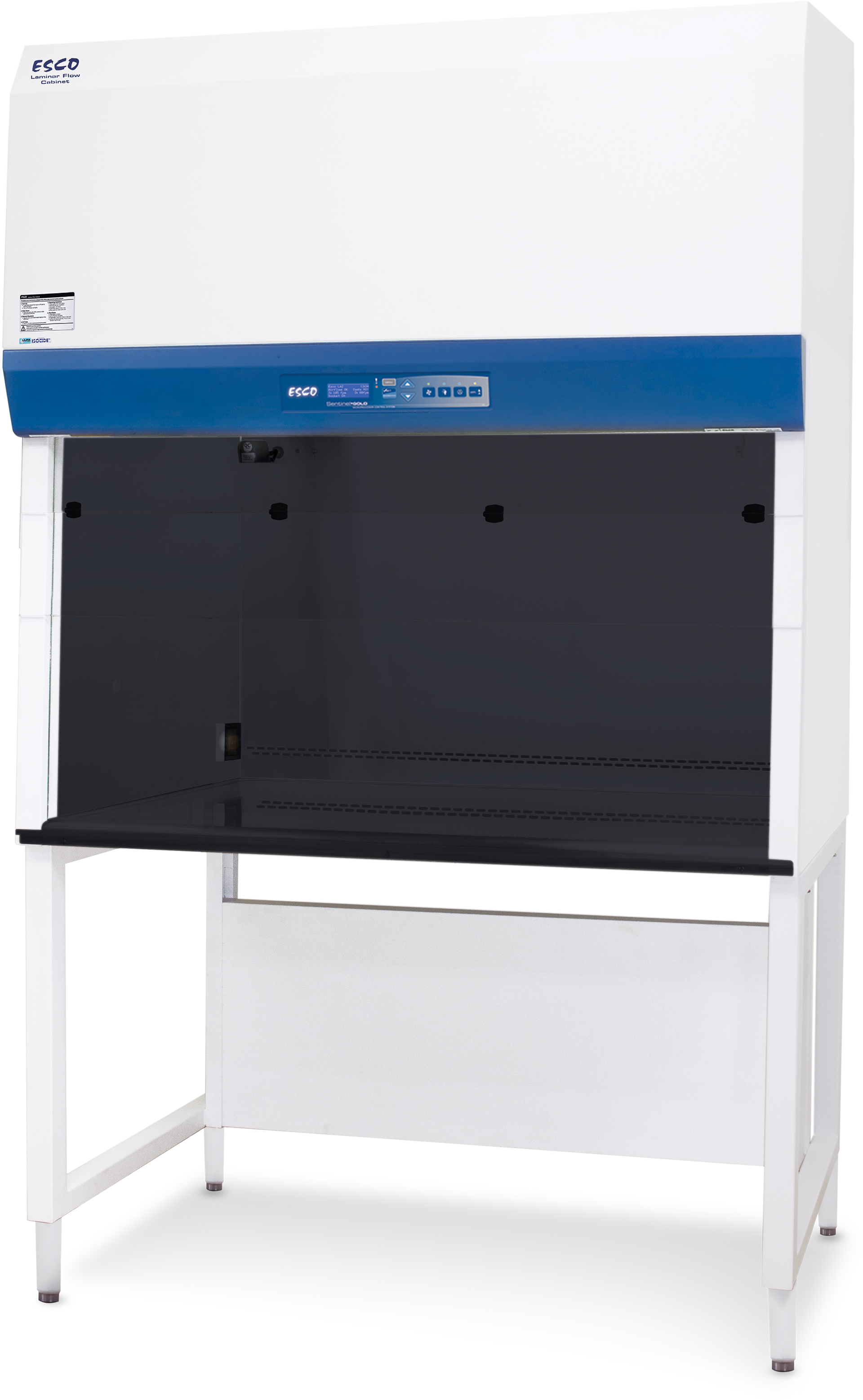

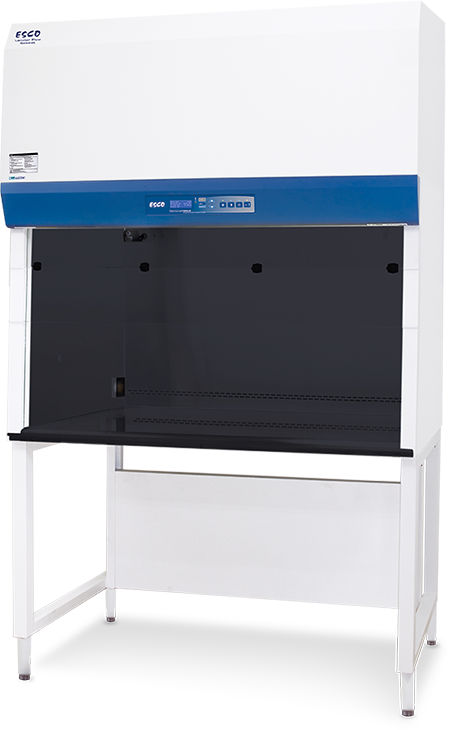

LVS with Matte Black Interior

LVS with Matte Black Interior

Airstream® Gen 3 Vertical Laminar Flow Cabinet

While others rely on traditional PSC motors, the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet is the only vertical-type clean bench in the market that uses Direct Current Electronically Commutated Motor (DC ECM) technology. Reducing energy costs by up to 70%, these clean benches are the greenest ones yet.

The secret to achieving energy savings through ECM technology lies in its high electrical efficiency and ability to run precisely on programmed speeds. Enjoy low heat and noise emission as well with the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet.

Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment

Applications:
  • Microbiology (non-pathogenic)
  • Forensics
  • Sterile product compounding
Request for Quote Online Product Form

Features

High-Quality Construction

  • Stainless steel worktop
  • Spill-retaining design will ensure containment of accidental liquid spills

Quiet Operation

  • Comfortable low noise at 52 dBA
  • Reduce fatigue and improve work concentration

ULPA Filter

  • 10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5

Energy-efficient

  • Powered by latest generation DC ECM blower, that is more efficient than legacy ECM and VFD motors
  • 70% Energy savings compared to AC motor
  • Stable airflow, despite building voltage fluctuations & filter loading

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
Interior Height (2.25ft / 0.7m), Glass Side Wall, Fixed Sash Window
2120374LVG-3AG-F8Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120369LVG-4AG-F8Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120375LVG-5AG-F8Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120407LVG-6AG-F8Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120435LVG-3AG-F9Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H) , 115 VAC, 50/60 Hz
2120437LVG-4AG-F9Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 2.25 ft / 0.7 m H) , 115 VAC, 50/60 Hz
2120439LVG-5AG-F9Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (5ft/1.5m W, 2.25 ft / 0.7 m H) , 115 VAC, 50/60 Hz
2120441LVG-6AG-F9Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 2.25 ft / 0.7 m H) , 115 VAC, 50/60 Hz
Interior Height (3ft / 0.9m), Glass Side Wall, Fixed Sash Window
2120555LVG-4CG-F8Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120559LVG-6CG-F8Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120595LVG-4CG-F9Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz
2120599LVG-6CG-F9Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz
Interior Height (2.25ft / 0.7m), Glass Side Wall, Manual Sliding Sash Window
2120792LVG-3AG-S8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120701LVG-4AG-S8Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120755LVG-5AG-S8Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120703LVG-6AG-S8Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120795LVG-3AG-S9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120761LVG-4AG-S9Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120768LVG-5AG-S9Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120763LVG-6AG-S9Vertical Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
Interior Height (2.25ft / 0.7m), Stainless Steel Side Wall, Fixed Sash Window
2120381LVS-3AG-F8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120382LVS-4AG-F8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120383LVS-5AG-F8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120384LVS-6AG-F8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120443LVS-3AG-F9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (3ft/0.9m W, 2.25 ft / 0.7 m H) , 115 VAC, 50/60 Hz
2120445LVS-4AG-F9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 2.25 ft / 0.7 m H) , 115 VAC, 50/60 Hz
2120447LVS-5AG-F9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (5ft/1.5m W, 2.25 ft / 0.7 m H) , 115 VAC, 50/60 Hz
2120449LVS-6AG-F9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 2.25 ft / 0.7 m H) , 115 VAC, 50/60 Hz
Interior Height (3ft / 0.9m), Stainless Steel Side Wall, Fixed Sash Window
2120565LVS-4CG-F8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120569LVS-6CG-F8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120686LVS-8CG-F8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (8ft/2.4m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120605LVS-4CG-F9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz
2120609LVS-6CG-F9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz
2120687LVS-8CG-F9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (8ft/2.4m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz
Interior Height (2.25ft / 0.7m), Stainless Steel Side Wall, Manual Sliding Sash Window
2120796LVS-3AG-S8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120759LVS-4AG-S8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120766LVS-5AG-S8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120760LVS-6AG-S8Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120797LVS-3AG-S9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
2120762LVS-4AG-S9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120767LVS-5AG-S9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120764LVS-6AG-S9Vertical Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz

Accessories

Item Code Model Code Description
5170251 UV-15A UV Lamp for 2ft, 3ft Cabinet
5170255 UV-30A UV Lamp for 4ft, 5ft, 6ft Cabinets
5170595 FC-LVG/S-3A Polycarbonate Front Cover for LVG/LVS-3A
5170584 FC-LVG/S-4A Polycarbonate Front Cover for LVG/LVS-4A
5170596 FC-LVG/S-5A Polycarbonate Front Cover forLVG/LVS-5A
5170597 FC-LVG/S-6A Polycarbonate Front Cover for LVG/LVS-6A
5170598 FC-LVG/S-4C Polycarbonate Front Cover for LVG/LVS-4C
5170599 FC-LVG/S-6C Polycarbonate Front Cover for LVG/LVS-6C
5130155 SPC-3A0 Gen 2 Support Stand with Caster Wheels (Height 28”) for 3ft cabinets
5130152 SPC-4A0 Gen 2 Support Stand with Caster Wheels (Height 28”) for 4ft cabinets
5130162 SPC-5A0 Gen 2 Support Stand with Caster Wheels (Height 28”) for 5ft cabinets
5130154 SPC-6A0 Gen 2 Support Stand with Caster Wheels (Height 28”) for 6ft cabinets
5130165 SPC-3B0 Gen 2 Support Stand with Caster Wheels (Height 34”) for 3ft cabinets
5130166 SPC-4B0 Gen 2 Support Stand with Caster Wheels (Height 34”) for 4ft cabinets
5130167 SPC-5B0 Gen 2 Support Stand with Caster Wheels (Height 34”) for 5ft cabinets
5130168 SPC-6B0 Gen 2 Support Stand with Caster Wheels (Height 34”) for 6ft cabinets
5130170 SAL-3A0 Gen 2 Support Stand with Leveling Feet - I (Height 28”) for 3ft cabinets
5130134 SAL-4A0 Gen 2 Support Stand with Leveling Feet - I (Height 28”) for 4ft cabinets
5130171 SAL-5A0 Gen 2 Support Stand with Leveling Feet - I (Height 28”) for 5ft cabinets
5130172 SAL-6A0 Gen 2 Support Stand with Leveling Feet - I (Height 28”) for 6ft cabinets
5130174 SAL-3B0 Gen 2 Support Stand with Leveling Feet - I (Height 34”) for 3ft cabinets
5130175 SAL-4B0 Gen 2 Support Stand with Leveling Feet - I (Height 34”) for 4ft cabinets
5130176 SAL-5B0 Gen 2 Support Stand with Leveling Feet - I (Height 34”) for 5ft cabinets
5130177 SAL-6B0 Gen 2 Support Stand with Leveling Feet - I (Height 34”) for 6ft cabinets
5130050 STL-3A0 Telescoping Stand with Leveling Feet (28" to 34") for 3ft cabinets
5130051 STL-4A0 Telescoping Stand with Leveling Feet (28" to 34") for 4ft cabinets
5130052 STL-5A0 Telescoping Stand with Leveling Feet (28" to 34") for 5ft cabinets
5130053 STL-6A0 Telescoping Stand with Leveling Feet (28" to 34") for 6 ft cabinets
5131150 STL-8A0 Gen 2 Telescoping Stand with Leveling Feet (28" to 34") for 8 ft cabinets
5130055 STC-3AO Telescoping Stand with Caster Wheels (28" to 34") for 3ft cabinets
5130056 STC-4AO Telescoping Stand with Caster Wheels (28" to 34") for 4ft cabinets
5130057 STC-5AO Telescoping Stand with Caster Wheels (28" to 34") for 5ft cabinets
5130058 STC-6AO Telescoping Stand with Caster Wheels (28" to 34") for 6ft cabinets
5131146 STC-8AO Gen 2 Telescoping Stand with Caster Wheels (28" to 34") for 8ft cabinets
5090001 PF-2 Prefilter, 565 X 500mm
5090002 PF-3 Prefilter, 717 X 500mm
5090003 PF-4 Prefilter, 870 X 500mm
