Orbital Shaker

› Products › Orbital Shaker › OrbiCult™ Temperature-Controlled Incubator Shakers

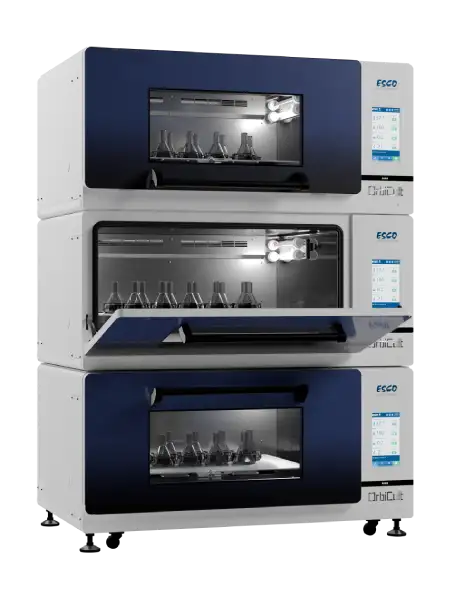

OrbiCult™ Temperature-Controlled Incubator Shakers

OC-_

OrbiCult™ Orbital Shaker

Advanced temperature-controlled incubator shakers meticulously engineered for laboratory excellence. This system provides precise control over critical parameters such as temperature, rotation speed, humidity, and CO2 concentration, tailored to various applications including bacterial, fungal, mammalian, and insect cell cultures, as well as plasmid DNA production, protein expression, and culture medium development. The modular design and superior structural integrity, combined with features like a 10-inch color touchscreen and CO2 infrared sensor, set a new standard in laboratory instrumentation. With an efficient drive system, precise safety controls, and versatile space optimization, the OrbiCult™ Series enhances both productivity and reliability in your laboratory operations.

Request for Quote

Features

Control and Temperature Regulation

  • PID control for precise temperature regulation with variable frequency compressor in all models.

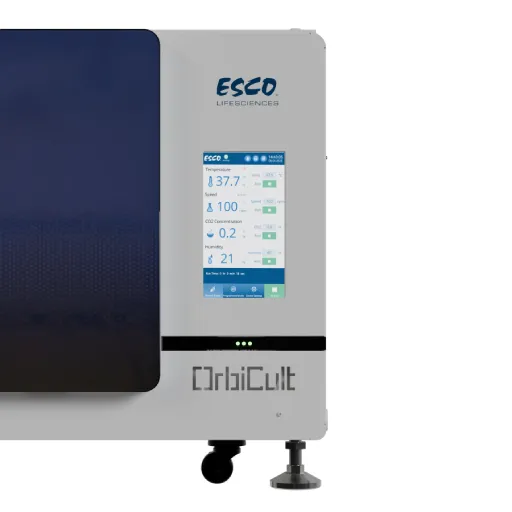

  • 10-inch color touchscreen for easy control and monitoring.
  • Dual crossflow fans ensure uniform temperature, reliable even at low temperatures.

Humidity and CO2 Control

  • CO2 infrared sensor for accurate CO2 concentration measurement.
  • Optional humidity control components to maintain optimal conditions.
  • Real-time monitoring system maintains reproducible environment.

Shaking Mechanism

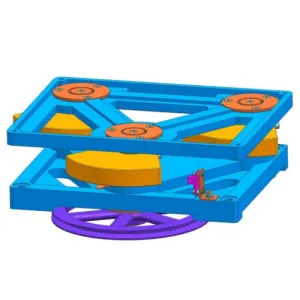

  • Linear motion shakers with push-pull rails and triple-axis balanced drive.
  • High-quality brushless motor with built-in filter magnetic ring for low noise operation ≤ 55 dB.
  • Gentle start and stop design with speed feedback system for precise control.

Design and Build

  • Double-layer transparent window and safety tempered glass door.
  • Stainless steel interior for durability.

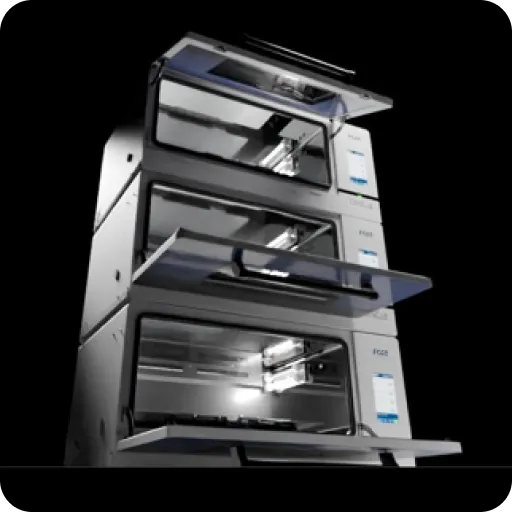

  • Compact three-tier stacking design with independent layer control.

Safety and Security

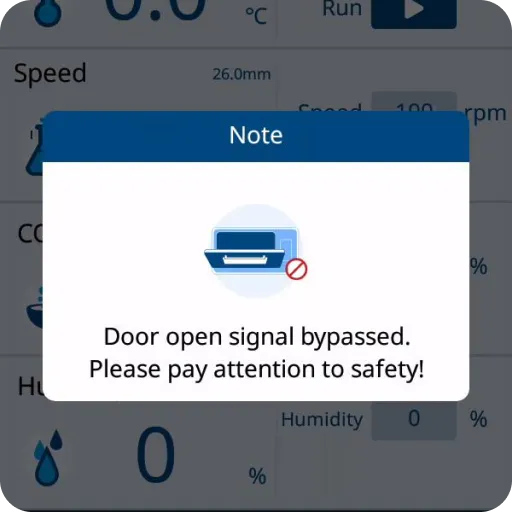

  • Comprehensive multi-parameter alarm system for temperature, CO2, humidity, and power interruptions.
  • Robust data recording and storage capabilities of up to 912 days.
  • Enhanced security via 3-tier user management control, only authorized personnel can modify critical parameters.

Models

Item Code Model Code Description
OrbiCult™ 30
2200038T OC-30 OrbiCult™ 250L, Liquid Capacity 30L without CO2, Control, Bottom Door, Orbit Size 26 mm
2200039T OC-30T OrbiCult™ 250L, Liquid Capacity 30L without CO2, Control, Top Door, Orbit Size 26 mm
2200040T OC-305 OrbiCult™ 250L, Liquid Capacity 30L without CO2, Control, Bottom Door, Orbit Size 50 mm
2200041T OC-305T OrbiCult™ 250L, Liquid Capacity 30L without CO2, Control, Top Door, Orbit Size 50 mm
2200042T OC-30C OrbiCult™ 250L, Liquid Capacity 30L with CO2, Control, Bottom Door, Orbit Size 26 mm
2200043T OC-30CT OrbiCult™ 250L, Liquid Capacity 30L with CO2, Control, Top Door, Orbit Size 26 mm
2200044T OC-30C5 OrbiCult™ 250L, Liquid Capacity 30L with CO2, Control, Bottom Door, Orbit Size 50 mm
2200045T OC-30C5T OrbiCult™ 250L, Liquid Capacity 30L with CO2, Control, Top Door, Orbit Size 50 mm
OrbiCult™ 40
2200046T OC-40 OrbiCult™ 400L, Liquid Capacity 40L without CO2, Control, Bottom Door, Orbit Size 26 mm
2200047T OC-40T OrbiCult™ 400L, Liquid Capacity 40L without CO2, Control, Top Door, Orbit Size 26 mm
2200048T OC-405 OrbiCult™ 400L, Liquid Capacity 40L without CO2, Control, Bottom Door, Orbit Size 50 mm
2200049T OC-405T OrbiCult™ 400L, Liquid Capacity 40L without CO2, Control, Top Door, Orbit Size 50 mm
2200050T OC-40C OrbiCult™ 400L, Liquid Capacity 40L with CO2, Control, Bottom Door, Orbit Size 26 mm
2200051T OC-40CT OrbiCult™ 400L, Liquid Capacity 40L with CO2, Control, Top Door, Orbit Size 26 mm
2200052T OC-40C5 OrbiCult™ 400L, Liquid Capacity 40L with CO2, Control, Bottom Door, Orbit Size 50 mm
2200053T OC-40C5T OrbiCult™ 400L, Liquid Capacity 40L with CO2, Control, Top Door, Orbit Size 50 mm

Accessories

Item Code Model Code Description
2200054T EFC-50 Erlenmeyer Flask Clamp 50 mL
2200055T EFC-100 Erlenmeyer Flask Clamp 100 mL
2200056T EFC-150 Erlenmeyer Flask Clamp 150 mL
2200057T EFC-200 Erlenmeyer Flask Clamp 200 mL
2200058T EFC-250 Erlenmeyer Flask Clamp 250 mL
2200059T EFC-500 Erlenmeyer Flask Clamp 500 mL
2200060T EFC-1000 Erlenmeyer Flask Clamp 1000 mL
2200061T EFC-2000 Erlenmeyer Flask Clamp 2000 mL
2200062T EFC-3000 Erlenmeyer Flask Clamp 3000 mL
2200063T TTR-1 Test Tube Rack 40 × Ø14mm, 5ml Tubes, 262W × 112D × 140H mm
2200064T TTR-2 Test Tube Rack 40 × Ø16mm, 10ml Tubes, 262W × 112D × 140H mm
2200065T TTR-3 Test Tube Rack 40 × Ø18mm, 15ml Tubes, 262W × 112D × 140H mm
2200066T TTR-4 Test Tube Rack 27 × Ø22mm, 20ml Tubes, 262W × 112D × 140H mm
2200067T TTR-5 Test Tube Rack 21 × Ø30mm, 50ml Tubes, 262W × 112D × 140H mm
2200068T TTR-6 Test Tube Rack, Stainless Steel, 36 × Ø21.5mm, 20ml Tubes, 250W × 134D × 160H mm
2200069T TTR-7 Test Tube Rack, Stainless Steel, 36 × Ø18.5mm, 15ml Tubes, 250W × 134D × 160H mm
2200070T TTR-8 Test Tube Rack, Stainless Steel, 55 × Ø15.5mm, 10/15ml Tubes, 250W × 134D × 160H mm
2200071T TTR-9 Test Tube Rack, Stainless Steel, 15 × Ø30mm, 50ml Tubes, 250W × 134D × 160H mm
2200072T TTR-S Test Tube Rack, Stainless Steel, 24 × Ø30mm, 50ml, 382W x 139D x 75H mm
2200073T TTR-AS Adjustable Test Tube Rack Stainless Steel, 24 × Ø30mm, 50ml, 365W × 139D × 126H mm
2200074T CTR-3 Fixed Centrifuge Tube Rack 21 × Ø30mm with Stabilizing Device, 50ml Tubes
2200075T CTR-4 Fixed Centrifuge Tube Rack 40 × Ø18mm with Stabilizing Device, 15ml Tubes
2200076T CTR-1 Fixed Centrifuge Tube Rack 10 × Ø30mm with Stabilizing Device, 50ml Tubes
2200077T CTR-2 Fixed Centrifuge Tube Rack 24× Ø18mm with Stabilizing Device, 15 ml Tubes
2200078T ATR-1 Adjustable Test Tube Rack 40 × Ø14mm, 5mL Tubes
2200079T ATR-2 Adjustable Test Tube Rack 40 × Ø16mm, 10ml Tubes
2200080T ATR-3 Adjustable Test Tube Rack 40 × Ø18mm, 15ml Tubes
2200081T ATR-4 Adjustable Test Tube Rack 40 × Ø16mm, 10mL, with Stabilizing Device
2200082T ATR-5 Adjustable Test Tube Rack 27 × Ø22mm, 20mL
2200083T ATR-6 Adjustable Test Tube Rack 21 × Ø30mm, 50mL
2200084T ATR-7 Adjustable Test Tube Rack 21 × Ø28mm, 50mL, with Stabilizing Device
2200086T MSR-1 Multifunctional Spring Rack, 165W × 165D × 80H mm
2200087T MSR-2 Multifunctional Spring Rack, 720W × 440D × 80H mm (OC-30)
2200088T MSR-3 Multifunctional Spring Rack, 899W × 539D × 81.5H mm (OC-40)
2200089T FSF-1 Fixture Separating Funnel, 4 Clamps, 355W × 402D × 153H mm
2200090T FSF-2 Fixture Separating Funnel, For Funnel > 500mL
2200091T IBC-500 Infusion Bottle Clamp 500mL, Stainless Steel
2200092T IBC-1000 Infusion Bottle Clamp 1000mL, Stainless Steel
2200093T SSP-1 Self-Adhesive Silicon Pad, Small, 140W × 140D mm
2200094T SSP-2 Self-Adhesive Silicon Pad, Large, 280W x 280D mm
2200095T Well Plate-96 Micro Plate Holder
2200096T Well Plate-24 24-Deep Well Plate Holder, 127W x 85D x 51H mm
2200097T Well Plate-C Deep Well Plate Clamp, 780W x 450D x 84H mm
2200098T Static Shelf-30 Static Shelf, 864W x 500D mm, For Culture Dish (OC-30)
2200099T Static Shelf-40 Static Shelf, 1005W x 600D mm, For Culture Dish (OC-40)
2200100T SK-30 Stacking Stand (OC-30)
2200101T SK-40 Stacking Stand (OC-40)
2200102T PH Automatic Water Replenishment Device (CO2 Control Models)
2200103T AH Active Humidifier (CO2 Control Models)
2200104T Reservoir Reservoir, 240W x 240D x 449H mm, 15L (PH and AH)
