PCR Cabinet

ProductsPCR Cabinet › Airstream® PCR Cabinet

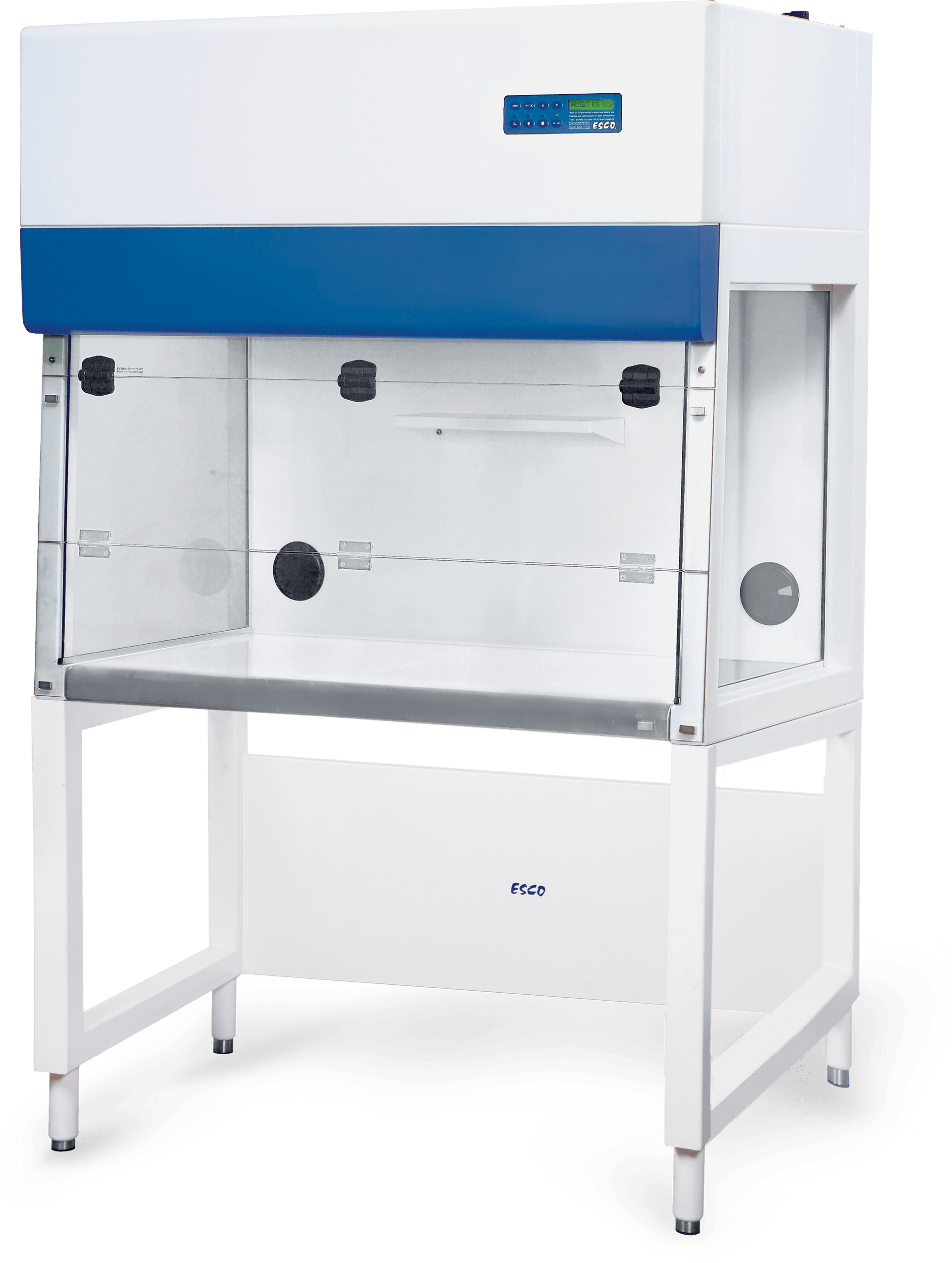

Airstream® PCR Cabinet

PCR-_A_

Airstream® PCR Cabinet

Polymerase Chain Reaction is fundamental to almost all applications requiring a high copy number of starting material and is used in all laboratories working with DNA and RNA. Because of the high copy number generated during PCR, it is essential to prevent possible contamination of the PCR .

Esco Airstream® PCR Cabinet (PCR) is equipped with HEPA-filtered laminar flow, airflow monitoring, UV lamp & prefilter change alarm to provide a sterile environment for reagent and sample preparation during PCR mastermix preparation.

Features

Sentinel™ Silver Microprocessor Controller

  • Displays basic parameters such as airflow on one screen
  • Has alarms to notify users to change filters

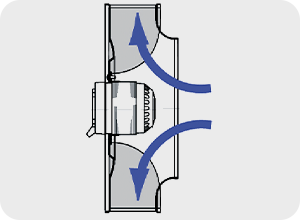

High Performance Fan System

  • German-made ebm-papst® permanently lubricated, centrifugal motor/blowers with external rotor designs.

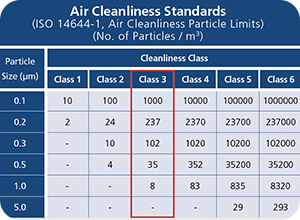

Superior Air Cleanliness

  • Provide ISO Class 3 air cleanliness within the work zone as per ISO 14644.1

Proven Product Protection

  • Vertical laminar airflow with HEPA-filtration, >99.99% at 0.3 microns.

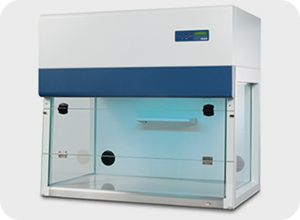

UV Decontamination System

  • UV lamp (253.7 nm)
  • UV timer adjustable up to 18 hours. Default value at 60 minutes.
  • UV-filtering polycarbonate front and glass sides shield the user from accidental UV exposure.

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
2150001PCR-3A1Airstream® PCR Cabinet, 3ft./0.9m, 220-230 VAC, 50 Hz
2150003PCR-3A2Airstream® PCR Cabinet, 3ft./0.9m, 110-120 VAC, 50/60 Hz
2150004PCR-3A3Airstream® PCR Cabinet, 3ft./0.9m, 220-230 VAC, 60 Hz
2150005PCR-4A1Airstream® PCR Cabinet, 4ft./1.2m, 220-230 VAC, 50 Hz
2150007PCR-4A2Airstream® PCR Cabinet, 4ft./1.2m, 110-120 VAC, 50/60 Hz
2150008PCR-4A3Airstream® PCR Cabinet, 4ft./1.2m, 220-230 VAC, 60 Hz

Accessories

Item CodeModel CodeDescription
5170251UV-15AUV Lamp for 3ft Cabinets
5170255UV-30AUV Lamp for 4ft Cabinets
5131345SPC-3E0Support Stand with Caster Wheels (Height 28”) for 3ft cabinets
5131346SPC-4E0Support Stand with Caster Wheels (Height 28”) for 4ft cabinets
5131354SPC-3F0Support Stand with Caster Wheels (Height 34”) for 3ft cabinets
5131355SPC-4F0Support Stand with Caster Wheels (Height 34”) for 4ft cabinets
5131348SAL-3E0Support Stand with Leveling Feet - I (Height 28”) for 3ft cabinets
5131349SAL-4E0Support Stand with Leveling Feet - I (Height 28”) for 4ft cabinets
5131351SAL-3F0Support Stand with Leveling Feet - I (Height 34”) for 3ft cabinets
5131352SAL-4F0Support Stand with Leveling Feet - I (Height 34”) for 4ft cabinets
