Ascent™ Max – B Series

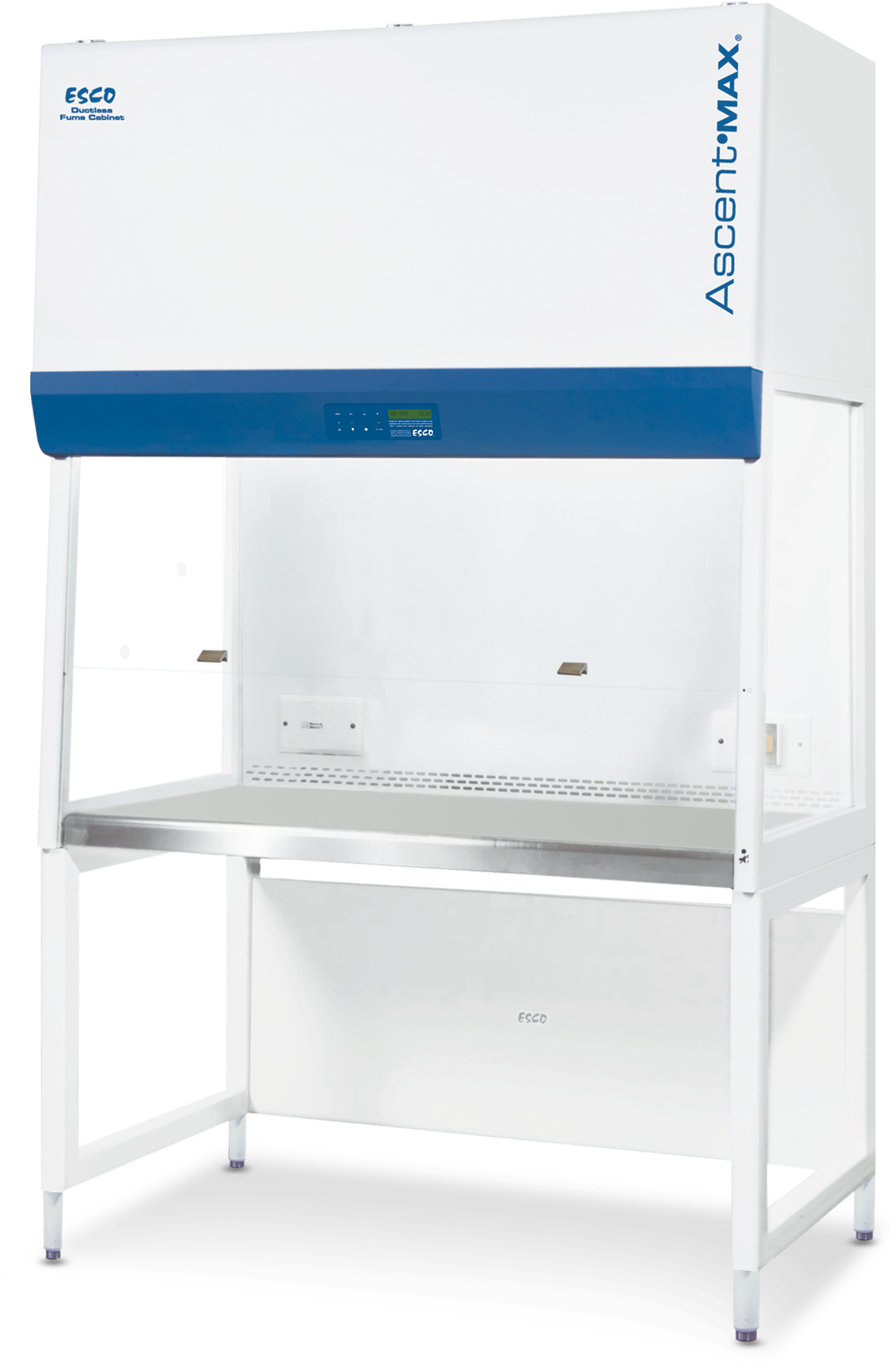

ADC- _B_

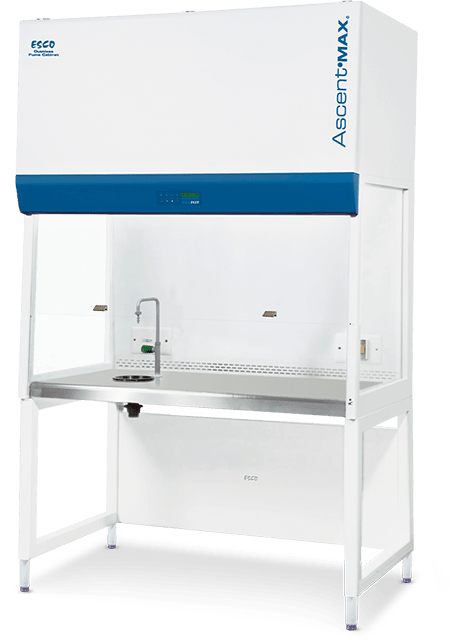

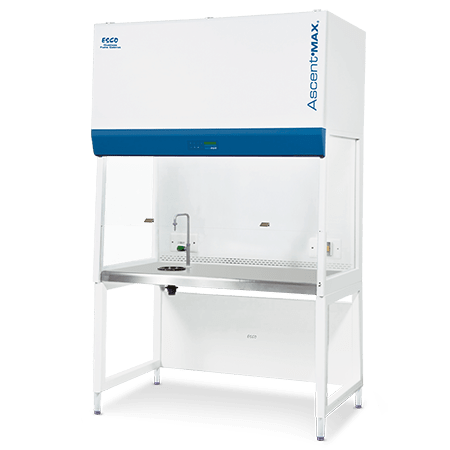

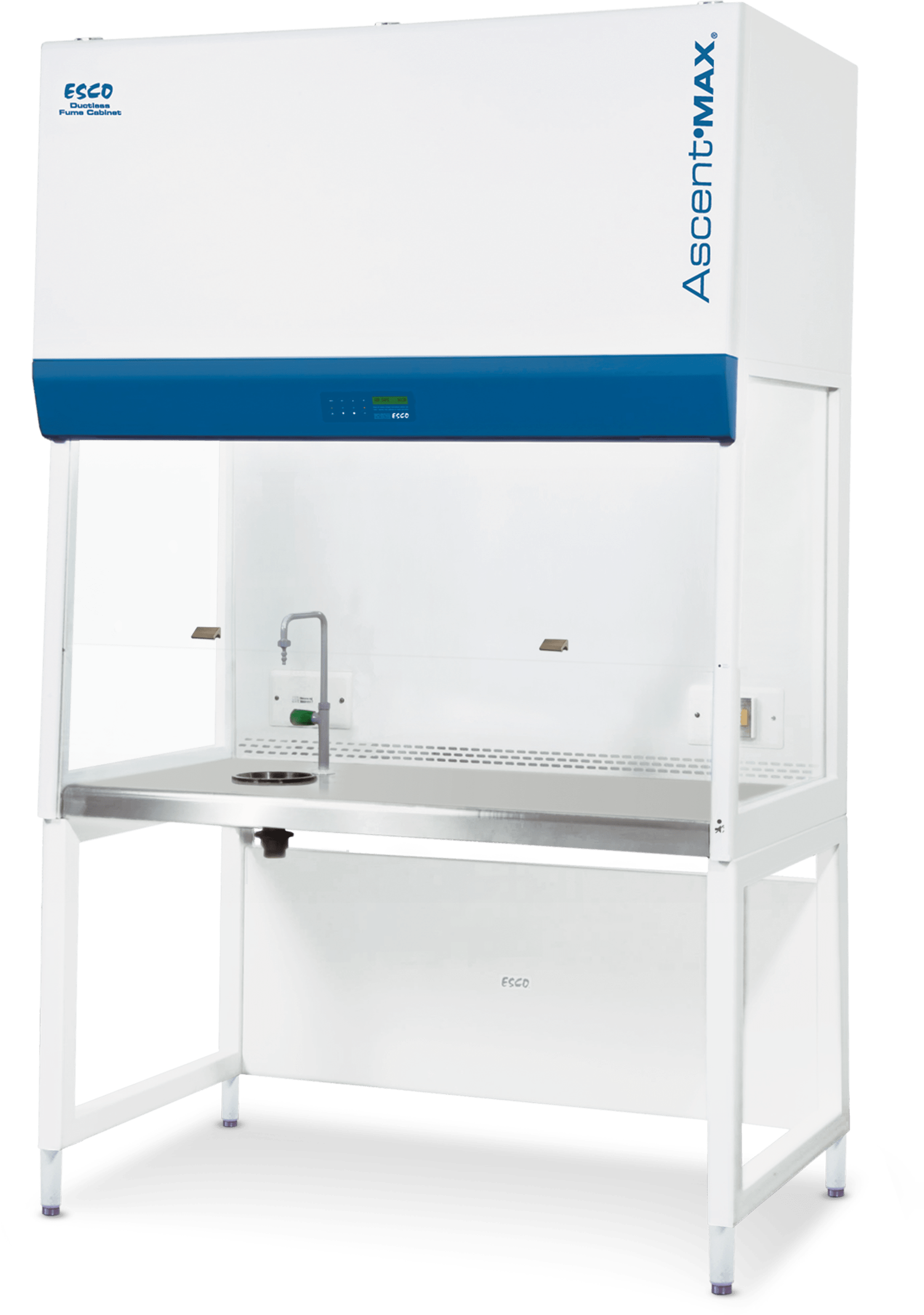

ADC- _B_- PP

ADC- _B_- PP

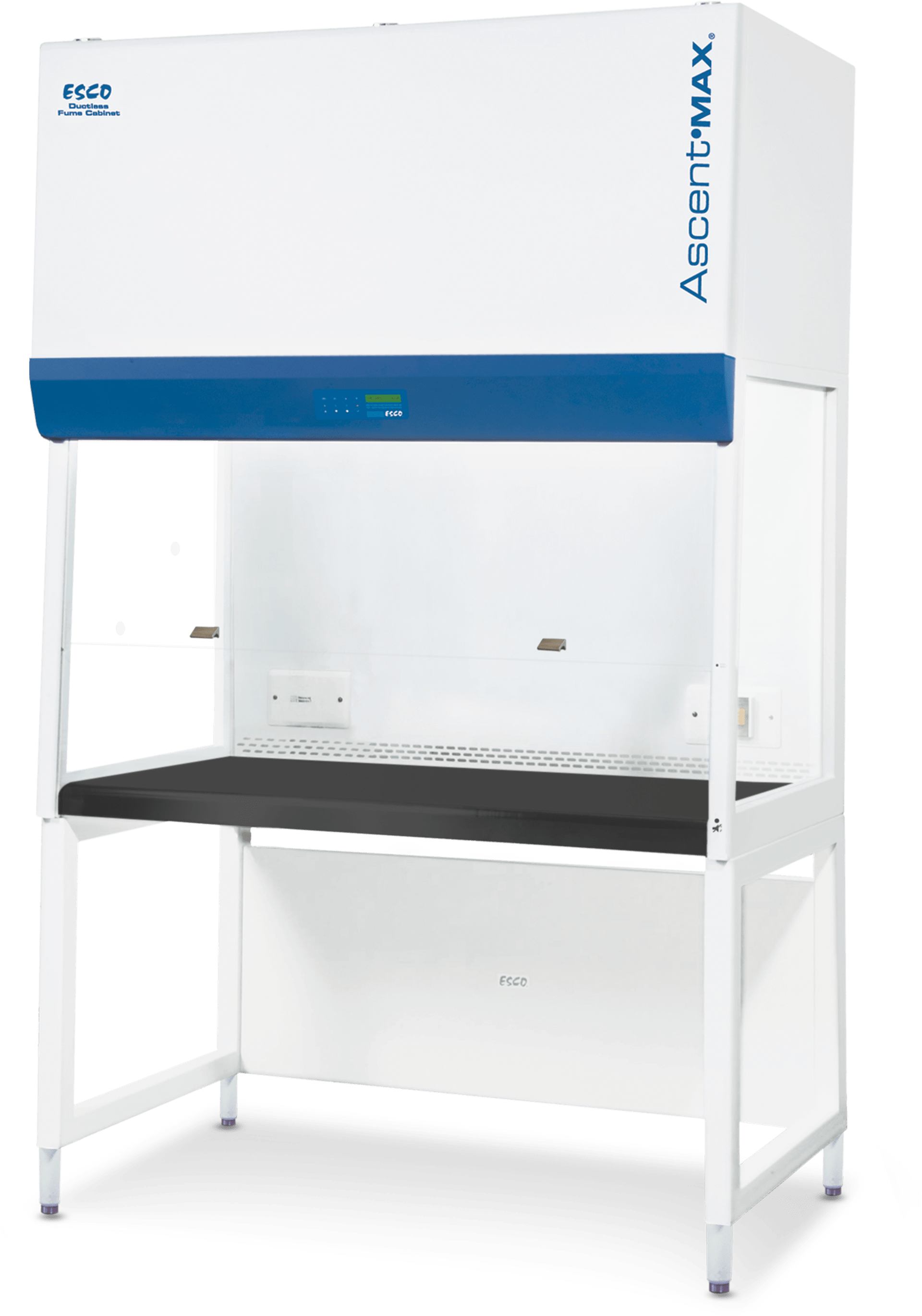

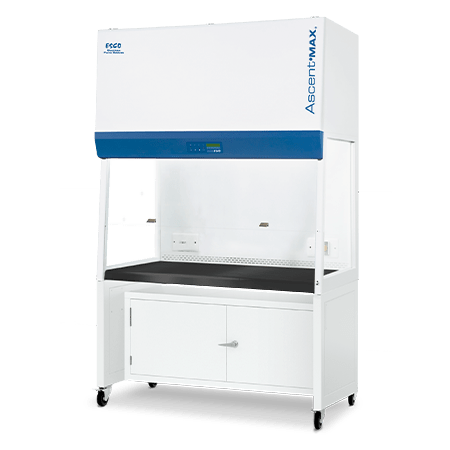

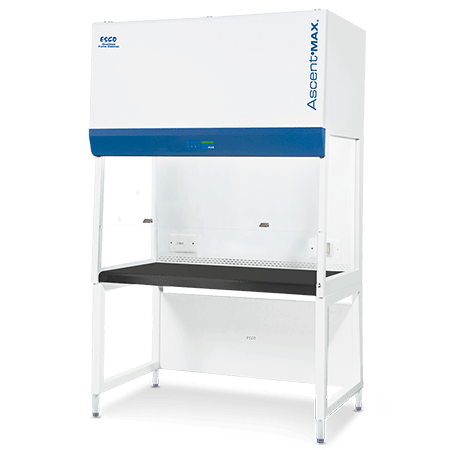

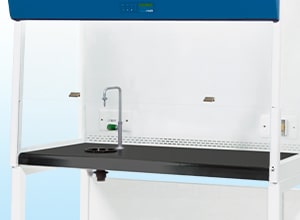

ADC with epoxy worktop

ADC with epoxy worktop

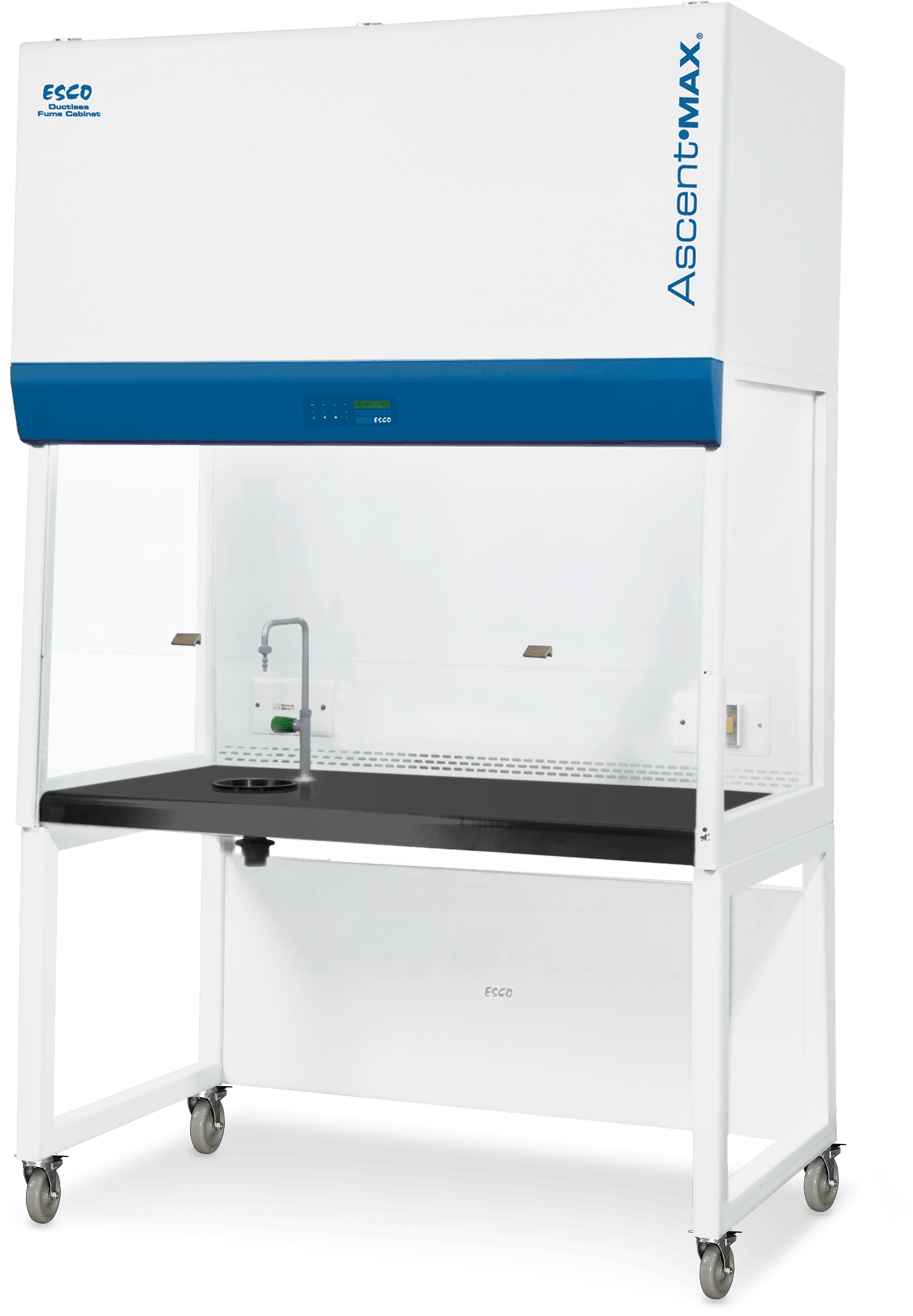

ADC- _ B _- PP with epoxy worktop

ADC- _ B _- PP with epoxy worktop

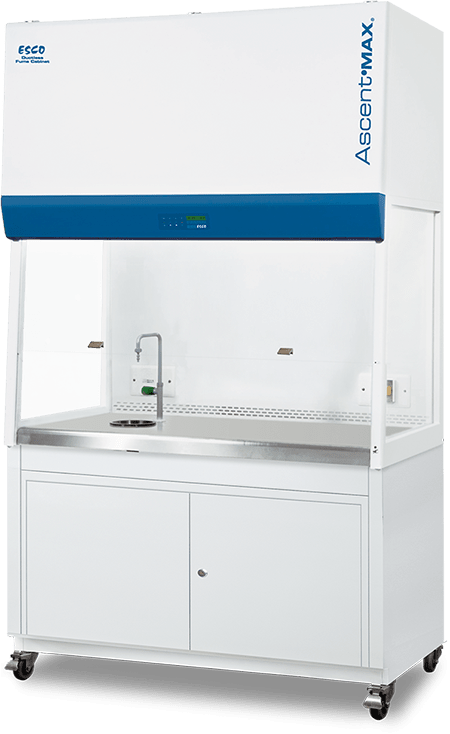

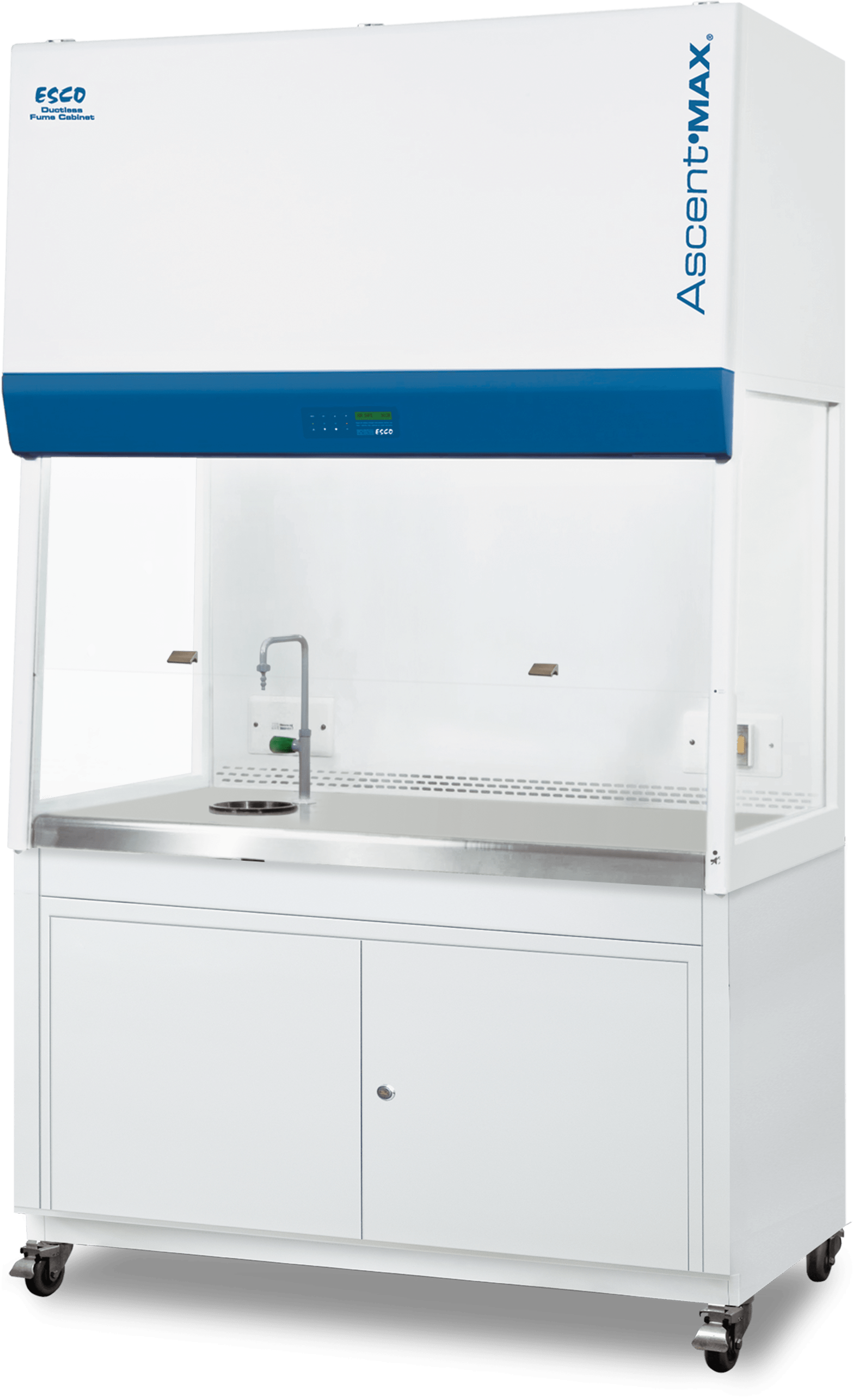

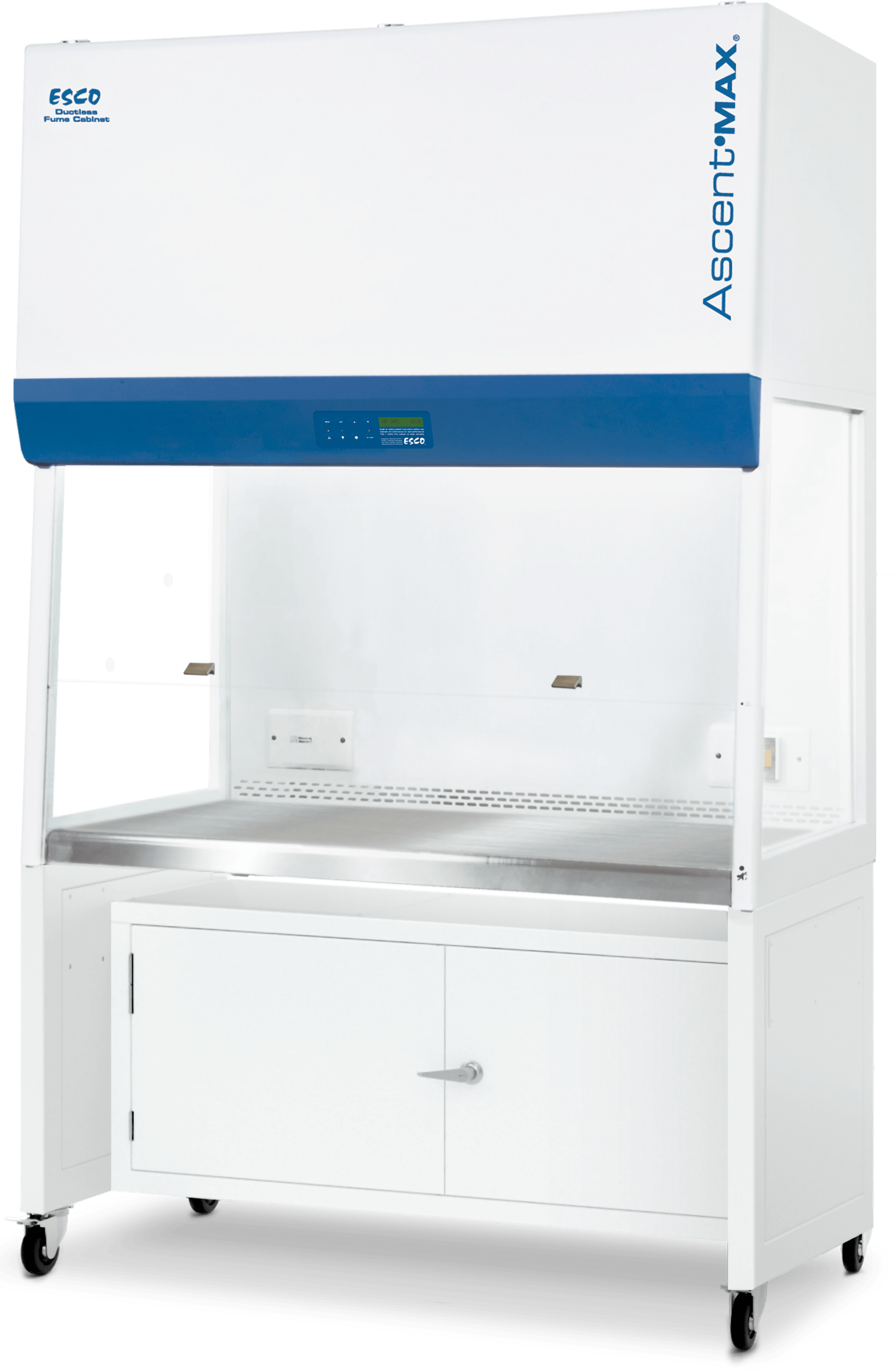

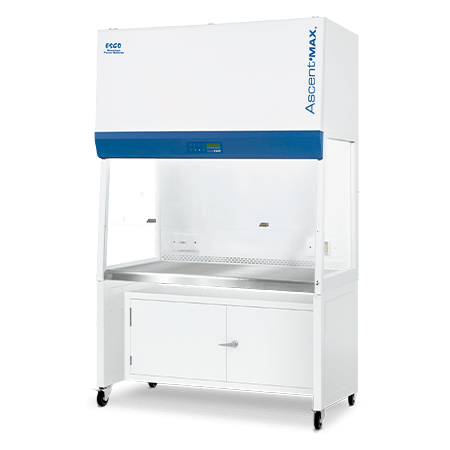

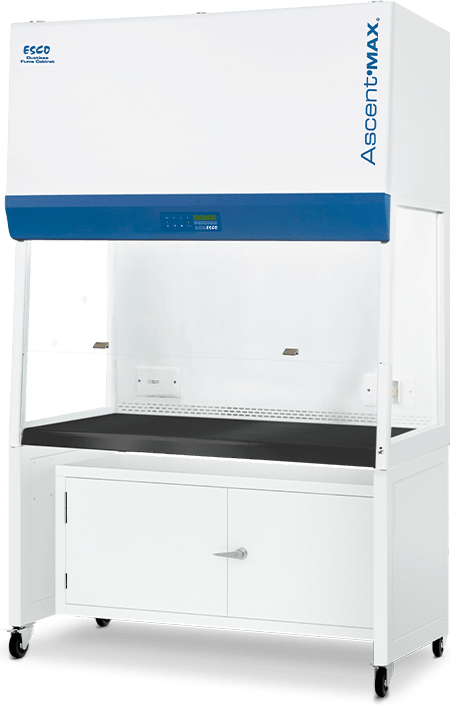

ADC - _ B _ - PP with BCC

ADC - _ B _ - PP with BCC

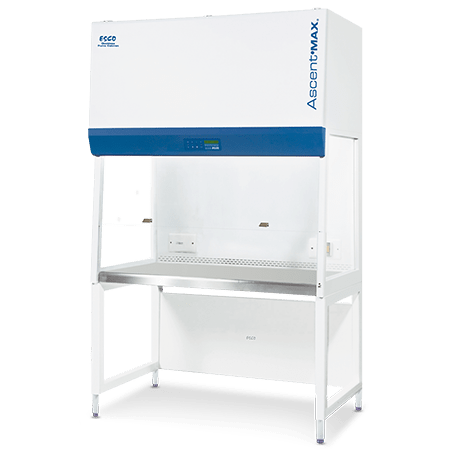

Ascent™ Max – B Series

Esco Ascent™ Max (ADC) Ductless Fume Hood utilizes a carbon filtration system to remove toxic chemical fumes and recycle clean air back to the laboratory. This airflow principle provides operator and environment protection.

Ductless fume hoods are becoming a viable alternative to ducted fume hoods as no extraction systems are required, and its plug-and-play feature prevents any downtime in the laboratory. Esco ductless fume hoods also offer energy savings, convenience, and mobility.

Esco Ascent™ Max-B Series (ADC-B) is the standard ductless fume hood model. This unit is equipped with a main carbon filter and is used for general applications such as dilution, mixing, buffer preparation, etc.

Features

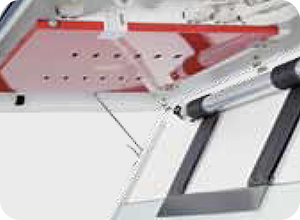

Robust Hood Construction

  • Key components including Fluorescent Lamps, Motor Capacitor, Electrical parts, and Switch Control are mounted outside the airstream and away from contaminated areas to permit easy service.

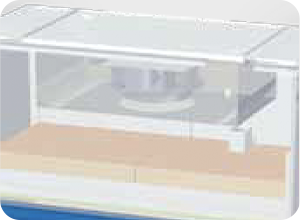

Centrifugal Fan

  • Permanently lubricated fans are energy-efficient with external rotor motor design that reduces operating costs.
  • Extremely low noise and low vibration level

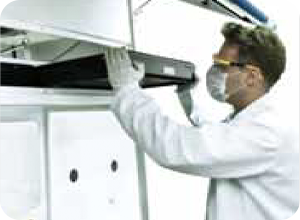

Filtration System

  • Main Filter: Nanocarb™ Activated carbon, available in 8 types
  • Efficient perimeter clamping ensures no leakage as well as allows easy filter change procedure.

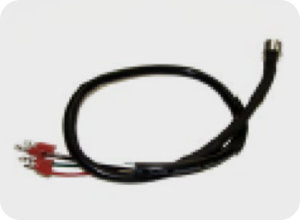

Optional VOC Sensor

  • Detects presence of volatile organic compounds in the exhaust and alarms to indicate filter saturation

Worktop Options

  • Standard SS steel worktop can be upgraded to phenolic resin or epoxy for better chemical resistance

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
220-240 VAC, 50 Hz
2040018ADC-2B1Ascent™ Max Ductless Fume Hood - Standard, 2ft/0.6m
2040198ADC-2B1-PPAscent™ Max Ductless Fume Hood - Standard, 2ft/0.6m, with PP Drip Cup Provision
2040024ADC-3B1Ascent™ Max Ductless Fume Hood - Standard, 3ft/0.9m
2040161ADC-3B1-PPAscent™ Max Ductless Fume Hood - Standard, 3ft/0.9m, with PP Drip Cup Provision
2040042ADC-4B1Ascent™ Max Ductless Fume Hood - Standard, 4ft/1.2m
2040128ADC-4B1-PPAscent™ Max Ductless Fume Hood - Standard, 4ft/1.2m, with PP Drip Cup Provision
2040060ADC-5B1Ascent™ Max Ductless Fume Hood - Standard, 5ft/1.5m
2040134ADC-5B1-PPAscent™ Max Ductless Fume Hood - Standard, 5ft/1.5m, with PP Drip Cup Provision
2040078ADC-6B1Ascent™ Max Ductless Fume Hood - Standard, 6ft/1.8m
2040140ADC-6B1-PPAscent™ Max Ductless Fume Hood - Standard, 6ft/1.8m, with PP Drip Cup Provision
110-120 VAC, 60 Hz
2040020ADC-2B2Ascent™ Max Ductless Fume Hood - Standard, 2ft/0.6m
2040183ADC-2B2-PPAscent™ Max Ductless Fume Hood - Standard, 2ft/0.6m, with PP Drip Cup Provision
2040027ADC-3B2Ascent™ Max Ductless Fume Hood - Standard, 3ft/0.9m
2040162ADC-3B2-PPAscent™ Max Ductless Fume Hood - Standard, 3ft/0.9m, with PP Drip Cup Provision
2040046ADC-4B2Ascent™ Max Ductless Fume Hood - Standard, 4ft/1.2m
2040129ADC-4B2-PPAscent™ Max Ductless Fume Hood - Standard, 4ft/1.2m, with PP Drip Cup Provision
2040063ADC-5B2Ascent™ Max Ductless Fume Hood - Standard, 5ft/1.5m
2040135ADC-5B2-PPAscent™ Max Ductless Fume Hood - Standard, 5ft/1.5m, with PP Drip Cup Provision
2040079ADC-6B2Ascent™ Max Ductless Fume Hood - Standard, 6ft/1.8m
2040141ADC-6B2-PPAscent™ Max Ductless Fume Hood - Standard, 6ft/1.8m, with PP Drip Cup Provision
220-240 VAC, 60 Hz
2040022ADC-2B3Ascent™ Max Ductless Fume Hood - Standard, 2ft/0.6m
2040212ADC-2B3-PPAscent™ Max Ductless Fume Hood - Standard, 2ft/0.6m, with PP Drip Cup Provision
2040030ADC-3B3Ascent™ Max Ductless Fume Hood - Standard, 3ft/0.9m
2040163ADC-3B3-PPAscent™ Max Ductless Fume Hood - Standard, 3ft/0.9m, with PP Drip Cup Provision
2040049ADC-4B3Ascent™ Max Ductless Fume Hood - Standard, 4ft/1.2m
2040130ADC-4B3-PPAscent™ Max Ductless Fume Hood - Standard, 4ft/1.2m, with PP Drip Cup Provision
2040066ADC-5B3Ascent™ Max Ductless Fume Hood - Standard, 5ft/1.5m
2040136ADC-5B3-PPAscent™ Max Ductless Fume Hood - Standard, 5ft/1.5m, with PP Drip Cup Provision
2040080ADC-6B3Ascent™ Max Ductless Fume Hood - Standard, 6ft/1.8m
2040142ADC-6B3-PPAscent™ Max Ductless Fume Hood - Standard, 6ft/1.8m, with PP Drip Cup Provision

Accessories

Item CodeModel CodeDescription
Main Carbon Filters for 2 ft models
5080003CFA-11Code A Standard Filter - 425mm x 520mm x 65mm
5080095CFB-11Code B Acid Filter - 425mm x 520mm x 65mm
5080028CFC-11Code C Mercury Filter - 425mm x 520mm x 65mm
5080039CFD-11Code D Sulphur Filter - 425mm x 520mm x 65mm
5080050CFE-11Code E Halogen Filter - 425mm x 520mm x 65mm
5080061CFF-11Code F Aldehyde Filter - 425mm x 520mm x 65mm
5080072CFG-11Code G Ammonia/Amines Filter - 425mm x 520mm x 65mm
5080104CFH-11Code H Chloroform/Ether Filter - 425mm x 520mm x 65mm
Main Carbon Filters for 3 ft models
5080001CFA-1Code A Standard Filter - 440mm x 520mm x 65mm
5080017CFB-1Code B Acid Filter - 440mm x 520mm x 65mm
5080026CFC-1Code C Mercury Filter - 440mm x 520mm x 65mm
5080037CFD-1Code D Sulphur Filter - 440mm x 520mm x 65mm
5080048CFE-1Code E Halogen Filter - 440mm x 520mm x 65mm
5080059CFF-1Code F Aldehyde Filter - 440mm x 520mm x 65mm
5080070CFG-1Code G Ammonia/Amines Filter - 440mm x 520mm x 65mm
5080133CFH-1Code H Chloroform/Ethers Filter - 440mm x 520mm x 65mm
Main Carbon Filters for 4 and 6 ft models
5080010CFA-2Code A Standard Filter - 595mm x 520mm x 65mm
5080019CFB-2Code B Acid Filter - 595mm x 520mm x 65mm
5080030CFC-2Code C Mercury Filter - 595mm x 520mm x 65mm
5080041CFD-2Code D Sulphur Filter - 595mm x 520mm x 65mm
5080052CFE-2Code E Halogen Filter - 595mm x 520mm x 65mm
5080063CFF-2Code F Aldehyde Filter - 595mm x 520mm x 65mm
5080074CFG-2Code G Ammonia/Amines Filter - 595mm x 520mm x 65mm
5080120CFH-2Code H Chloroform/Ethers Filter - 595mm x 520mm x 65mm
Main Carbon Filters for 5 ft models
5080011CFA-3Code A Standard Filter - 745mm x 520mm x 65mm
5080020CFB-3Code B Acid Filter - 745mm x 520mm x 65mm
5080031CFC-3Code C Mercury Filter - 745mm x 520mm x 65mm
5080042CFD-3Code D Sulphur Filter - 745mm x 520mm x 65mm
5080053CFE-3Code E Halogen Filter - 745mm x 520mm x 65mm
5080064CFF-3Code F Aldehyde Filter - 745mm x 520mm x 65mm
5080075CFG-3Code G Ammonia/Amines Filter - 745mm x 520mm x 65mm
5080100CFH-3Code H Chloroform/Ethers Filter - 745mm x 520mm x 65mm
Service Fixtures
5170015SF-1G50European Style Service Fixture with 50mm Thread Length - Gas
5170004SF-1V50European Style Service Fixture with 50mm Thread Length - Vacuum
5170012SF-1N50European Style Service Fixture with 50mm Thread Length - Nitrogen
5170007SF-1A50European Style Service Fixture with 50mm Thread Length - Air
5170009SF-1W50European Style Service Fixture with 50mm Thread Length - Water
5170019SF-2U50American Style Service Fixture with 50mm Thread Length - Universal
5170026CU-PipeCopper Piping for Service Fixture - Must be Factory Installed
5070086SL-ValveSolenoid Valve Fitting - Must be Factory Installed
Support Stands and Base cabinets
SPC-_A0 Gen2Support Stand with Caster Wheels (Height 28”)
SPC-_B0 Gen 2Support Stand with Caster Wheels (Height 34”)
SAL-_A0 Gen2Support Stand with Levelling Feet (Height 28”)
SAL-_B0 Gen 2Support Stand with Levelling Feet (Height 34”)

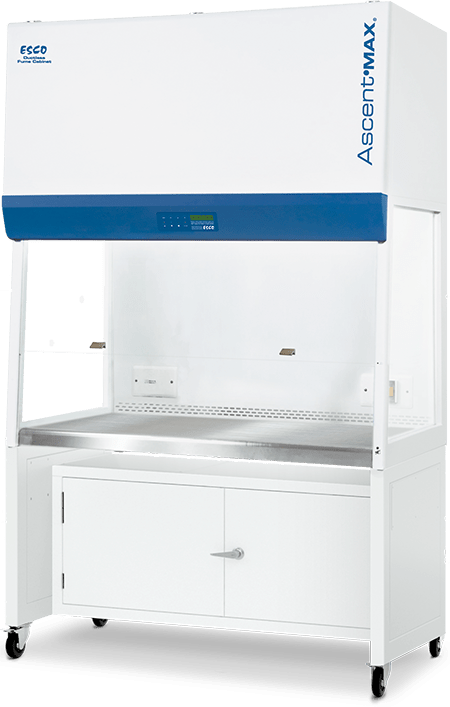

BCCBase cabinet with caster wheels
Others
5170334VOC-SRVOC Sensor for Ascent™ Max Ductless Fume Hood
5170001WF-PPSwan-neck Faucet and PP Drip Cup
