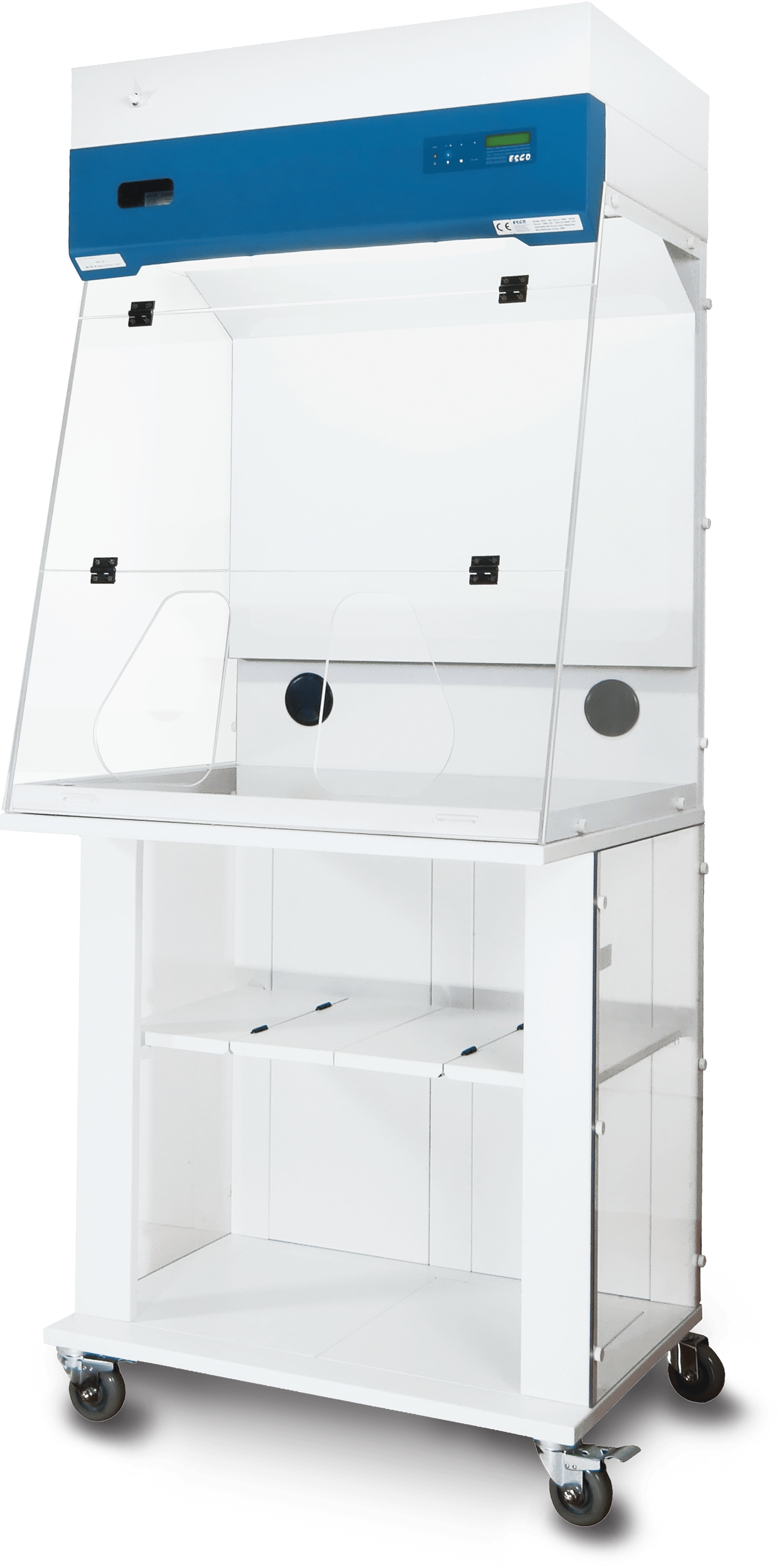

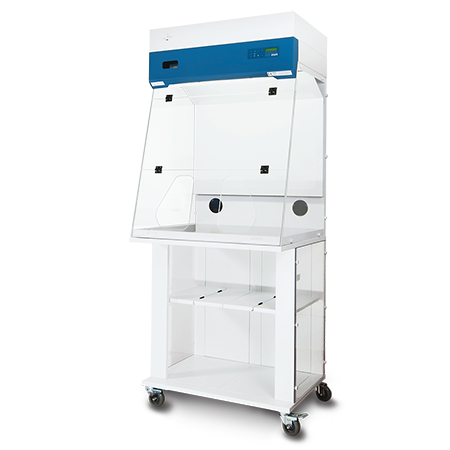

SPD-_A_ with MBC

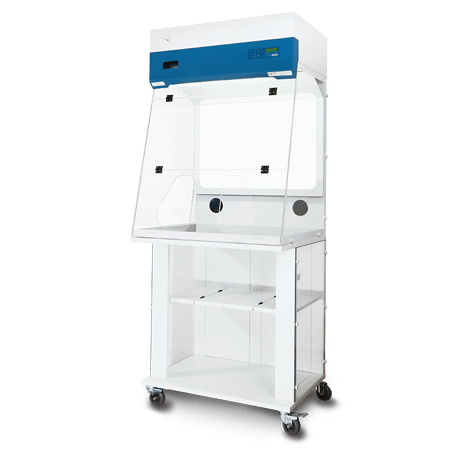

SPD-_B_ with MBC

SPD-_B_ with MBC

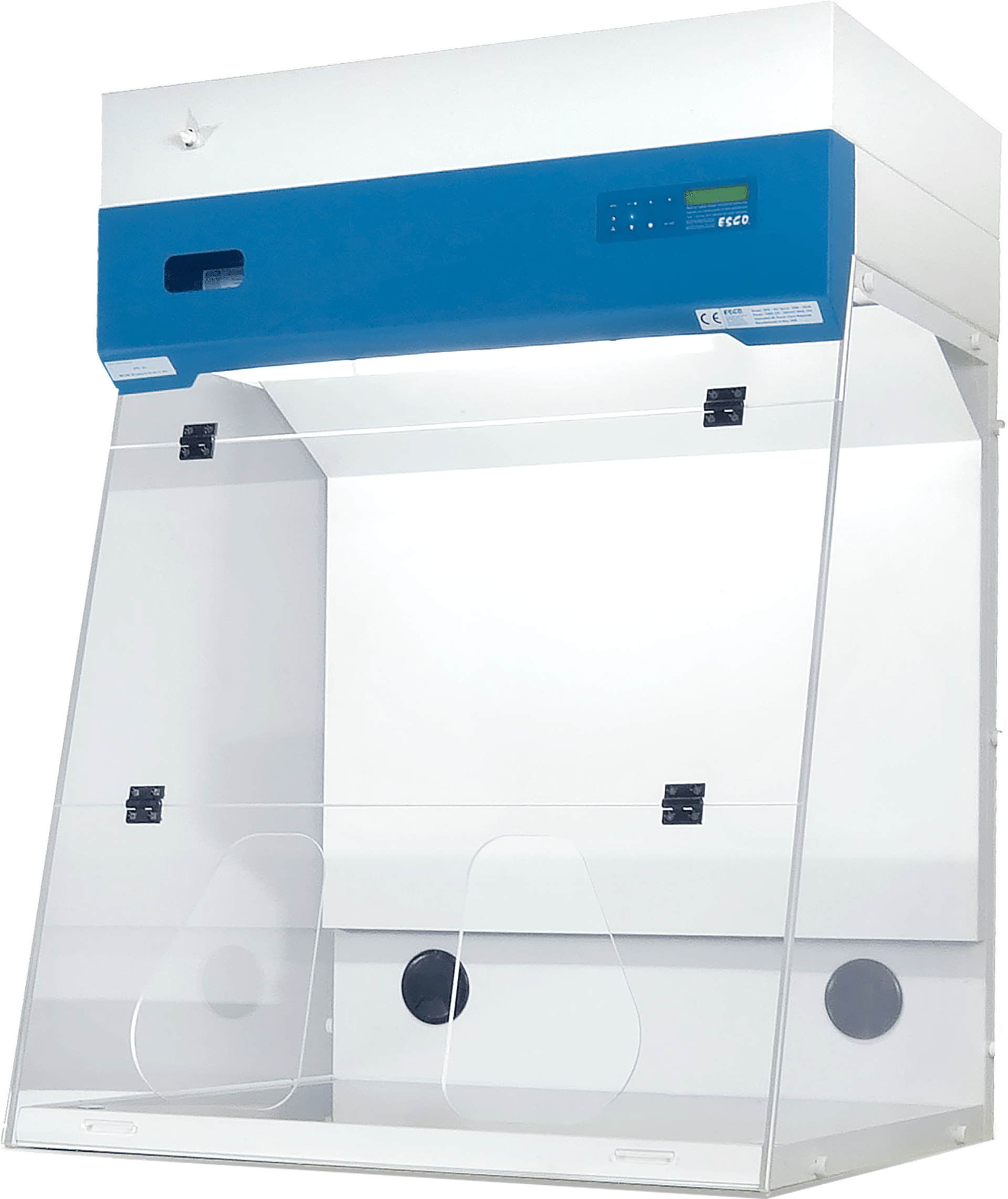

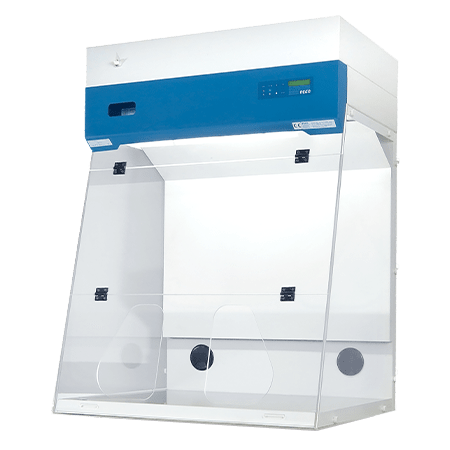

SPD-_A_

SPD-_A_

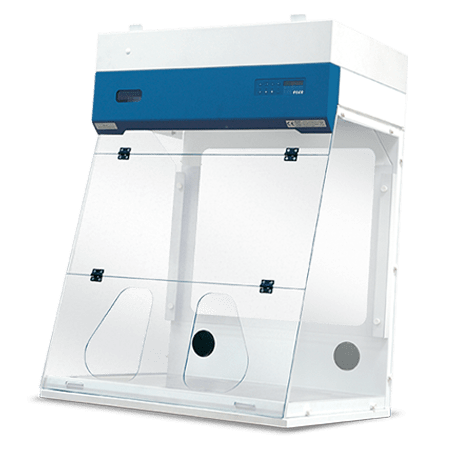

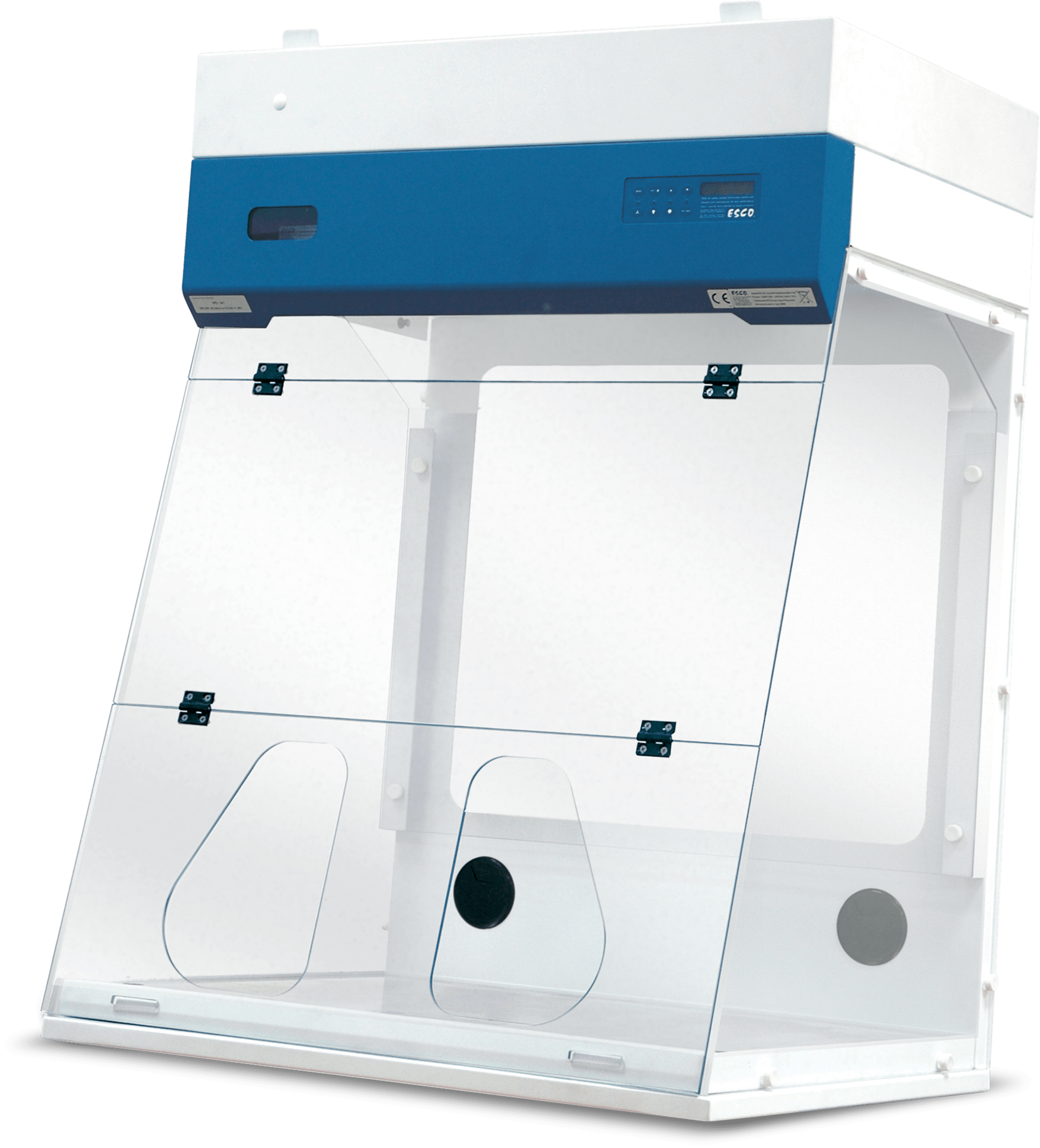

SPD-_B_

SPD-_B_

Ascent™ Opti

Esco Ascent™ Opti (SPD) ductless fume hood offers excellent containment and ergonomic features at a great value. This compact-sized and simplified ductless fume hood is complete with internal lighting, worktop, and microprocessor control system. It also features a double-hinged sash with arm ports that provides good working flexibility and high containment levels. SPD, designed with safety and comfort in mind, also offers substantial long-term savings with its low energy consumption.

Features

Double-hinged sash mechanism with arm ports

  • sash with 13° sloping to help minimize glares and reflections
  • allows easy access to work zone without risking exposure from chemical fumes
  • allows higher sash opening for effortless cabinet loading

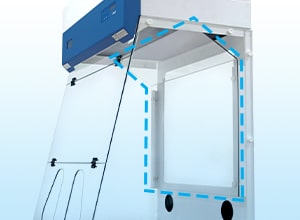

Baffles

  • Improves airflow and prevents fume accumulation in the work area.

Filtration System

  • Main Filter: Nanocarb™ Activated carbon, available in 8 types
  • Efficient perimeter clamping ensures no leakage as well as allows easy filter change procedure.

Ergonomic Features

  • Sample Port - For manual determination of filter saturation through color tubes
  • Filter ID window - to easily determine the type of carbon filter installed in the unit

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
220-240 VAC, 50 Hz
2040099SPD-3A1Ascent™ Opti Ductless Fume Hood, 3ft/0.9m
2040105SPD-4A1Ascent™ Opti Ductless Fume Hood, 4ft/1.2m
2040102SPD-3B1Ascent™ Opti Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m
2040108SPD-4B1Ascent™ Opti Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m
110-120 VAC, 60 Hz
2040100SPD-3A2Ascent™ Opti Ductless Fume Hood, 3ft/0.9m
2040106SPD-4A2Ascent™ Opti Ductless Fume Hood, 4ft/1.2m
2040103SPD-3B2Ascent™ Opti Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m
2040109SPD-4B2Ascent™ Opti Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m
220-240 VAC, 60 Hz
2040101SPD-3A3Ascent™ Opti Ductless Fume Hood, 3ft/0.9m
2040107SPD-4A3Ascent™ Opti Ductless Fume Hood, 4ft/1.2m
2040104SPD-3B3Ascent™ Opti Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m
2040110SPD-4B3Ascent™ Opti Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m

Accessories

Item CodeModel CodeDescription
Main Carbon Filters for SPD, 3 ft models
5080013CFA-6Code A Standard Filter - 745mm x 460mm x 65mm
5080022CFB-6Code B Acid Filter - 745mm x 460mm x 65mm
5080033CFC-6Code C Mercury Filter - 745mm x 460mm x 65mm
5080044CFD-6Code D Sulphur Filter - 745mm x 460mm x 65mm
5080055CFE-6Code E Halogen Filter - 745mm x 460mm x 65mm
5080066CFF-6Code F Aldehyde Filter - 745mm x 460mm x 65mm
5080077CFG-6Code G Ammonia/Amines Filter - 745mm x 460mm x 65mm
5080111CFH-6Code H Chloroform/Ethers Filter - 745mm x 460mm x 65mm
Main Carbon Filters for SPD, 4 ft models
5080012CFA-4Code A Standard Filter - 440mm x 460mm x 65mm
5080021CFB-4Code B Acid Filter - 440mm x 460mm x 65mm
5080032CFC-4Code C Mercury Filter - 440mm x 460mm x 65mm
5080043CFD-4Code D Sulphur Filter - 440mm x 460mm x 65mm
5080054CFE-4Code E Halogen Filter - 440mm x 460mm x 65mm
5080065CFF-4Code F Aldehyde Filter - 440mm x 460mm x 65mm
5080076CFG-4Code G Ammonia/Amines Filter - 440mm x 460mm x 65mm
5080110CFH-4Code H Chloroform/Ethers Filter - 440mm x 460mm x 65mm
Mobile Cart
5130196MBC-3A0Mobile Cart for SPD-3A/B
5130192MBC-4A0Mobile Cart for SPD-4A/B
