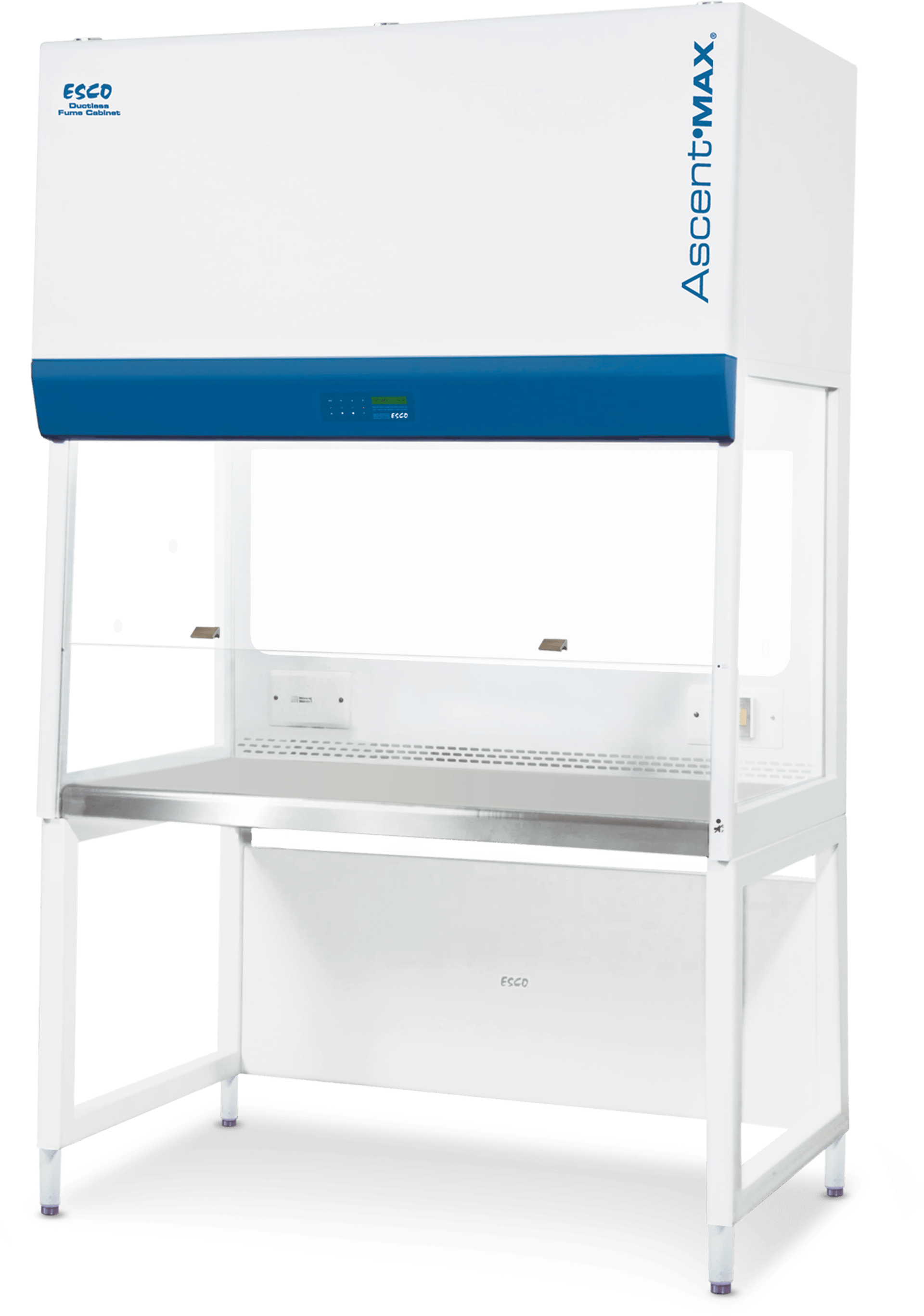

Ascent™ Max – D Series

ADC-_D_

ADC with BCC

ADC with BCC

ADC with epoxy worktop and BCC

ADC with epoxy worktop and BCC

Ascent™ Max – D Series

Esco Ascent™ Max (ADC) Ductless Fume Hood utilizes a carbon filtration system to remove toxic chemical fumes and recycle clean air back to the laboratory. This airflow principle provides operator and environment protection.

Ductless fume hoods are becoming a viable alternative to ducted fume hoods as no extraction systems are required, and its plug-and-play feature prevents any downtime in the laboratory. Esco ductless fume hoods also offer energy savings, convenience, and mobility.

Esco Ascent™ Max - D Series (ADC-D) known as the “demonstration” model has a main carbon filter and a transparent back wall constructed from tempered glass. This design allows maximum visibility and access, ideal for teaching set-ups.

Request for Quote Online Product Form

Features

Robust Hood Construction

  • Key components including Fluorescent Lamps, Motor Capacitor, Electrical parts, and Switch Control are mounted outside the airstream and away from contaminated areas to permit easy service.

Centrifugal Fan

  • Permanently lubricated fans are energy-efficient with external rotor motor design that reduces operating costs.
  • Extremely low noise and low vibration level

Filtration System

  • Main Filter: Nanocarb™ Activated carbon, available in 8 types
  • Efficient perimeter clamping ensures no leakage as well as allows easy filter change procedure.

Optional VOC Sensor

  • Detects presence of volatile organic compounds in the exhaust and alarms to indicate filter saturation

Worktop Options

  • Standard SS steel worktop can be upgraded to phenolic resin or epoxy for better chemical resistance

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
220-240 VAC, 50 Hz
2040036ADC-3D1Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m
2040167ADC-3D1-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m,
with PP drip-cup provision
2040054ADC-4D1Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m
2040146ADC-4D1-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m,
with PP drip-cup provision
2040072ADC-5D1Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 5ft/1.5m
2040149ADC-5D1-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 5ft/1.5m,
with PP drip-cup provision
2040090ADC-6D1Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 6ft/1.8m
2040152ADC-6D1-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 6ft/1.8m
110-120 VAC, 60 Hz
2040037ADC-3D2Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m
2040168ADC-3D2-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m,
with PP drip-cup provision
2040055ADC-4D2Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m
2040147ADC-4D2-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m ,
with PP drip-cup provision
2040073ADC-5D2Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 5ft/1.5m
2040150ADC-5D2-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 5ft/1.5m,
with PP drip-cup provision
2040091ADC-6D2Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 6ft/1.8m
2040153ADC-6D2-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 6ft/1.8m,
with PP drip-cup provision
220-240 VAC, 60 Hz
2040038ADC-3D3Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m
2040169ADC-3D3-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m,
with PP drip-cup provision
2040056ADC-4D3Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m
2040148ADC-4D3-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m,
with PP drip-cup provision
2040074ADC-5D3Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 5ft/1.5m
2040151ADC-5D3-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 5ft/1.5m,
with PP drip-cup provision
2040092ADC-6D3Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 6ft/1.8m
2040154ADC-6D3-PPAscent™ Max Ductless Fume Hood with Transparent Back Wall, 6ft/1.8m,
with PP drip-cup provision

Accessories

Item CodeModel CodeDescription
Main Carbon Filters for 2 ft models
5080003CFA-11Code A Standard Filter - 425mm x 520mm x 65mm
5080095CFB-11Code B Acid Filter - 425mm x 520mm x 65mm
5080028CFC-11Code C Mercury Filter - 425mm x 520mm x 65mm
5080039CFD-11Code D Sulphur Filter - 425mm x 520mm x 65mm
5080050CFE-11Code E Halogen Filter - 425mm x 520mm x 65mm
5080061CFF-11Code F Aldehyde Filter - 425mm x 520mm x 65mm
5080072CFG-11Code G Ammonia/Amines Filter - 425mm x 520mm x 65mm
5080104CFH-11Code H Chloroform/Ether Filter - 425mm x 520mm x 65mm
Main Carbon Filters for 3 ft models
5080001CFA-1Code A Standard Filter - 440mm x 520mm x 65mm
5080017CFB-1Code B Acid Filter - 440mm x 520mm x 65mm
5080026CFC-1Code C Mercury Filter - 440mm x 520mm x 65mm
5080037CFD-1Code D Sulphur Filter - 440mm x 520mm x 65mm
5080048CFE-1Code E Halogen Filter - 440mm x 520mm x 65mm
5080059CFF-1Code F Aldehyde Filter - 440mm x 520mm x 65mm
5080070CFG-1Code G Ammonia/Amines Filter - 440mm x 520mm x 65mm
5080133CFH-1Code H Chloroform/Ethers Filter - 440mm x 520mm x 65mm
Main Carbon Filters for 4 and 6 ft models
5080010CFA-2Code A Standard Filter - 595mm x 520mm x 65mm
5080019CFB-2Code B Acid Filter - 595mm x 520mm x 65mm
5080030CFC-2Code C Mercury Filter - 595mm x 520mm x 65mm
5080041CFD-2Code D Sulphur Filter - 595mm x 520mm x 65mm
5080052CFE-2Code E Halogen Filter - 595mm x 520mm x 65mm
5080063CFF-2Code F Aldehyde Filter - 595mm x 520mm x 65mm
5080074CFG-2Code G Ammonia/Amines Filter - 595mm x 520mm x 65mm
5080120CFH-2Code H Chloroform/Ethers Filter - 595mm x 520mm x 65mm
Main Carbon Filters for 5 ft models
5080011CFA-3Code A Standard Filter - 745mm x 520mm x 65mm
5080020CFB-3Code B Acid Filter - 745mm x 520mm x 65mm
5080031CFC-3Code C Mercury Filter - 745mm x 520mm x 65mm
5080042CFD-3Code D Sulphur Filter - 745mm x 520mm x 65mm
5080053CFE-3Code E Halogen Filter - 745mm x 520mm x 65mm
5080064CFF-3Code F Aldehyde Filter - 745mm x 520mm x 65mm
5080075CFG-3Code G Ammonia/Amines Filter - 745mm x 520mm x 65mm
5080100CFH-3Code H Chloroform/Ethers Filter - 745mm x 520mm x 65mm
Service Fixtures
5170015SF-1G50European Style Service Fixture with 50mm Thread Length - Gas
5170004SF-1V50European Style Service Fixture with 50mm Thread Length - Vacuum
5170012SF-1N50European Style Service Fixture with 50mm Thread Length - Nitrogen
5170007SF-1A50European Style Service Fixture with 50mm Thread Length - Air
5170009SF-1W50European Style Service Fixture with 50mm Thread Length - Water
5170019SF-2U50American Style Service Fixture with 50mm Thread Length - Universal
5170026CU-PipeCopper Piping for Service Fixture - Must be Factory Installed
5070086SL-ValveSolenoid Valve Fitting - Must be Factory Installed
Support Stands and Base cabinets
SPC-_A0 Gen2Support Stand with Caster Wheels (Height 28”)
SPC-_B0 Gen 2Support Stand with Caster Wheels (Height 34”)
SAL-_A0 Gen2Support Stand with Levelling Feet (Height 28”)
SAL-_B0 Gen 2Support Stand with Levelling Feet (Height 34”)
BCCBase cabinet with caster wheels
Others
5170334VOC-SRVOC Sensor for Ascent™ Max Ductless Fume Hood
5170001WF-PPSwan-neck Faucet and PP Drip Cup
