Laboratory Oven

ProductsLaboratory Oven › Isotherm® Forced Convection Lab Oven

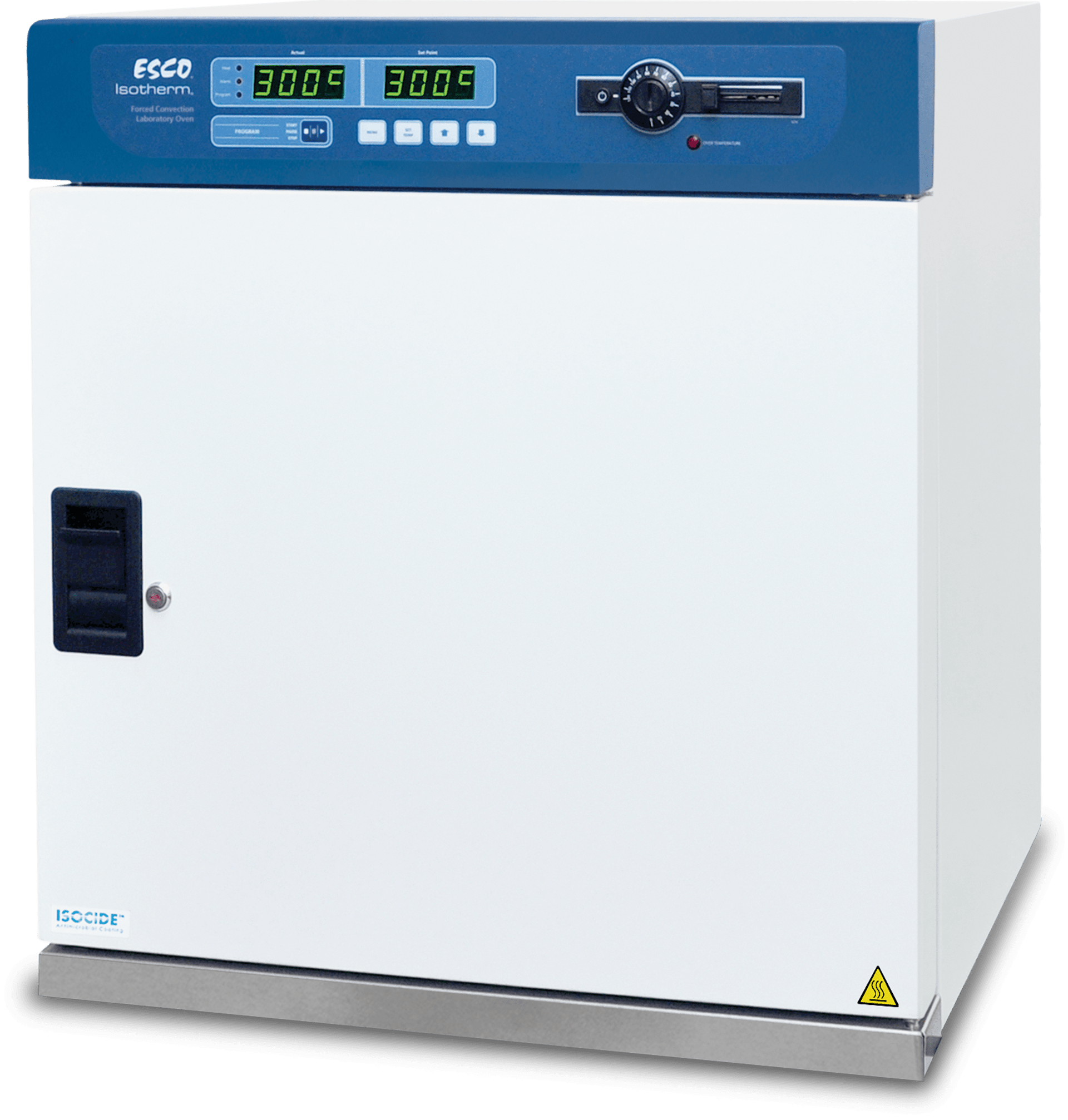

Isotherm® Forced Convection Lab Oven

OFA-_-_

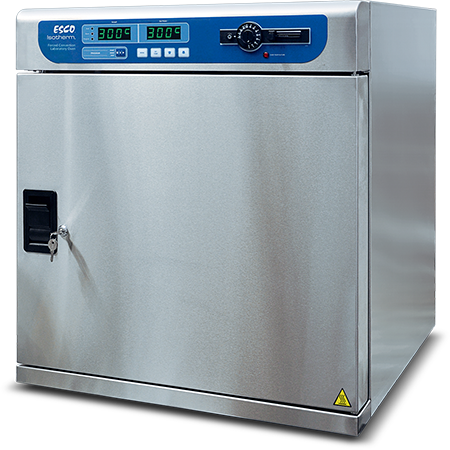

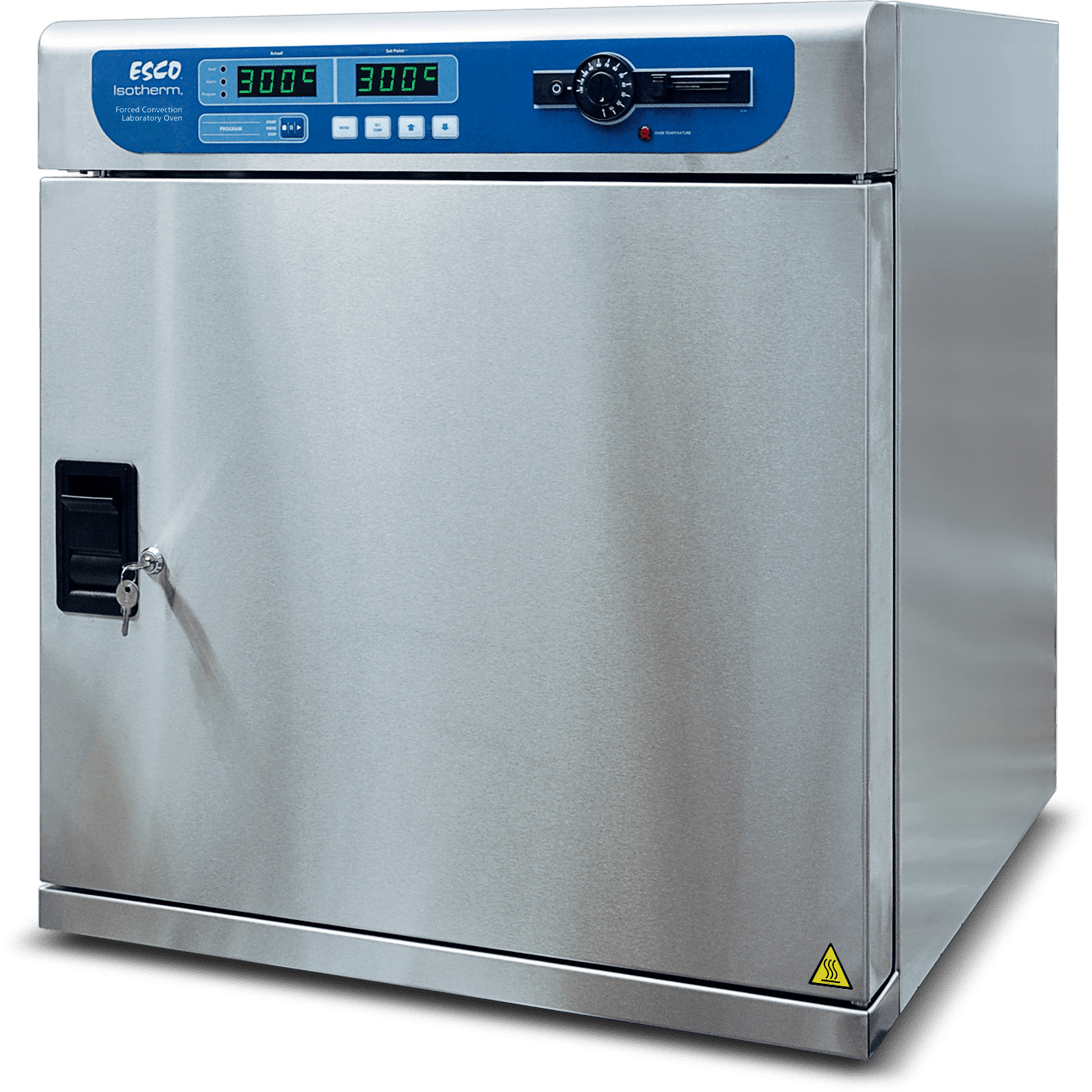

Isotherm® Forced Convection Lab Oven with SS Exterior

OFA-_-_-SS

Isotherm® Forced Convection Lab Oven

Isotherm® Forced Convection Laboratory Oven offers maximum thermal performance. This lab equipment is used to perform precise drying, heating, annealing, and sterilizing of samples/agents from 7.5°C above ambient to 300°C. Esco laboratory oven has ergonomic and intuitive interfaces, microprocessor PID controls with programming options, 4-zone heated air jacket, precisely tuned and tested ventilation, and insulation package ideal for your research, industry, and quality assurance needs.

Ovens can vary in size. Typically, a lab oven has a capacity of 28 liters (1 ft3) to 240 liters (8.5 ft3) with temperatures that can reach 200°C (392°F) to 300°C (572°F).

Applications:
  • Curing
  • Drying
  • Heated storage
  • Material testing
  • Vulcanization

Features

Ventiflow™ Ventilation System

  • Forced convection design
  • Permanently lubricated maintenance-free German-made ebm-papst® fan

Pre-heat Chamber Technology

  • Ensures stable heating and maximum temperature uniformity in the chamber

SmartSense™ Microprocessor PID Control Technology

  • Twin temperature display for easy monitoring
  • Connected to an instrument-grade precision platinum temperature probe

Easy-to-Clean

  • Minimal joints and crevices
  • Single piece stainless steel chamber with rounded corners
  • Directly mounted shelves

Accessible via Software

  • Remote monitoring, data logging, and programming
  • RS-485 communication protocol

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure
    For electrogalvanized steel model only.

Models

Item CodeModel CodeDescription
2110001OFA-32-8Isotherm® General Purpose Oven, 32 L, 220-240 VAC 50/60 Hz
2110010OFA-32-9Isotherm® General Purpose Oven, 32 L, 110-120 VAC 50/60 Hz
2110002OFA-54-8Isotherm® General Purpose Oven, 54 L, 220-240 VAC 50/60 Hz
2110009OFA-54-9Isotherm® General Purpose Oven, 54 L, 110-120 VAC 50/60 Hz
2110003OFA-110-8 Isotherm® General Purpose Oven, 110 L, 220-240 VAC 50/60 Hz
2110008OFA-110-9Isotherm® General Purpose Oven, 110 L, 110-120 VAC 50/60 Hz
2110002OFA-170-8Isotherm® General Purpose Oven, 170 L, 220-240 VAC 50/60 Hz
2110007OFA-240-8Isotherm® Forced Convection Oven, 240 L, 220-240 VAC, 50/60 Hz
2110012OFA-32-8-SSIsotherm® Forced Convection Oven, Stainless Steel Exterior Cabinet, 32 L, 220-240 VAC, 50/60 Hz
2110023OFA-32-9-SSIsotherm® Forced Convection Oven, Stainless Steel Exterior Cabinet, 32 L, 110-120 VAC, 50/60 Hz
2110013OFA-54-8-SSIsotherm® Forced Convection Oven, Stainless Steel Exterior Cabinet, 54 L, 220-240 VAC, 50/60 Hz
2110022OFA-54-9-SSIsotherm® Forced Convection Oven, Stainless Steel Exterior Cabinet, 54 L, 110-120 VAC, 50/60 Hz
2110014OFA-110-8-SSIsotherm® Forced Convection Oven, Stainless Steel Exterior Cabinet, 110 L, 220-240 VAC, 50/60 Hz
2110011OFA-110-9-SSIsotherm® Forced Convection Oven, Stainless Steel Exterior Cabinet, 110 L, 110-120 VAC, 50/60 Hz
2110015OFA-170-8-SSIsotherm® Forced Convection Oven, Stainless Steel Exterior Cabinet, 170 L, 220-240 VAC, 50/60 Hz
2110016OFA-240-8-SSIsotherm® Forced Convection Oven, Stainless Steel Exterior Cabinet, 240 L, 220-240 VAC, 50/60 Hz

Accessories

Item CodeModel CodeDescription
5070326TOA-1005Wall bracket for 32 L
5070327TOA-1006Wall bracket for 54 L
5130106TOA-1007Support stand, 715mm (28") for 32 L
5130107TOA-1008Support stand, 715mm (28") for 54 L
5130108TOA-1009Support stand, 715mm (28") for 110 L
5130141TOA-1010Support stand, 715mm (28") for 170 L
5130110TOA-1017Support stand, 715mm (28") for 240 L
5070328TOA-1012Additional shelves for 32 L
5070329TOA-1013Additional shelves for 54 L
5070330TOA-1014Additional shelves for 110 L
5070331TOA-1018Additional shelves for 170 L
5070332TOA-1019Additional shelves for 240 L
5070609TOA-1020IQ/OQ Document
52500015250001-UVoyager Sofware Kit
