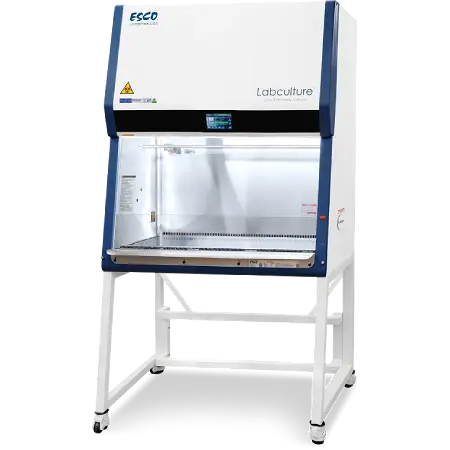

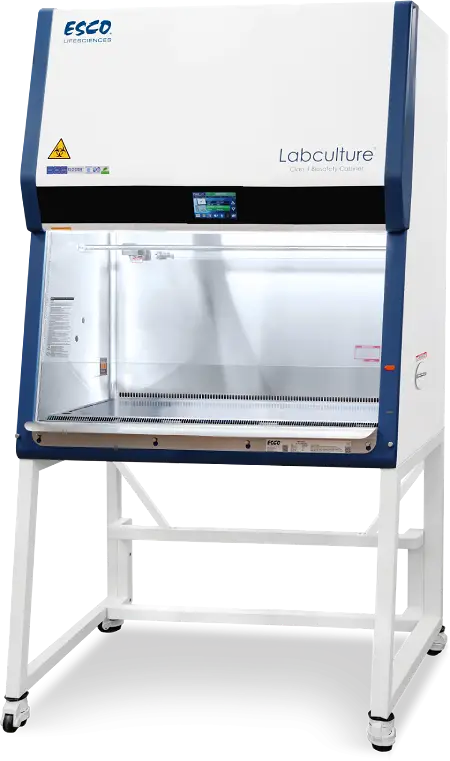

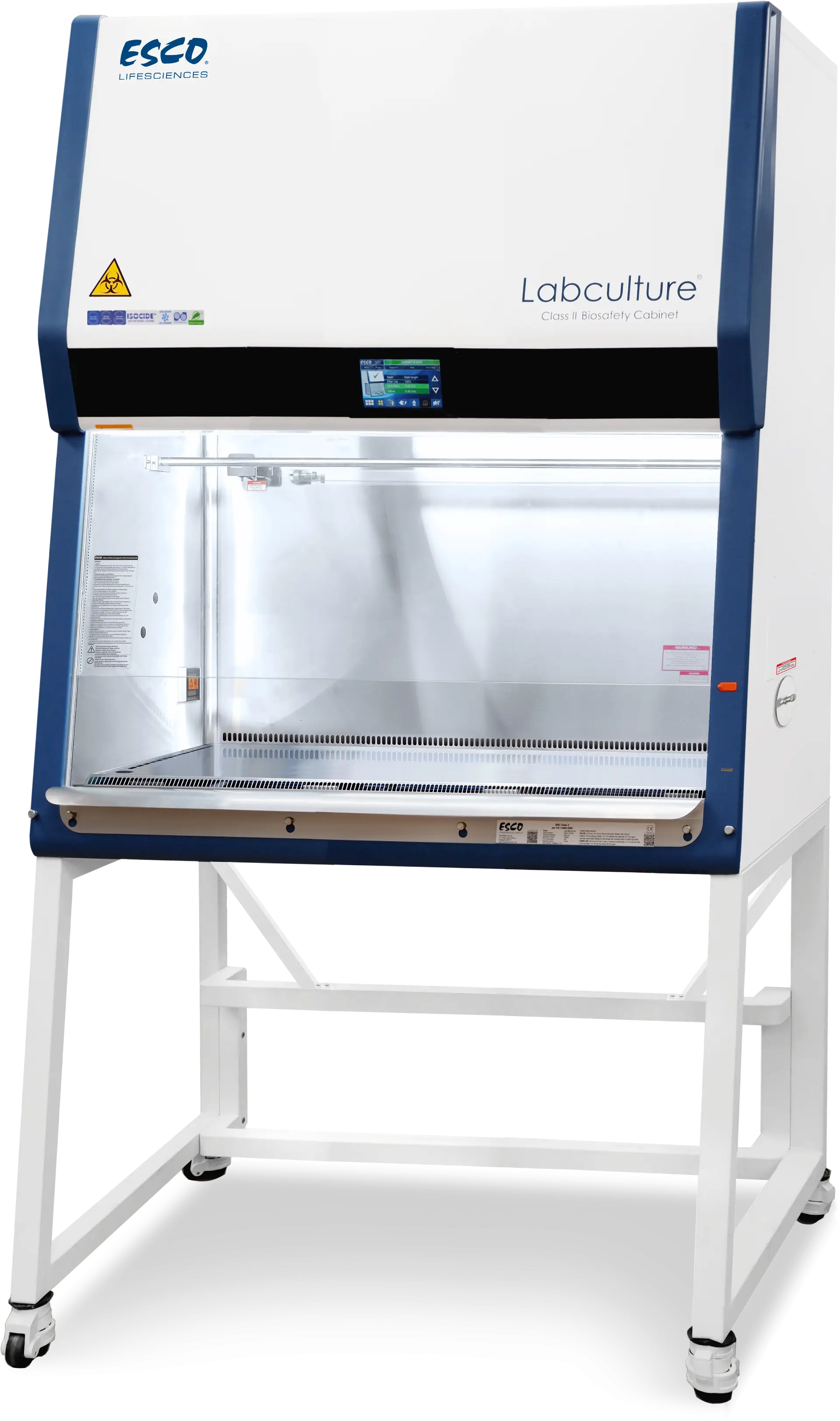

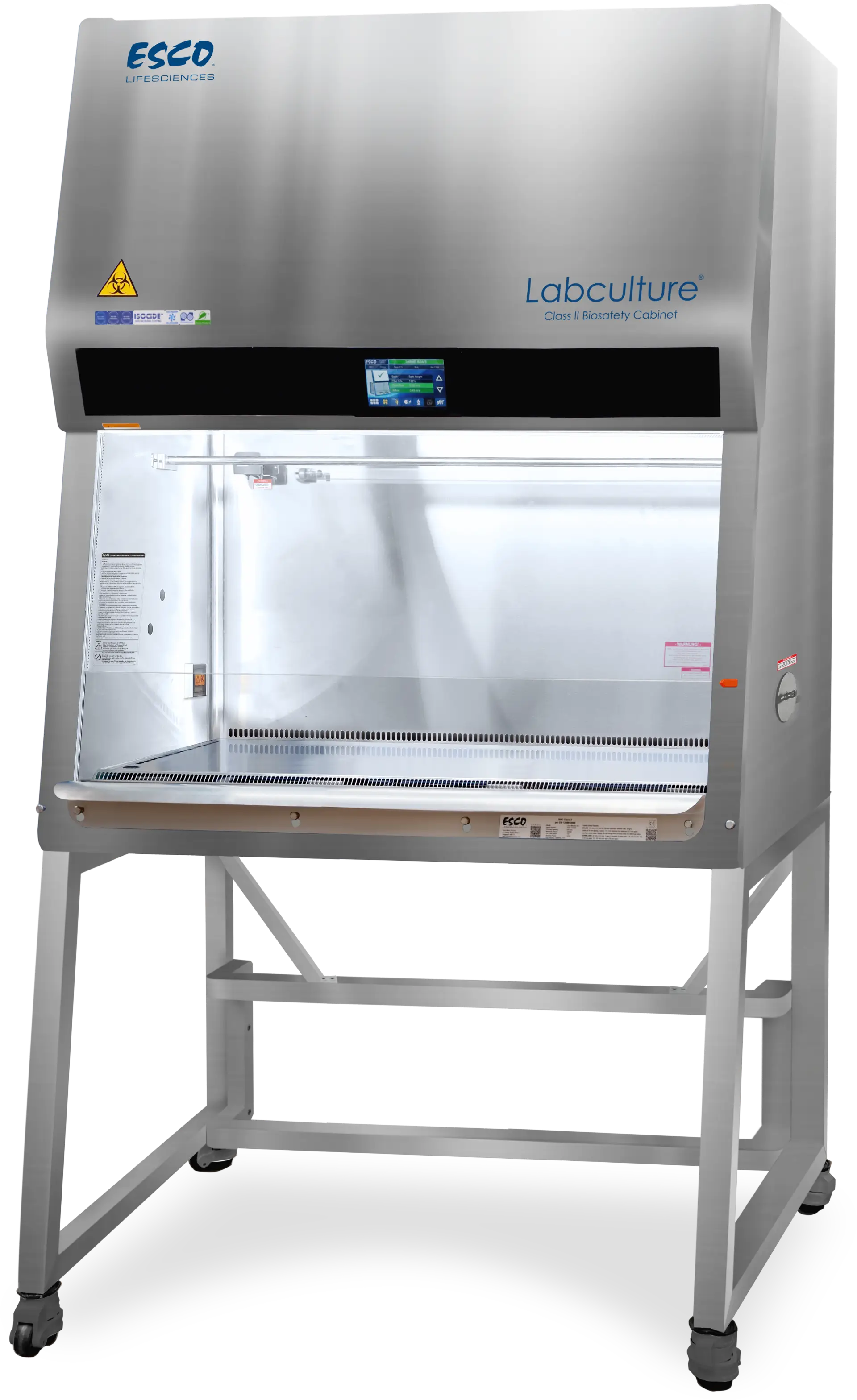

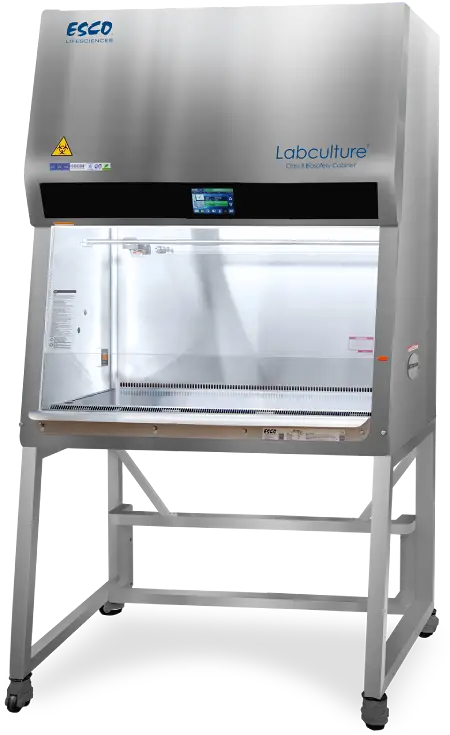

Labculture^® (G-series) G4 Class II Biological Safety Cabinet

The most advanced Biosafety Cabinet for cGMP pharmaceutical compounding in cleanroom environments. Certified for cleanroom compatibility under ISO Class 4 in table ISO 14644-1:2015.

Labculture® G-Series G4 (LA2-G G4) features an ergonomic work zone designed for maximum user comfort and efficiency. It is equipped with industry-leading dimmable LED lighting for bright, adjustable illumination, and constructed with raised, durable SS316L stainless steel for internal surfaces.

Request for Quote Online Product Form

Features

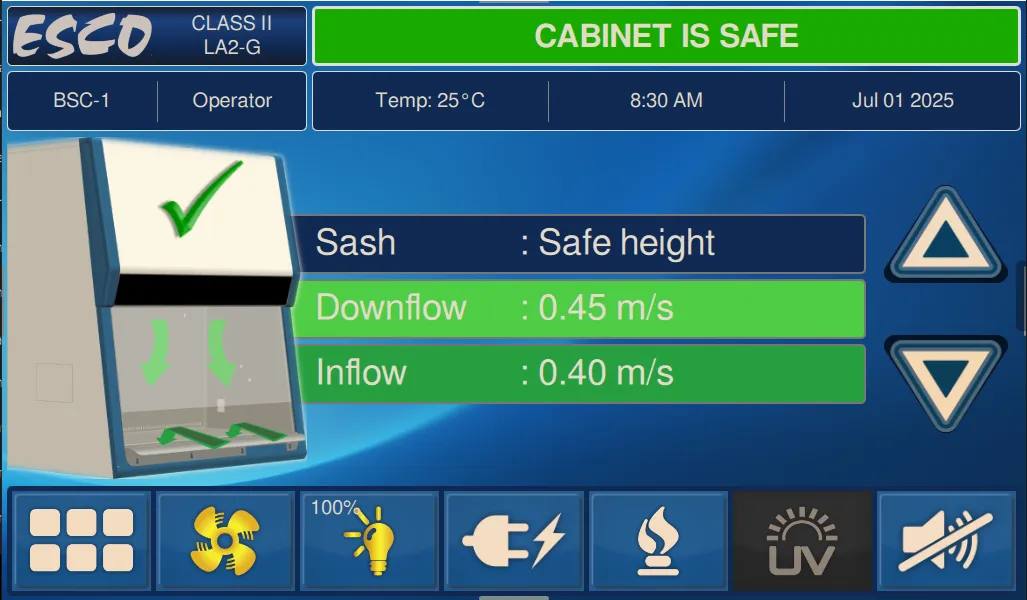

	Centurion Touchscreen Controller 21 CFR Part 11 Compliant Controller, where the data can’t be altered Intuitive, comprehensive, and easy-to-understand Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram Defined details of alarm types with clear instructions for proper intervention Centered and angled down for easy reach & viewing Selectable Quickstart mode for fast operation
	Cabinet Construction Standard Stainless Steel 316L interior to better withstand stronger decontaminants such as Spor-Klenz™, and optional Stainless Steel 304 or 316L exterior Stainless steel side walls with side capture zones and negative pressure to optimize containment Single-piece work tray, spill retaining and easy to clean

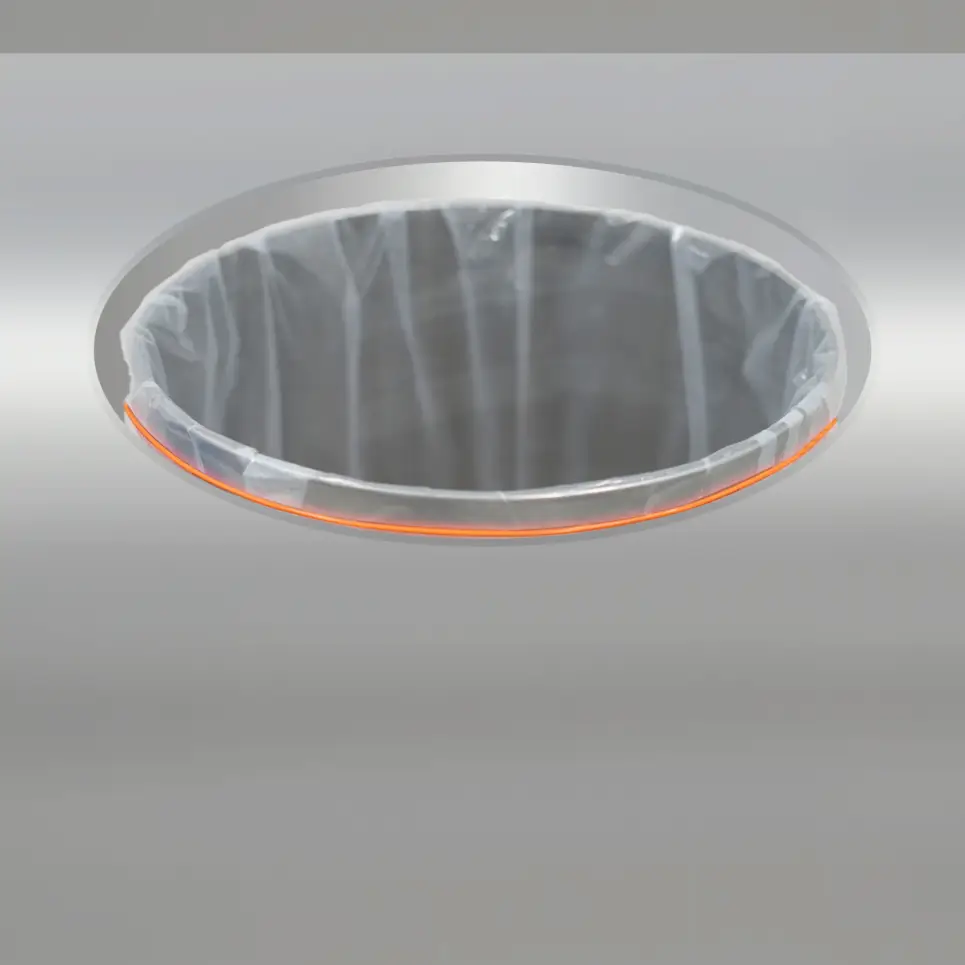

	Drum Transfer Optional cutout on the tray and drain pan for bulk powder transfer to smaller bottles Economical alternative to Downflow Booth
	ISO Class 4 Cleanroom Compatibility Certified for ISO Class 4 cleanroom compatibility per ISO 14644-1:2015 by TÜV-SÜD Tested with particle counters placed outside the cabinet to verify that the BSC won’t release excess particles during normal operation

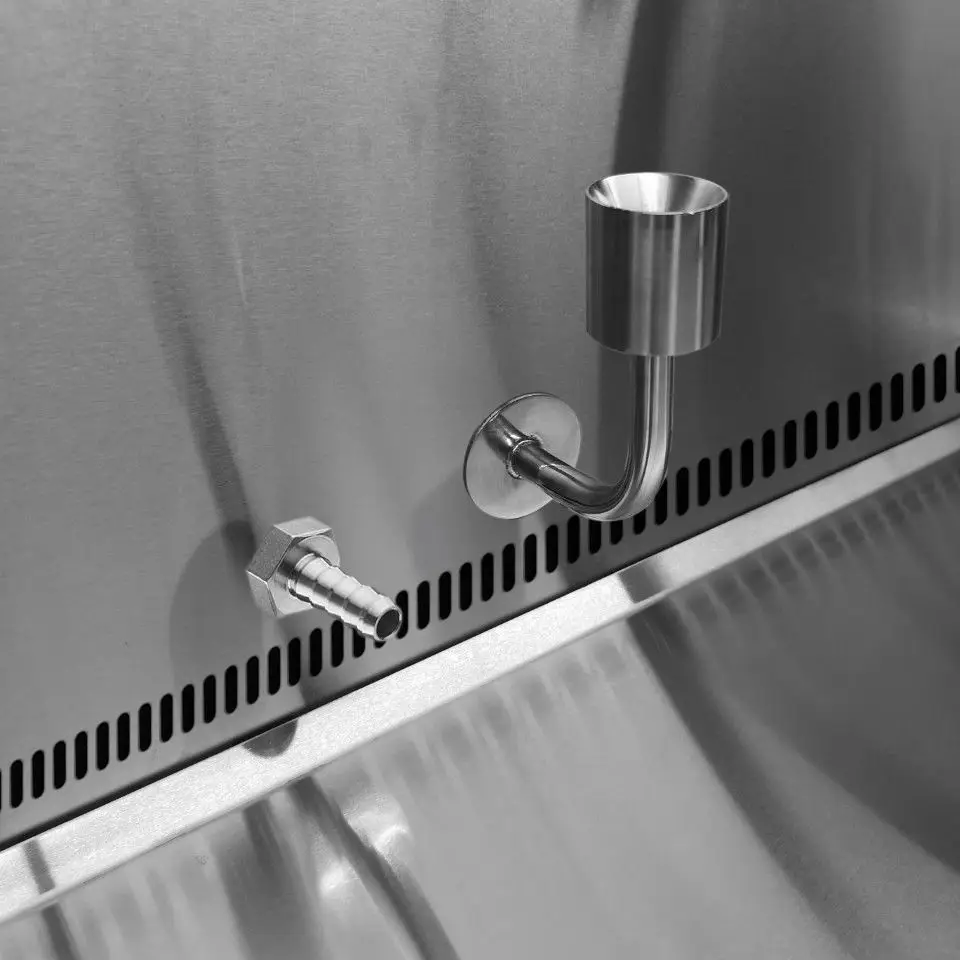

	Viable and Non-Viable Particle Counter Probes Optional Viable Sampling Port to detect and measure living microorganisms inside the workzone Optional Non-Viable Sampling Cone to monitor the number of particles inside the workzone

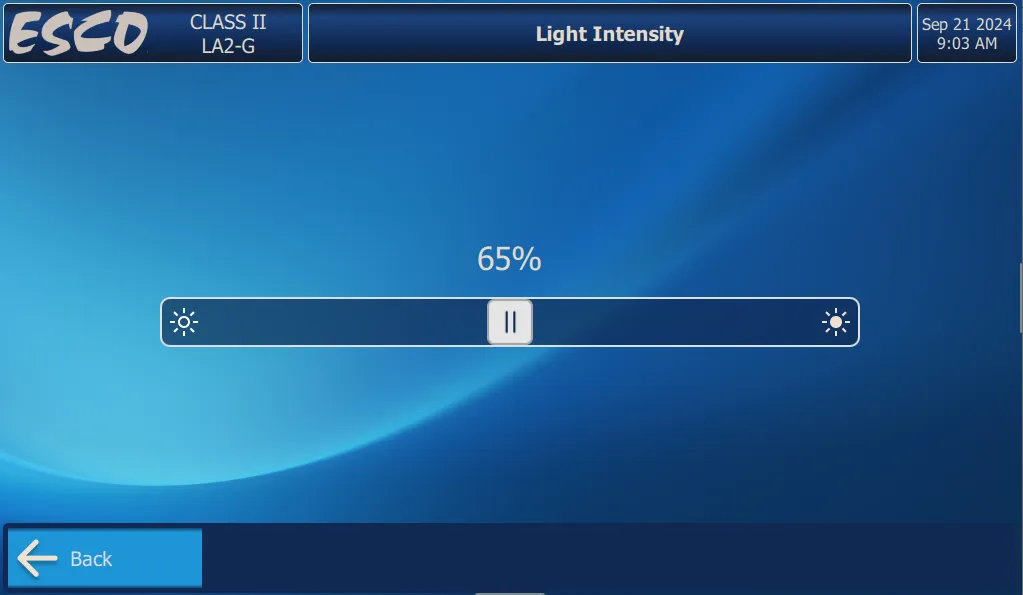

	Dimmable LED Adjustable work zone brightness Ideal light intensity of 1000 lux Saves energy and optimizes work comfort
	Ergonomic Features 200 mm sash opening Frameless, shatterproof, and UV-absorbing tempered glass Motorized window Aerosol tight window seal
	Tiltable Sash For easy cleaning of the inner sash glass
	USB Port and Remote Modbus USB port to access cabinet data log and BMS connectivity Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.
	Green Product Equipped with energy-efficient Dual DC ECM that allows up to 70% energy savings vs AC motor Standby mode allows reduced power consumption
	ULPA Filter 10x filtration efficiency compared to the HEPA filter Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5 Reduce less particle release to the cleanroom, achieving ISO Class 4 Same 10 years filter life and replacement cost as HEPA filters
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
2011959	LA2-4G8 G4	Labculture® -G G4 Class II Biological Safety Cabinet, 4ft/1.2m, 220-240 VAC, 50/60 Hz

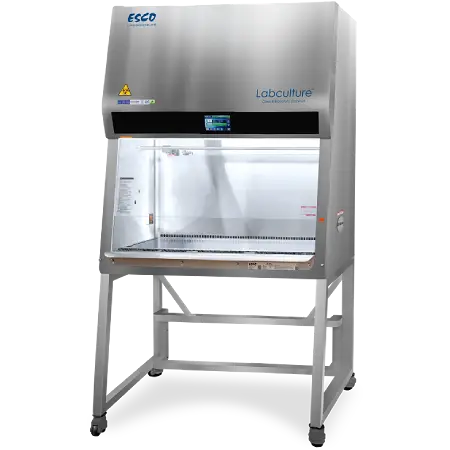

2011707	LA2-4G8-S4 G4	Labculture® -G G4 Class II Biological Safety Cabinet, Full Stainless Steel 304, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2011708	LA2-4G8-S6 G4	Labculture® -G G4 Class II Biological Safety Cabinet, Full Stainless Steel 316L, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2011961	LA2-6G8 G4	Labculture® -G G4 Class II Biological Safety Cabinet, 6ft/1.8m, 220-240 VAC, 50/60 Hz
2011709	LA2-6G8-S4 G4	Labculture® -G G4 Class II Biological Safety Cabinet, Full Stainless Steel 304, 6ft/1.8m, 220-240 VAC, 50/60 Hz
2011710	LA2-6G8-S6 G4	Labculture® -G G4 Class II Biological Safety Cabinet, Full Stainless Steel 316L, 6ft/1.8m, 220-240 VAC, 50/60 Hz

Accessories

Item Code	Model Code	Description
5170255	UV-30A-L	UV Lamp for 1.2m (4 ft) and 1.8m (6 ft) Cabinets
	EO _	Electrical Outlet (Direct Mounted) x 2
IV Bars
5170231	IV-1215	IV Bar 1215 mm
5170501	IV-1825	IV Bar 1825 mm
Support Stands
5131344	SPEU-4A0	Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 1.2m (4 ft) cabinets
5131614	SPEU-4A0-S4	Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 1.2m (4 ft) cabinets, Full Stainless Steel 304
5131615	SPEU-4A0-S6	Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 1.2m (4 ft) cabinets, Full Stainless Steel 316L
5131456	SPEU-6A0	Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 1.8m (6 ft) cabinets
5131616	SPEU-6A0-S4	Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 1.8m (6 ft) cabinets, Full Stainless Steel 304
5131617	SPEU-6A0-S6	Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 1.8m (6 ft) cabinets, Full Stainless Steel 316L
5131458	SPEU-4B0	Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 1.2m (4 ft) cabinets
5131460	SPEU-6B0	Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 1.8m (6 ft) cabinets
5131623	STL-4A0 G4	Support Stand w/ Telescoping and Leveling feet (660-960 mm with 50 mm increment) for 1.2m (4 ft) cabinets
5131625	STL-6A0 G4	Support Stand w/ Telescoping and Leveling feet (660-960 mm with 50 mm increment) for 1.8m (6 ft) cabinets
Service Fixtures
5170410	SF-1G20	European Style Service Fixture with 20mm Thread Length - Gas
5170457	SF-1V20	European Style Service Fixture with 20mm Thread Length - Vacuum
5170502	SF-1A20	European Style Service Fixture with 20mm Thread Length - Air
5170503	SF-1N20	European Style Service Fixture with 20mm Thread Length - Nitrogen
5170458	SF-1W20	European Style Service Fixture with 20mm Thread Length - Water
5170504	SF-2U22	American Style Service Fixture with 22mm Thread Length - Universal
5170026	COPPER PIPING	Copper Piping for Service Fixture - Must be Factory Installed
5070086	SOLENOID GAS VALVE 230 VAC	Solenoid Gas Valve
Exhaust Collars
5171187	ECO-LA2EU-4FT G4	Thimble Exhaust Collar for LA2-4-G G4
5171189	ECO-LA2EU-6FT G4	Thimble Exhaust Collar for LA2-6-G G4
Exhaust Accessories
5170352	ABBV-10P	Anti-blowback Valve 10 inches
5170354	ABBV-10S	Anti-blowback Valve 10 inches (304 Stainless Steel)
5170104	B2-DAMPER	Manual Volumetric Exhaust Damper
Decontamination Kit
5170552	VHP In Port	Front Decon Cover with VHP-In Port
5075043	VHP-OUT TOP BOX LA2-4-EU G4	Decon Cover with VHP-Out Port (without Ducting), for LA2-4-G G4
5075045	VHP-OUT TOP BOX LA2-6-EU G4	Decon Cover with VHP-Out Port (without Ducting), for LA2-6-G G4
5171312	ECO- W/ VHP-OUT LA2-4-G G4	Exhaust Collar with VHP out port, for LA2-4-G G4
5171314	ECO- W/ VHP-OUT LA2-6-G G4	Exhaust Collar with VHP out port, for LA2-6-G G4
5171394	Decon clamping kit for LA2-4-G G4	Decon clamping kit for LA2-4-G G4
5171396	Decon clamping kit for LA2-6-G G4	Decon clamping kit for LA2-6-G G4
Pre-Filters
5090062	PF-42	Prefilter, 1200x125x6mm, LA2-G 4ft G4
5090064	PF-44	Prefilter, 1810x125x6mm, LA2-G 6ft G4
Others
5170127	MEWREST	Arm Rest Padding
5170073	FT-REST	Foot Rest
9010179		IQ/OQ Protocol
5171459	Machine Stand, 300x280mm	Particle Counter Instrument Machine Stand, EG
5022267	Machine Stand, 300x280mm	Particle Counter Instrument Machine Stand, SS304
5022268	Machine Stand, 300x280mm	Particle Counter Instrument Machine Stand, SS316L
