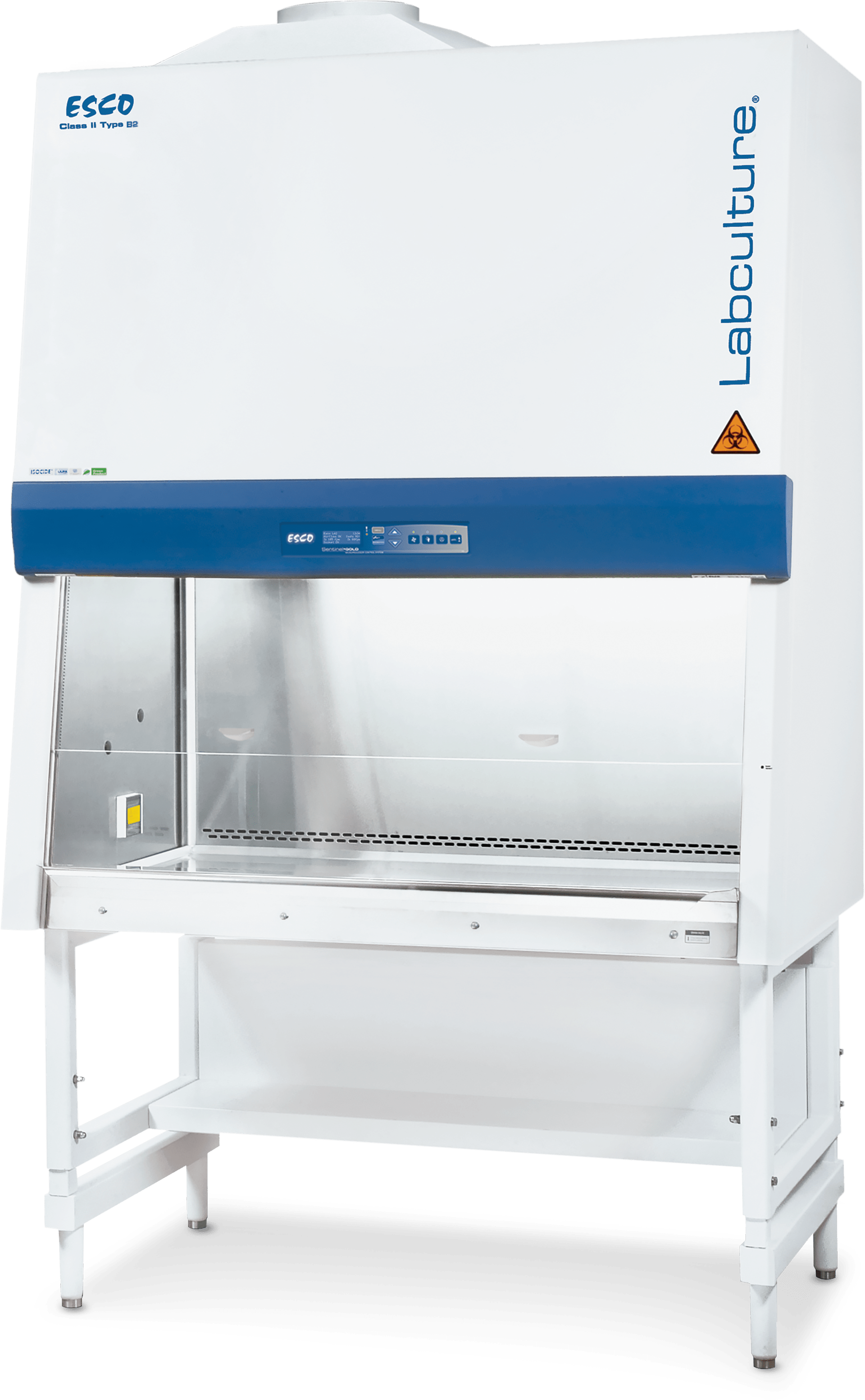

Labculture® Class II Type B2 (Total Exhaust) Biosafety Cabinets

LB2-_B_-E

Labculture® Class II Type B2 (Total Exhaust) Biosafety Cabinets

Esco Labculture® Class II Type B2 biosafety cabinets (LB2) are NSF-49 certified and  are designed to provide operator, product, and environmental protection in experiments where recirculation of filtered air is prohibited, most likely due to the presence of chemical fumes emitted during the process.

*This cabinet requires an external blower

Features

Sentinel™ Gold Microprocessor Control system

  • Displays basic parameters such as airflow on one screen
  • Has audible and visual alarms

Esco Dynamic Chamber

  • This plenum design delivers quiet and uniform airflow

Filtration system

  • Long Life ULPA supply filter
  • HEPA exhaust filter

Single-piece Internal work zone

  • Large radius for easy cleaning
  • Eliminates welded joints to prevent accumulation of contaminants

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
220-240 VAC, 50 Hz
2010708LB2-3B1-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 3ft/0.9m
2010673LB2-4B1-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 4ft/1.2m
2010674LB2-5B1-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 5ft/1.5m
2010682LB2-6B1-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 6ft/1.8m
2011215LB2-8B1-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 8ft/2.4m
110-120 VAC, 60 Hz
2010709LB2-3B2-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 3ft/0.9m
2010694LB2-4B2-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 4ft/1.2m
2010695LB2-5B2-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 5ft/1.5m
2010696LB2-6B2-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 6ft/1.8m
2011206LB2-8B2-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 8ft/2.4m
220-240 VAC, 60 Hz
2010710LB2-3B3-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 3ft/0.9m
2010688LB2-4B3-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 4ft/1.2m
2010689LB2-5B3-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 5ft/1.5m
2010690LB2-6B3-ELabculture® Class II B2 (Total Exhaust) Biological Safety Cabinet, 6ft/1.8m

Accessories

Item CodeModel CodeDescription
5170251UV-15AUV Lamp for 2ft, 3ft Cabinets and AC3-4B
5170255UV-30AUV Lamp for 4ft, 5ft, 6ft Cabinets except AC3-4B
Service Fixtures
5170410SF-1G20European Style Service Fixture with 20mm Thread Length - Gas
5170457SF-1V20European Style Service Fixture with 20mm Thread Length - Vacuum
5170503SF-1N20European Style Service Fixture with 20mm Thread Length - Nitrogen
5170502SF-1A20European Style Service Fixture with 20mm Thread Length - Air
5170458SF-1W20European Style Service Fixture with 20mm Thread Length - Water
5170504SF-2U22American Style Service Fixture with 22mm Thread Length - Universal
5170026CU-PipeCopper Piping for Service Fixture - Must be Factory Installed
Support Stands
SPC-_A0 Gen2Support Stand with Caster Wheels (Height 28”)
SPC-_B0 Gen 2Support Stand with Caster Wheels (Height 34”)
SPL-_A0 Gen 2Support Stand with Leveling Feet - II (Height 28”)
SPL-_B0 Gen 2Support Stand with Leveling Feet - II (Height 34”)
IV Bars
5170276IV-955IV Bar 955mm
5170277IV-1260IV Bar 1260mm
5170278IV-1565IV Bar 1565mm
5170279IV-1870IV Bar 1870mm
Inlet Collars
5170320ICO-LB23Inlet Collar for LB2-3A (diameter-10 inches)
5170263ICO-LB24Inlet Collar for LB2-4A (diameter-10 inches)
5170316ICO-LB25Inlet Collar for LB2-5A (diameter-10 inches)
5170322ICO-LB26Inlet Collar for LB2-6A (diameter-10 inches)
Others
5170352ABBV-10PAnti Blowback Valve
5170355ABBV-12SAnti Blowback Valve (304 Stainless Steel)
5170104B2-DamperManual Volumetric Exhaust Damper
5090001PF-2Prefilter, 565 X 500mm
