Frontier® Duo- B Series

EFD-B

Frontier® Duo- B Series

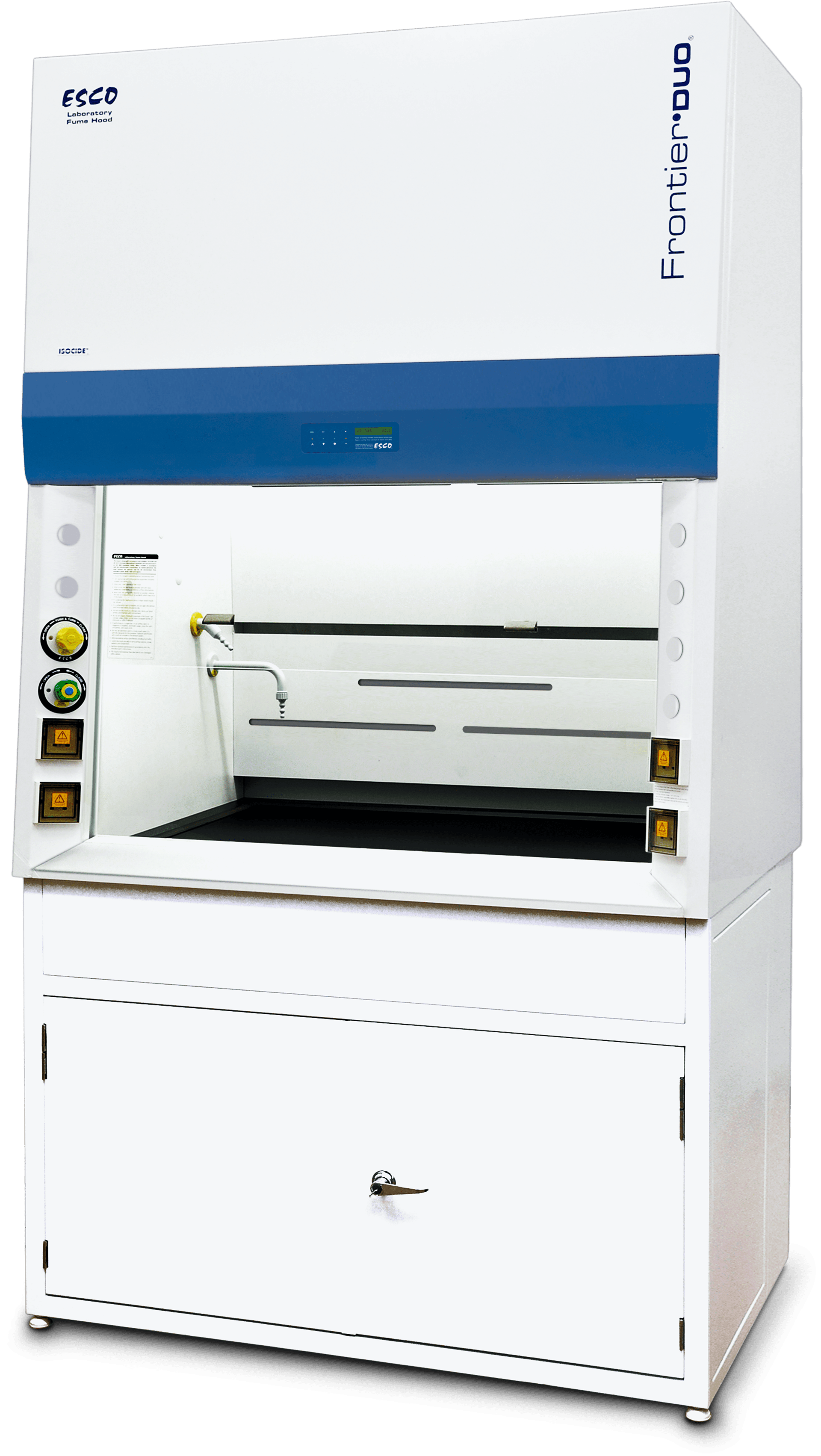

The Esco Frontier® Duo B series (EFD-B) ducted fume hood has a dual wall construction and is equipped with a microprocessor control system that shows continuous display of face velocity. This fume hood is designed to provide excellent fume containment and operator comfort.

Each EFD-B ducted fume hood comes standard with:

  • 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
  • 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
  • 4 x Single Electrical Outlet with Splash Proof Cover

Features

Sentinel™ Silver Microprocessor Control System

  • Displays basic parameters such as airflow on one screen
  • Has audible and visual alarms

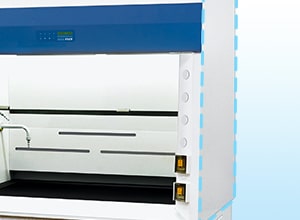

Dual Wall Construction

  • Rugged dual-wall construction allows service fixture remote controls and electrical outlets to be mounted outside the workzone within easy reach.
  • More durable compared to EFH model

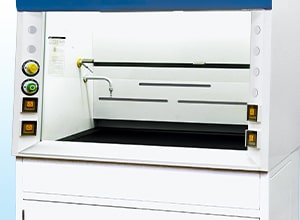

Sash Angled Front

  • 8° slope minimizes glares and reflections
  • Allows users to work further into the hood without strain

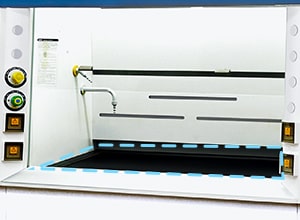

Built-in Worktop

  • Dished worktop provides spill retention and is made of phenolic resin

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
EFD-B (Sentinel™ Silver Microprocessor Control System)
2090105EFD-4B8 Esco Frontier® Duo Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2090103EFD-4B9 Esco Frontier® Duo Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz
2090114EFD-5B8 Esco Frontier® Duo Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz
2090113EFD-5B9 Esco Frontier® Duo Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz
2090312EFD-6B8 Esco Frontier® Duo Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz
2090124EFD-6B9 Esco Frontier® Duo Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz
2090132EFD-8B8 Esco Frontier® Duo Fume Hood, 8ft/2.4m, 220-240 VAC, 50/60 Hz
2090523EFD-8B9 Esco Frontier® Duo Fume Hood, 8ft/2.4m, 110-120 VAC, 50/60 Hz

Accessories

Item CodeModel CodeDescription
Service Fixture (Max of 2 add-ons)
5170268SFD-EWService Fixture Set for Water (Valve and Hose with Wall-Mounted Outlet)
5170267SFD-EGService Fixture Set for Gas (Valve and Hose with Wall-Mounted Outlet)
5170545SFD-EHService Fixture Set for Hydrogen (Valve and Hose with Wall-Mounted Outlet)
5170303SFD-EVService Fixture Set for Vacuum (Valve and Hose with Wall-Mounted Outlet)
5170302SFD-ENService Fixture Set for Nitrogen (Valve and Hose with Wall-Mounted Outlet)
5170546SFD-EOService Fixture Set for Oxygen (Valve and Hose with Wall-Mounted Outlet)
5170304SFD-ECService Fixture Set for Compressed Air (Valve and Hose with Wall-Mounted Outlet)
5170321SFD-EAService Fixture Set for Argon (Valve and Hose with Wall-Mounted Outlet)
Base Cabinet
2090044EBD-4A0Base Storage Cabinet, 4ft/1.2m - EBD
2090045EBD-5A0Base Storage Cabinet, 5ft/1.5m - EBD
2090046EBD-6A0Base Storage Cabinet, 6ft/1.8m - EBD
2090048EBD-8A0Base Storage Cabinet, 8ft/2.4m - EBD
Support Stand with Levelling Feet
5130074SFL-4B0Support Stand with Leveling Feet (Height 34”) for EFD-4
5130103SFL-5B0Support Stand with Leveling Feet (Height 34”) for EFD-5
5130076SFL-6B0Support Stand with Leveling Feet (Height 34”) for EFD-6
5130131SFL-8B0Support Stand with Leveling Feet (Height 34”) for EFD-8
Distillation Grid
5170401DG-084Distillation Grid for EFD-4 - SS304
5170402DG-094Distillation Grid for EFD-5 - SS304
5170403DG-104Distillation Grid for EFD-6 - SS304
5170404DG-124Distillation Grid for EFD-8 - SS304
Exhaust Blower
1110105EQR/FC-FAN-PP025PP025 Exhaust Fan
1110087EQR/FC-FAN-PP030PP030 Exhaust Fan
Others
5170271SPP-DCOval PP Drip-Cup
5170336MS313Small PP Sink (350mm x 350mm x 235mm)
5170363MS808Large PP Sink (562mm x 355mm x 227mm)
EOElectrical outlet
