Frontier® Mono

EFH

Frontier® Mono

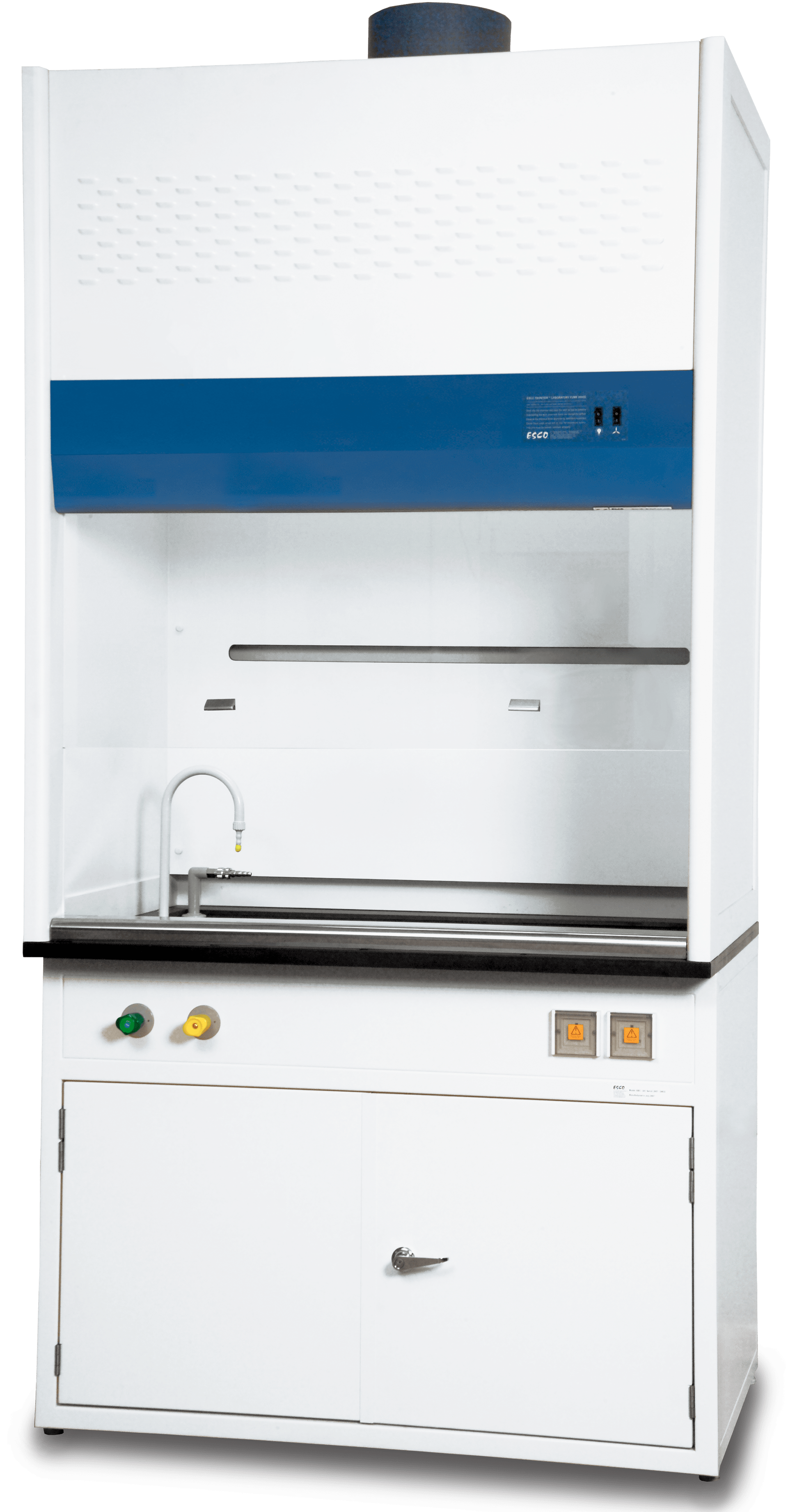

The Frontier® Mono (EFH) fume hood is the most basic of all Esco ducted fume hoods with a single wall construction designed for a fully maximized internal work zone. This ducted fume hood is generally applicable for common laboratory applications such as boiling, evaporation, drying, and other applications that emit noxious fumes and vapors.

Features

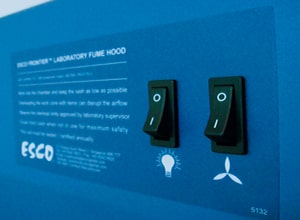

Rocker Switches

  • Easy to use buttons for operating the fume hood’s light and blower

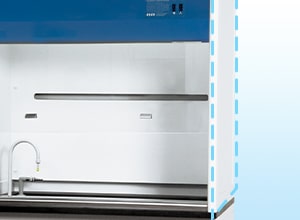

Single Wall Construction

  • Provides a fully maximized internal work zone
  • Constructed from E.G. Steel

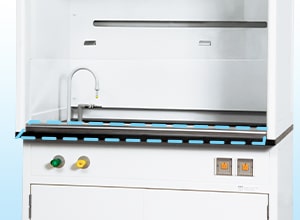

Aerodynamic Foil Entry

  • SS 304 airfoil safely ventilates fumes generated towards the back of  the hood for superior operator protection
  • Helps reduce turbulence and eliminate airflow

Bypass slots

  • Progressive Bypass Airflow System redistributes air intake when sash is closed, improves containment

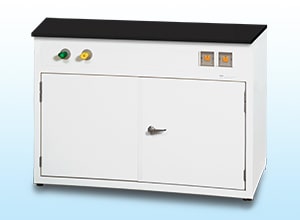

Base Cabinet

Each EBC comes standard with:

  1. 1 x Dished phenolic resin worktop
  2. 4 x Electrical socket outlets
  3. 1 x Swan-neck faucet
  4. 1 x PP Drip Cup located on left hand side of worktop
  5. 1 x Gas fitting

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
2090135EFH-4A8 Esco Frontier® Mono Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2090314EFH-4A9 Esco Frontier® Mono Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz
2090142EFH-5A8 Esco Frontier® Mono Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz
2090315EFH-5A9 Esco Frontier® Mono Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz
2090148EFH-6A8 Esco Frontier® Mono Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz
2090147EFH-6A9 Esco Frontier® Mono Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz

Accessories

Item CodeModel CodeDescription
Service Fixtures
5170270SFH-EWService Fixture Set for Water (Valve and Hose with Swan-neck Faucet)
5170269SFH-EGService Fixture Set for Gas (Valve and Hose with Quick Connect Coupling)
5170406SFH-EHService Fixture Set for Hydrogen (Valve and Hose with Quick Connect Coupling)
5170024SFH-EVService Fixture Set for Vacuum (Valve and Hose with Quick Connect Coupling)
5170021SFH-ENService Fixture Set for Nitrogen (Valve and Hose with Quick Connect Coupling)
5170440SFH-EOService Fixture Set for Oxygen (Valve and Hose with Quick Connect Coupling)
5170025SFH-ECService Fixture Set for Compressed Air (Valve and Hose with Quick Connect Coupling)
5170274SFH-EAService Fixture Set for Argon (Valve and Hose with Quick Connect Coupling)
Base Cabinets
2090049EBC-4A0Base Storage Cabinet with Standard Fittings, 4ft/1.2m - EBC
2090053EBC-5A0Base Storage Cabinet with Standard Fittings, 5ft/1.5m - EBC
2090522EBC-6A0Base Storage Cabinet with Standard Fittings, 6ft/1.8m - EBC
Exhaust Blower
1110105EQR/FC-FAN-PP025PP025 Exhaust Fan
1110087EQR/FC-FAN-PP030PP030 Exhaust Fan
Others
5170271SPP-DCOval PP Drip-Cup
5170336MS313Small PP Sink (350mm x 350mm x 235mm)
5170363MS808Large PP Sink (562mm x 355mm x 227mm)
EOElectrical Outlet
