EFQ

Frontier^® Acid Digestion

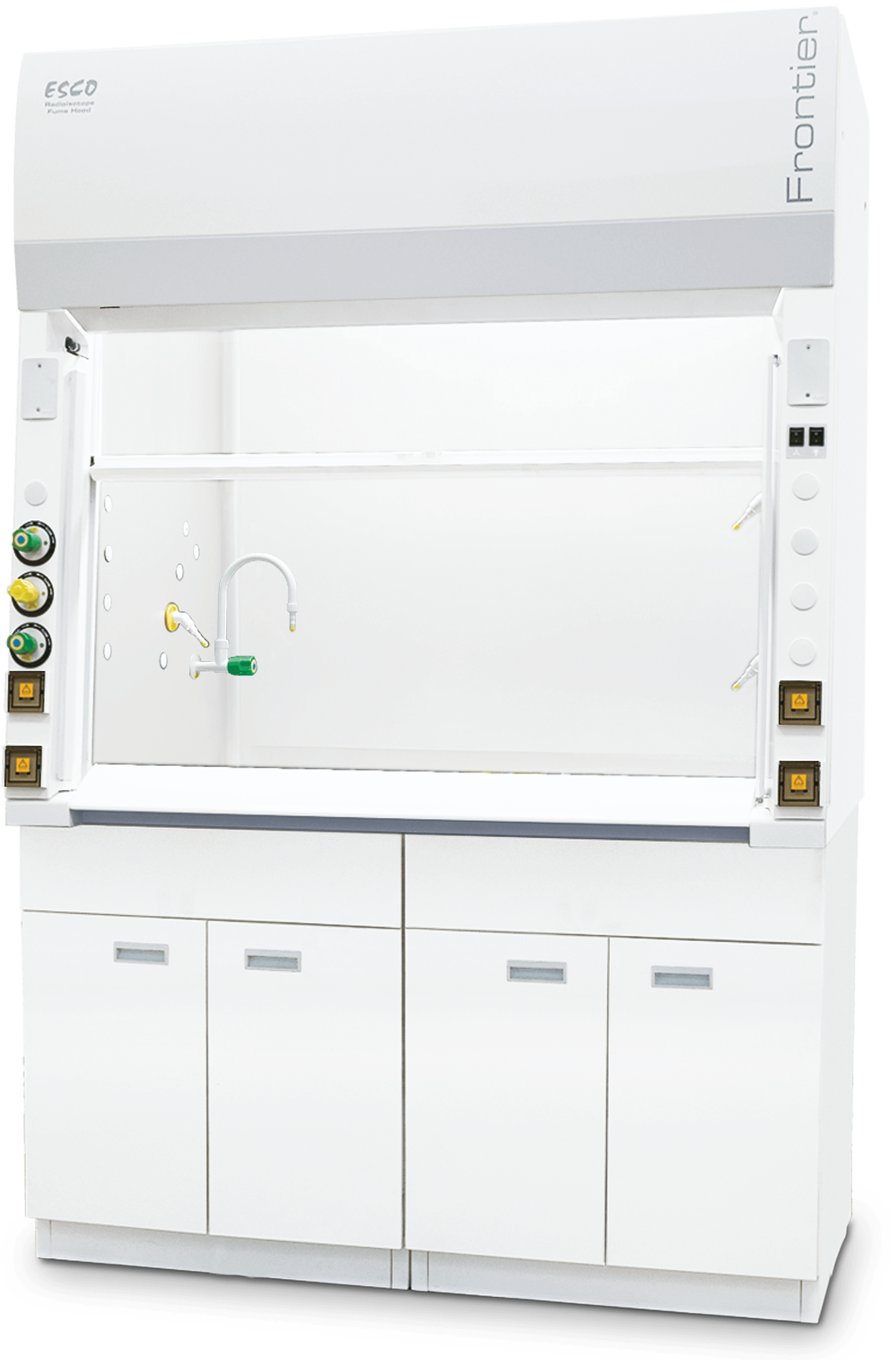

Esco Frontier^® Acid Digestion Fume Hood (EFQ) is a ducted fume hood designed for performing acid digestion or dealing with chemicals at high temperatures. This ducted fume hood is not suitable for handling perchloric acid applications.

Each EFQ Fume Hood comes standard with:

1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
1 x PP Drip Cup located on left hand side of worktop
1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
4 x Single Electrical Outlet with Splash Proof Cover
1 x Smooth Single Piece u-PVC/PP Worksurface

*This cabinet requires an external blower (sold separately)

Request for Quote Online Product Form

Features

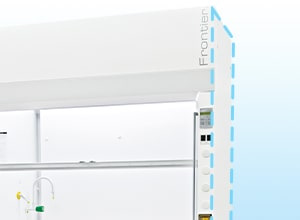

	Tri-Wall Construction Triple layer for maximum robustness and durability

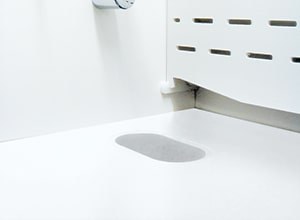

	U-PVC or PP Internal Chamber Unplasticised polyvinylchloride (u-PVC) or polypropylene (PP) internal surfaces is used due to its ability to withstand reaction from strong and corrosive acids

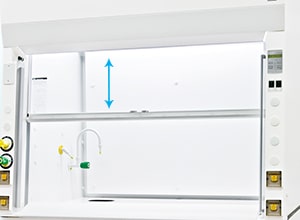

	Sash Angled Front and Polycarbonate sash 5° slope minimizes glares and reflections Allows users to work further into the hood without strain Polycarbonate sash is used as glass is easily etched by hydrofluoric acid.
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
EFQ with u-PVC Liner and Vertical Sash
2090066	EFQ-4UDCVW-8	Esco Frontier^® Acid Digestion Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2090050	EFQ-4UDCVW-9	Esco Frontier^® Acid Digestion Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz
2090246	EFQ-5UDCVW-8	Esco Frontier^® Acid Digestion Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz
2090536	EFQ-5UDCVW-9	Esco Frontier^® Acid Digestion Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz
2090264	EFQ-6UDCVW-8	Esco Frontier^® Acid Digestion Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz
2090537	EFQ-6UDCVW-9	Esco Frontier^® Acid Digestion Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz
2040191	EFQ-8UDCVW-8	Esco Frontier^® Acid Digestion Fume Hood, 8ft/2.4m, 220-240 VAC, 50/60 Hz
2090327	EFQ-8UDCVW-9	Esco Frontier^® Acid Digestion Fume Hood, 8ft/2.4m, 110-120 VAC, 50/60 Hz
EFQ with u-PVC Liner and Combination Sash
2090239	EFQ-4UDCCW-8	Esco Frontier^® Acid Digestion Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2090201	EFQ-4UDCCW-9	Esco Frontier^® Acid Digestion Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz
2090245	EFQ-5UDCCW-8	Esco Frontier^® Acid Digestion Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz
2090534	EFQ-5UDCCW-9	Esco Frontier^® Acid Digestion Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz
2090212	EFQ-6UDCCW-8	Esco Frontier^® Acid Digestion Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz
2090535	EFQ-6UDCCW-9	Esco Frontier^® Acid Digestion Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz
EFQ with PP Liner and Vertical Sash
2090035	EFQ-4UDPVW-8	Esco Frontier^® Acid Digestion Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2090328	EFQ-4UDPVW-9	Esco Frontier^® Acid Digestion Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz
2090036	EFQ-5UDPVW-8	Esco Frontier^® Acid Digestion Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz
2090541	EFQ-5UDPVW-9	Esco Frontier^® Acid Digestion Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz
2090037	EFQ-6UDPVW-8	Esco Frontier^® Acid Digestion Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz
2090270	EFQ-6UDPVW-9	Esco Frontier^® Acid Digestion Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz
2090038	EFQ-8UDPVW-8	Esco Frontier^® Acid Digestion Fume Hood, 8ft/2.4m, 220-240 VAC, 50/60 Hz
2090542	EFQ-8UDPVW-9	Esco Frontier^® Acid Digestion Fume Hood, 8ft/2.4m, 110-120 VAC, 50/60 Hz
EFQ with PP Liner and Combination sash
2090030	EFQ-4UDPCW-8	Esco Frontier^® Acid Digestion Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2090538	EFQ-4UDPCW-9	Esco Frontier^® Acid Digestion Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz
2090022	EFQ-5UDPCW-8	Esco Frontier^® Acid Digestion Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz
2090539	EFQ-5UDPCW-9	Esco Frontier^® Acid Digestion Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz
2090031	EFQ-6UDPCW-8	Esco Frontier^® Acid Digestion Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz
2090540	EFQ-6UDPCW-9	Esco Frontier^® Acid Digestion Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz

Accessories

Item Code	Model Code	Description
Service Fixture (Max of 6 add-ons, factory fitted)
5170266	SFA-EW	Service Fixture Set for Water
5170408	SFA-EHW	Service Fixture Set for Hot Water
5170416	SFA-EDI	Service Fixture Set for DI Water
5170406	SFA-EH	Service Fixture Set for Hydrogen
5170265	SFA-EG	Service Fixture Set for Gas
5170306	SFA-EV	Service Fixture Set for Vacuum
5170313	SFA-EN	Service Fixture Set for Nitrogen
5170440	SFA-EO	Service Fixture Set for Oxygen
5170275	SFA-EC	Service Fixture Set for Compressed Air
5170433	SFA-ECO2	Service Fixture Set for CO₂
5170274	SFA-EA	Service Fixture Set for Argon
Base Cabinet
2090153	EBA-4UDG-0	EBA Base Cabinet for 4' Fume Hood
2090157	EBA-5UDG-0	EBA Base Cabinet for 5' Fume Hood
2090161	EBA-6UDG-0	EBA Base Cabinet for 6' Fume Hood
2090163	EBA-8UDG-0	EBA Base Cabinet for 8' Fume Hood
5170022	VK-EBA	Vent Kit for EBA Base Cabinet (1 Required for 4' Base Cabinet and 2 for Other Sizes), Field Installed
5170023	FP-EBAD	Filler Panel Kit for EBA Base Cabinet, Set of 2 (Left and Right), Field Installed
Flammable and Corrosive Base Cabinets (Justrite)
2090611	884820	Flammable Storage Cabinet, 48" (Yellow, Self-Close) with Lock & Key, for EFA-4
2090612	8849022	Corrosive Storage Cabinet, 48" (Blue) with Lock & Key, for EFA-4
2090613	883020	Flammable Storage Cabinet, 2x30" (Yellow, Self-Close) with Lock & Key, for EFA-5
2090614	8831022	Corrosive Storage Cabinet, 2x30" (Blue) with Lock & Key, for EFA-5
2090615	883620	Flammable Storage Cabinet, 2x36" (Yellow, Self-Close) with Lock & Key, for EFA-6
2090616	8837022	Corrosive Storage Cabinet, 2x36" (Blue) with Lock & Key, for EFA-6
Support Stand with Levelling Feet
5130088	ASL-4B0	Support Stand with Leveling Feet (Height 35.6”) for EFA-4
5130089	ASL-5B0	Support Stand with Leveling Feet (Height 35.6”) for EFA-5
5130090	ASL-6B0	Support Stand with Leveling Feet (Height 35.6”) for EFA-6
5130094	ASL-8B0	Support Stand with Leveling Feet (Height 35.6”) for EFA-8
Exhaust Blower
1110105	EQR/FC-FAN-PP025	PP025 Exhaust Fan
1110087	EQR/FC-FAN-PP030	PP030 Exhaust Fan
