Frontier® Acela

EFA

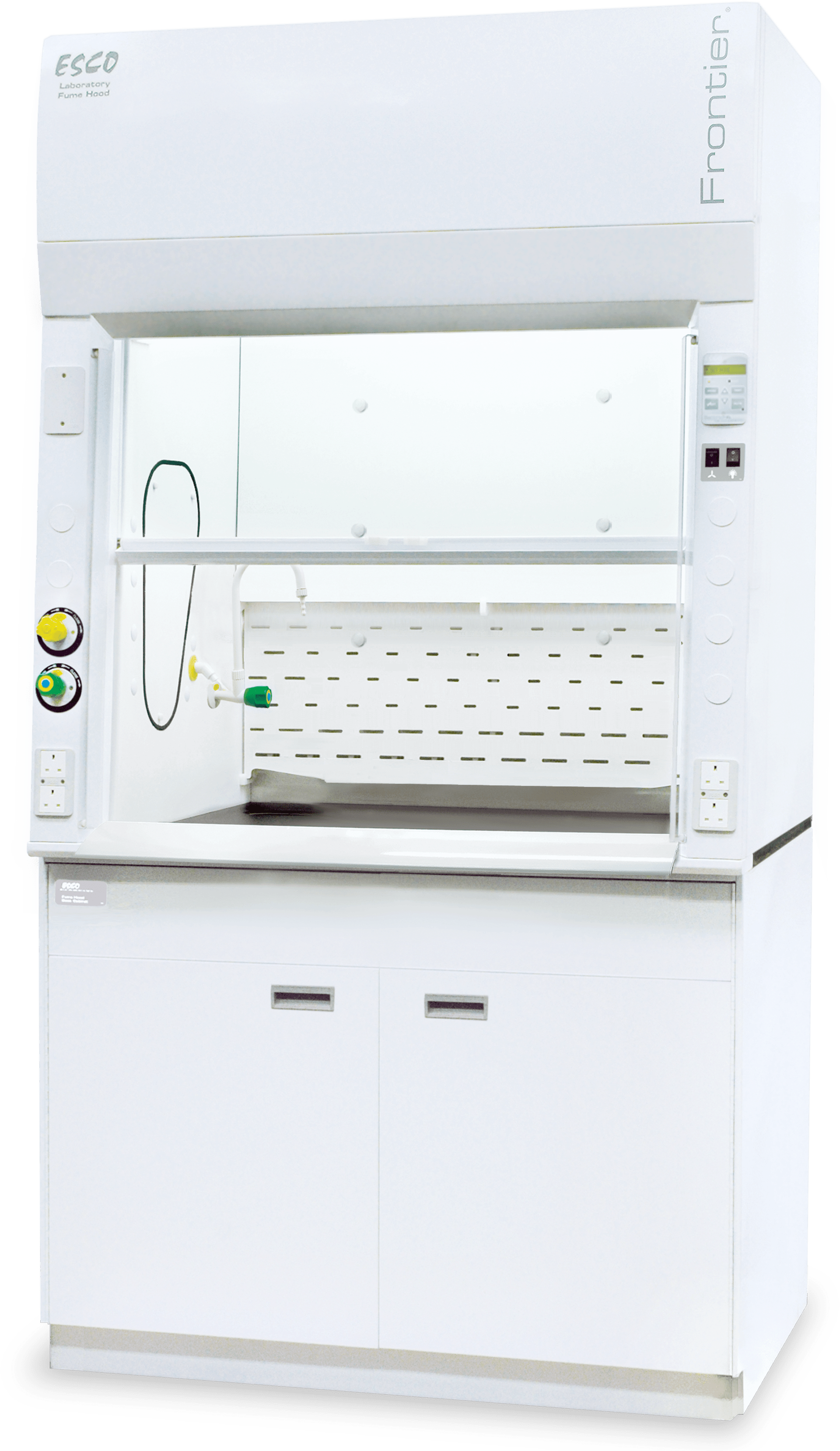

Frontier® Acela

Esco Frontier® Acela™ (EFA) a high-performance, low-flow, ducted fume hood designed with precisely tuned aerodynamics, outstanding user safety, design flexibility, energy-efficiency, and aesthetics. A conventional laboratory fume hood that let’s you save while keeping you safe.

Each EFA Fume Hood comes standard with:

  • 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
  • 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
  • 4 x Single Electrical Outlet with Splash Proof Cover

Features

Tri-Wall Construction

  • Triple layer for maximum robustness and durability

High Sight Line

  • High sight line of 857 mm (33.7”) for enhanced visibility.

Sash Angled Front

  • 5° slope minimizes glares and reflections
  • Allows users to work further into the hood without strain

Hot Zone Baffles

  • The unique Hot Zone Baffle design draws most contaminants back in single pass displacement of the air.
  • Thermal heat relief is quickly achieved.

Worktop Options

  • Multiple worktop options allows more applications to be done
  • Standard worktop is phenolic resin
  • Options include: Epoxy resin, Ceramic, SS 304, SS 316

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
EFA with Esco Resinate Liner and Vertical Sash
2090004EFA-4UDRVW-8Esco Frontier® Acela Fume Hood, 4ft/1.2m 220-240 VAC, 50/60 Hz
2090193EFA-4UDRVW-9Esco Frontier® Acela Fume Hood, 4ft/1.2m 110-120 VAC, 50/60 Hz
2090014EFA-5UDRVW-8Esco Frontier® Acela Fume Hood, 5ft/1.5m 220-240 VAC, 50/60 Hz
2090207EFA-5UDRVW-9Esco Frontier® Acela Fume Hood, 5ft/1.5m 110-120 VAC, 50/60 Hz
2090023EFA-6UDRVW-8Esco Frontier® Acela Fume Hood, 6ft/1.8m 220-240 VAC, 50/60 Hz
2090208EFA-6UDRVW-9Esco Frontier® Acela Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz
2090223EFA-8UDRVW-8Esco Frontier® Acela Fume Hood, 8ft/2.4m, 220-240 VAC, 50/60 Hz
2090501EFA-8UDRVW-9Esco Frontier® Acela Fume Hood, 8ft/2.4m, 110-120 VAC, 50/60 Hz
EFA with Esco Resinate Liner and Combination Sash
2090005EFA-4UDRCW-8Esco Frontier® Acela Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2090346EFA-4UDRCW-9Esco Frontier® Acela Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz
2090015EFA-5UDRCW-8Esco Frontier® Acela Fume Hood, 5ft/1.5m 220-240 VAC, 50/60 Hz
2090063EFA-5UDRCW-9Esco Frontier® Acela Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz
2090024EFA-6UDRCW-8Esco Frontier® Acela Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz
2090263EFA-6UDRCW-9Esco Frontier® Acela Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz

Accessories

Item CodeModel CodeDescription
Service Fixture (Max of 6 add-ons, factory fitted)
5170266SFA-EWService Fixture Set for Water
5170408SFA-EHWService Fixture Set for Hot Water
5170416SFA-EDIService Fixture Set for DI Water
5170406SFA-EHService Fixture Set for Hydrogen
5170265SFA-EGService Fixture Set for Gas
5170306SFA-EVService Fixture Set for Vacuum
5170313SFA-ENService Fixture Set for Nitrogen
5170440SFA-EOService Fixture Set for Oxygen
5170275SFA-ECService Fixture Set for Compressed Air
5170433SFA-ECO2Service Fixture Set for CO2
5170274SFA-EAService Fixture Set for Argon
Base Cabinet
2090153EBA-4UDG-0EBA Base Cabinet for 4' Fume Hood
2090157EBA-5UDG-0EBA Base Cabinet for 5' Fume Hood
2090161EBA-6UDG-0EBA Base Cabinet for 6' Fume Hood
2090163EBA-8UDG-0EBA Base Cabinet for 8' Fume Hood
5170022VK-EBAVent Kit for EBA Base Cabinet (1 Required for 4' Base Cabinet and 2 for Other Sizes), Field Installed
5170023FP-EBADFiller Panel Kit for EBA Base Cabinet, Set of 2 (Left and Right), Field Installed
Flammable and Corrosive Base Cabinets (Justrite)
2090611884820Flammable Storage Cabinet, 48" (Yellow, Self-Close) with Lock & Key, for EFA-4
20906128849022Corrosive Storage Cabinet, 48" (Blue) with Lock & Key, for EFA-4
2090613883020Flammable Storage Cabinet, 2x30" (Yellow, Self-Close) with Lock & Key, for EFA-5
20906148831022Corrosive Storage Cabinet, 2x30" (Blue) with Lock & Key, for EFA-5
2090615883620Flammable Storage Cabinet, 2x36" (Yellow, Self-Close) with Lock & Key, for EFA-6
20906168837022Corrosive Storage Cabinet, 2x36" (Blue) with Lock & Key, for EFA-6
Support Stand with Levelling Feet
5130088ASL-4B0Support Stand with Leveling Feet (Height 35.6”) for EFA-4
5130089ASL-5B0Support Stand with Leveling Feet (Height 35.6”) for EFA-5
5130090ASL-6B0Support Stand with Leveling Feet (Height 35.6”) for EFA-6
5130094ASL-8B0Support Stand with Leveling Feet (Height 35.6”) for EFA-8
Distillation Grid
5170135DG-4USDistillation Grid Kit for EFA-4, SS304
5170136DG-5USDistillation Grid Kit for EFA-5, SS304
5170137DG-6USDistillation Grid Kit for EFA-6, SS304
5170138DG-8USDistillation Grid Kit for EFA-8, SS304
Exhaust Blower
1110105EQR/FC-FAN-PP025PP025 Exhaust Fan
1110087EQR/FC-FAN-PP030PP030 Exhaust Fan
Others
5170271SPP-DCOval PP Drip-Cup
5170359SIC-DCOval Ceramic Drip-Cup for Ceramic Worktop
5170336MS313Small PP Sink (350mm x 350mm x 235mm)
5170363MS808Large PP Sink (562mm x 355mm x 227mm)
5070084SXL-EFASentinel XL Airflow Monitor, Field Installed
EOElectrical outlet
