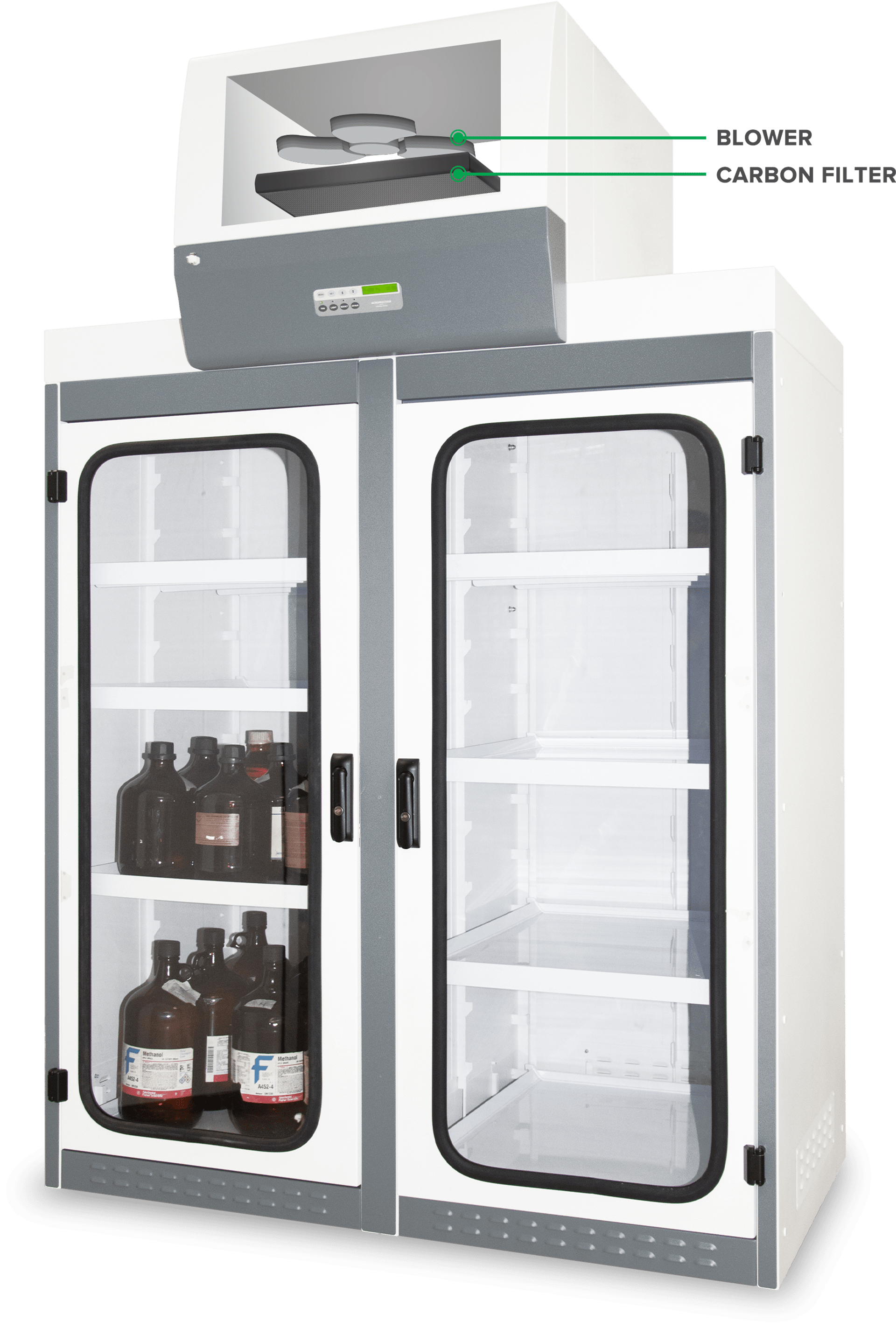

Ascent™ Filtered Storage Cabinet - A Series

Fumes from chemical containers often result in the storage cabinet’s corrosion and contaminated air in the laboratory. Ascent™ storage cabinet (ASC) is ideal in providing a safe and convenient storage solution. The ASC-A series cabinet is equipped with Nanocarb™ filters that effectively adsorb chemical fumes to provide operator and environment protection.

Each ASC comes standard with:

VOC Sensor
Sentinel™ Microprocessor Control
Polypropylene Trays

Request for Quote Online Product Form

Features

	Sentinel™ Microprocessor Control System Supervises operation of all hood functions. User-friendly microprocessor control system equipped with enhanced features to promote cabinet usability.
	Filtration System Main Filter: Nanocarb™ activated carbon filter, 8 types available Quick-change out filter clamping mechanism allows filter replacements to be carried out with minimal tools; even filter clamping prevents leaks from occurring.
	Acrylic doors with lock and alarms Key and lock restricts access for safe inventory Doors are equipped with alarms to notify users if doors are left opened.
	PP trays Constructed from Polypropylene material which is chemical resistant Each tray can carry up to 40 kg
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
220-240 VAC, 50/60 Hz
2040293	ASC-2A8	Ascent^® Storage Cabinet - With Main Carbon Filter, 2ft/0.6m
2040317	ASC-4A8	Ascent^® Storage Cabinet - With Main Carbon Filter, 4ft/1.2m
2040319	ASC-6A8	Ascent^® Storage Cabinet - With Main Carbon Filter, 6ft/1.8m
110-120 VAC, 50/60 Hz
2040297	ASC-2A9	Ascent^® Storage Cabinet - With Main Carbon Filter, 2ft/0.6m
2040318	ASC-4A9	Ascent^® Storage Cabinet - With Main Carbon Filter, 4ft/1.2m
2040320	ASC-6A9	Ascent^® Storage Cabinet - With Main Carbon Filter, 6ft/1.8m

Accessories

Item Code	Model Code	Description
Carbon Filters for ASC
5080003	CFA-11	Code A Standard Filter - 425mm x 520mm x 65mm
5080095	CFB-11	Code B Acid Filter - 425mm x 520mm x 65mm
5080028	CFC-11	Code C Mercury Filter - 425mm x 520mm x 65mm
5080039	CFD-11	Code D Sulphur Filter - 425mm x 520mm x 65mm
5080050	CFE-11	Code E Halogen Filter - 425mm x 520mm x 65mm
5080061	CFF-11	Code F Aldehyde Filter - 425mm x 520mm x 65mm
5080072	CFG-11	Code G Ammonia/Amines Filter - 425mm x 520mm x 65mm
5080104	CFH-11	Code H Chloroform/Ether Filter - 425mm x 520mm x 65mm
PP Trays
5021370	NA	Polypropylene Tray, 600 x 600 mm (23.6" x 23.6"), 2pcs/set
