Ascent™ Filtered Storage Cabinet (E Series)

ASC-_E_

Ascent™ Filtered Storage Cabinet - E Series

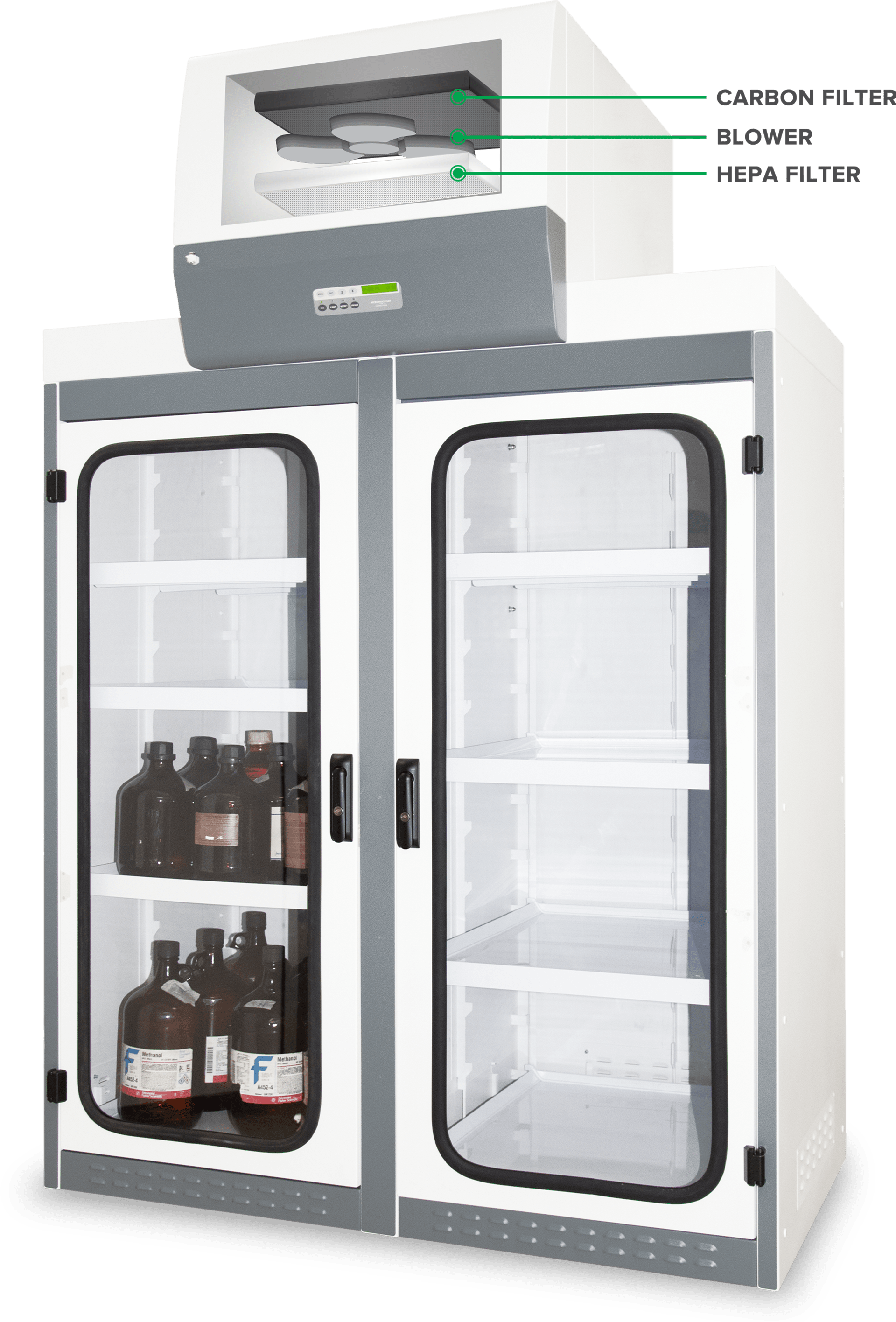

Ascent™ filtered storage cabinet E Series (ASC-E) is suitable for laboratories storing large amount of solid chemicals and solvents. This filtered storage cabinet is equipped with a main HEPA filter for removal of chemical granules or particles and has a secondary carbon filter for removal of toxic fumes generated from the chemical bottles.

Each ASC comes standard with:

  • VOC Sensor
  • Sentinel™ Microprocessor Control
  • Polypropylene Trays

Features

Sentinel™ Microprocessor Control System

  • Supervises operation of all hood functions.
  • User-friendly microprocessor control system equipped with enhanced features to promote cabinet usability.

Filtration System

  • Main Filter: HEPA
  • Secondary Filter: Nanocarb™ activated carbon filter, 8 types available
  • Quick-change out filter clamping mechanism allows filter replacements to be carried out with minimal tools; even filter clamping prevents leaks from occurring.

Acrylic doors with lock and alarms

  • Key and lock restricts access for safe inventory
  • Doors are equipped with alarms to notify users if doors are left opened.

PP trays

  • Constructed from Polypropylene material which is chemical resistant
  • Each tray can carry up to 40 kg

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
220-240 VAC, 50/60 Hz
2040328ASC-2E8Ascent® Storage Cabinet - With Main HEPA Filter & Secondary Backup Carbon Filter, 2ft/0.6m
2040286ASC-4E8Ascent® Storage Cabinet - With Main HEPA Filter & Secondary Backup Carbon Filter, 4ft/1.2m
2040331ASC-6E8Ascent® Storage Cabinet - With Main HEPA Filter & Secondary Backup Carbon Filter, 6ft/1.8m
110-120 VAC, 50/60 Hz
2040330ASC-2E9Ascent® Storage Cabinet - With Main HEPA Filter & Secondary Backup Carbon Filter, 2ft/0.6m
2040290ASC-4E9Ascent® Storage Cabinet - With Main HEPA Filter & Secondary Backup Carbon Filter, 4ft/1.2m
2040332ASC-6E9Ascent® Storage Cabinet - With Main HEPA Filter & Secondary Backup Carbon Filter, 6ft/1.8m

Accessories

Item CodeModel CodeDescription
Carbon Filters for ASC
5080003CFA-11Code A Standard Filter - 425mm x 520mm x 65mm
5080095CFB-11Code B Acid Filter - 425mm x 520mm x 65mm
5080028CFC-11Code C Mercury Filter - 425mm x 520mm x 65mm
5080039CFD-11Code D Sulphur Filter - 425mm x 520mm x 65mm
5080050CFE-11Code E Halogen Filter - 425mm x 520mm x 65mm
5080061CFF-11Code F Aldehyde Filter - 425mm x 520mm x 65mm
5080072CFG-11Code G Ammonia/Amines Filter - 425mm x 520mm x 65mm
5080104CFH-11Code H Chloroform/Ether Filter - 425mm x 520mm x 65mm
PP Trays
5021370NAPolypropylene Tray, 600 x 600 mm (23.6" x 23.6"), 2pcs/set
