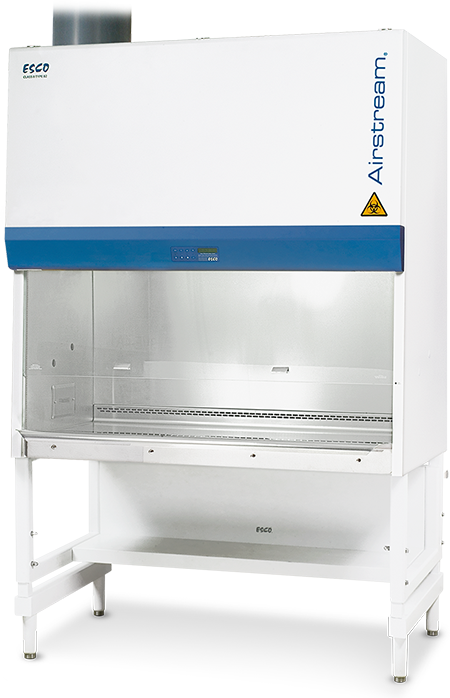

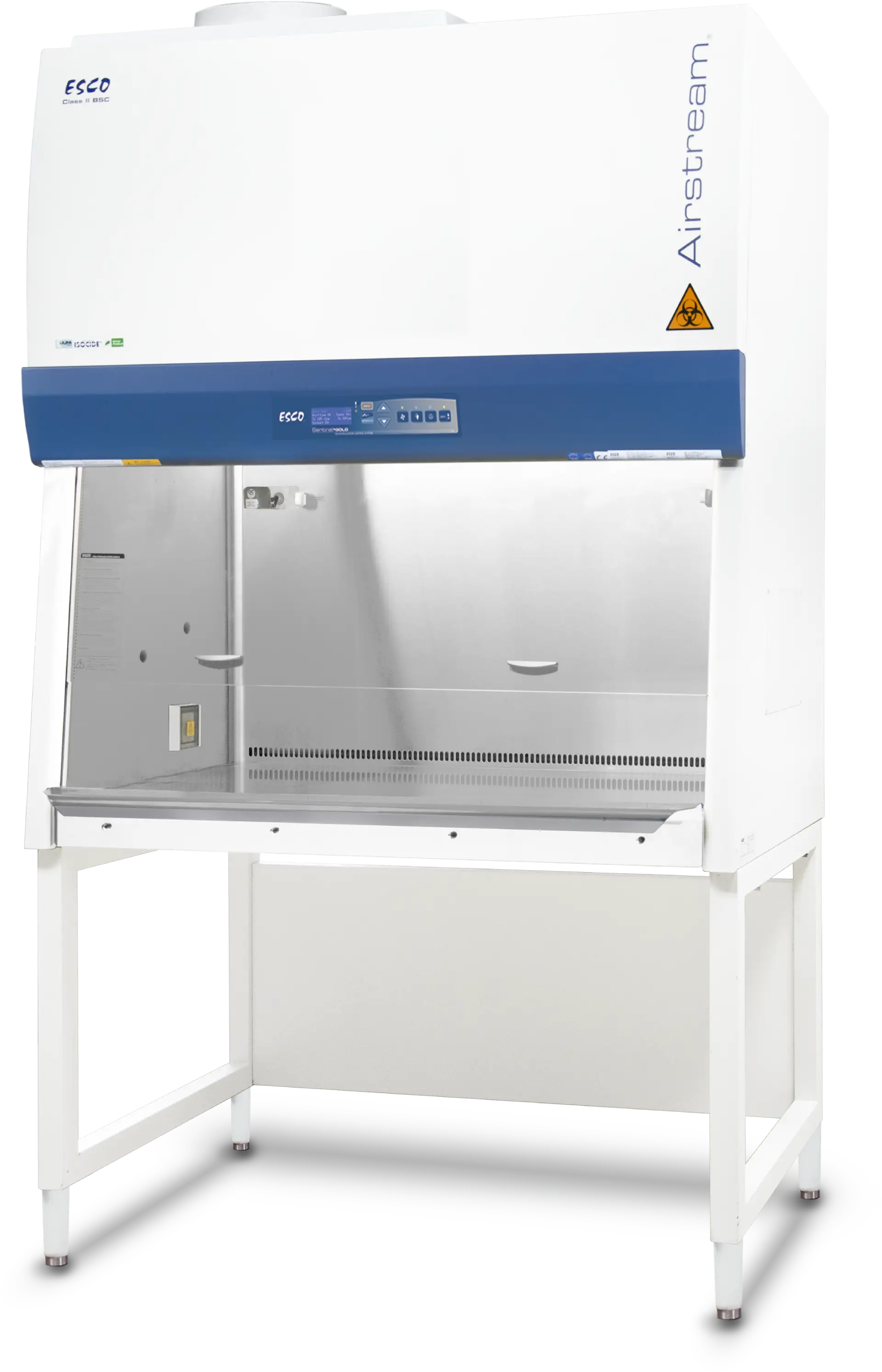

Airstream^® Class II Type B2 (Total Exhaust) Biosafety Cabinets

Airstream® Class II Type B2 Biosafety Cabinets (AB2) provide product, operator and environmental protection and are suitable for work with trace amounts of toxic chemicals and agents assigned to biological safety levels I, II or III. In a Class II Type B2 cabinet, all inflow and downflow air is exhausted after HEPA/ULPA filtration to the external environment without recirculation across the work surface.

*This cabinet requires an external blower

Request for Quote

Features

	Sentinel™ Gold Microprocessor Control system Displays all safety information on one screen Centered and angled down for easy reach & viewing Selectable Quickstart mode for fast operation

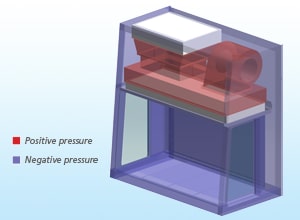

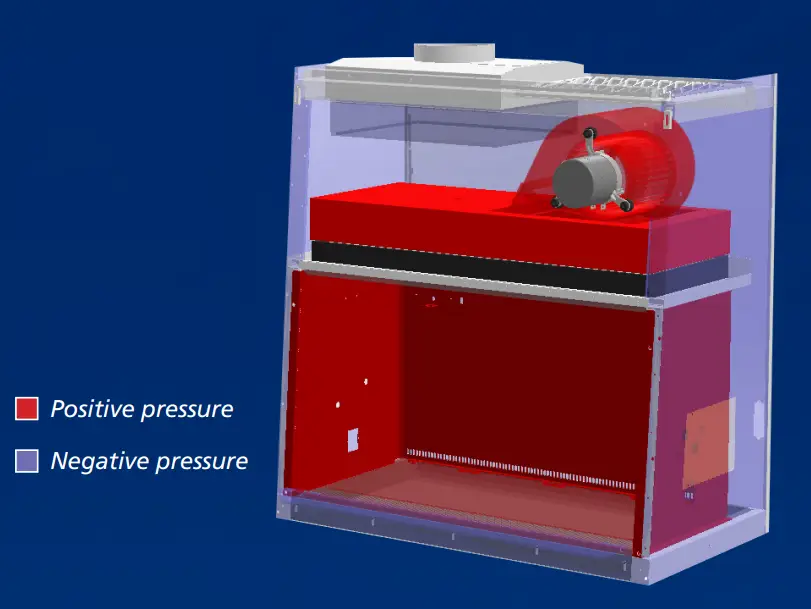

	Esco Dynamic Chamber This plenum design delivers quiet and uniform airflow

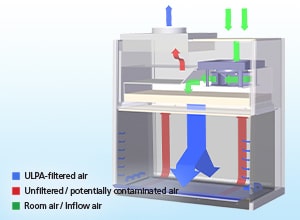

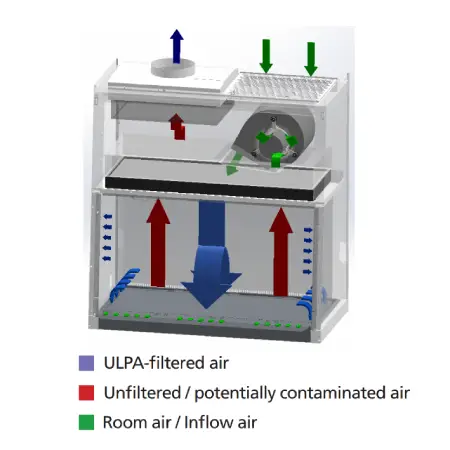

	Advanced Filtration System 10x filtration efficiency compared to the HEPA filter Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5 Same 10 years filter life and replacement cost as HEPA filters
	Single-piece Internal work zone Large radius for easy cleaning Eliminates welded joints to prevent accumulation of contaminants
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
220-240 VAC, 50/60 Hz
2011443	AB2-3S8	Airstream® Class II, B2 Biological Safety Cabinet, 3ft/0.9m
2011448	AB2-4S8	Airstream® Class II, B2 Biological Safety Cabinet, 4ft/1.2m
2011449	AB2-5S8	Airstream® Class II, B2 Biological Safety Cabinet, 5ft/1.5m
2011450	AB2-6S8	Airstream® Class II, B2 Biological Safety Cabinet, 6ft/1.8m
110-120 VAC, 50/60 Hz
2011693	AB2-3S9	Airstream® Class II, B2 Biological Safety Cabinet, 3ft/0.9m
2011694	AB2-4S9	Airstream® Class II, B2 Biological Safety Cabinet, 4ft/1.2m
2011695	AB2-5S9	Airstream® Class II, B2 Biological Safety Cabinet, 5ft/1.5m
2011696	AB2-6S9	Airstream® Class II, B2 Biological Safety Cabinet, 6ft/1.8m

Accessories

Item Code	Model Code	Description
5170251	UV-15A	UV Lamp for 2ft, 3ft Cabinets and AC3-4B
5170255	UV-30A	UV Lamp for 4ft, 5ft, 6ft Cabinets except AC3-4B
Service Fixtures
5170410	SF-1G20	European Style Service Fixture with 20mm Thread Length - Gas
5170457	SF-1V20	European Style Service Fixture with 20mm Thread Length - Vacuum
5170503	SF-1N20	European Style Service Fixture with 20mm Thread Length - Nitrogen
5170502	SF-1A20	European Style Service Fixture with 20mm Thread Length - Air
5170458	SF-1W20	European Style Service Fixture with 20mm Thread Length - Water
5170504	SF-2U22	American Style Service Fixture with 22mm Thread Length - Universal
5170026	CU-Pipe	Copper Piping for Service Fixture - Must be Factory Installed (required if SL-VALVE is ordered)
Support Stands
5130155	SPC-3A0 Gen2	Support Stand with Caster Wheels (Height 28”), 3ft/0.9m
5130152	SPC-4A0 Gen2	Support Stand with Caster Wheels (Height 28”), 4ft/1.2m
5130162	SPC-5A0 Gen2	Support Stand with Caster Wheels (Height 28”), 5ft/1.5m
5130154	SPC-6A0 Gen2	Support Stand with Caster Wheels (Height 28”), 6ft/1.8m
5130165	SPC-3B0 Gen 2	Support Stand with Caster Wheels (Height 34”), 3ft/0.9m
5130166	SPC-4B0 Gen 2	Support Stand with Caster Wheels (Height 34”), 4ft/1.2m
5130167	SPC-5B0 Gen 2	Support Stand with Caster Wheels (Height 34”), 5ft/1.5m
5130168	SPC-6B0 Gen 2	Support Stand with Caster Wheels (Height 34”), 6ft/1.8m
5130170	SAL-3A0 Gen 2	Support Stand with Leveling Feet - I (Height 28”), 3ft/0.9m
5130134	SAL-4A0 Gen 2	Support Stand with Leveling Feet - I (Height 28”), 4ft/1.2m
5130171	SAL-5A0 Gen 2	Support Stand with Leveling Feet - I (Height 28”), 5ft/1.5m
5130172	SAL-6A0 Gen 2	Support Stand with Leveling Feet - I (Height 28”), 6ft/1.8m
5130174	SAL-3B0 Gen 2	Support Stand with Leveling Feet - I (Height 34”), 3ft/0.9m
5130175	SAL-4B0 Gen 2	Support Stand with Leveling Feet - I (Height 34”), 4ft/1.2m
5130176	SAL-5B0 Gen 2	Support Stand with Leveling Feet - I (Height 34”), 5ft/1.5m
5130177	SAL-6B0 Gen 2	Support Stand with Leveling Feet - I (Height 34”), 6ft/1.8m
IV Bars
5170499	IV-910	IV Bar 910 mm
5170231	IV-1215	IV Bar 1215 mm
5170500	IV-1520	IV Bar 1520 mm
5170501	IV-1825	IV Bar 1825 mm
Others
5170353	ABBV-12P	Anti Blowback Valve, 12" diameter, EG Material
5170355	ABBV-12S	Anti Blowback Valve, 12" diameter, SS Material
5170105	B2-Damper	Manual Volumetric Exhaust Damper, 12"
	IQ/OQ Protocol
